5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Pistons And Conn. Rods

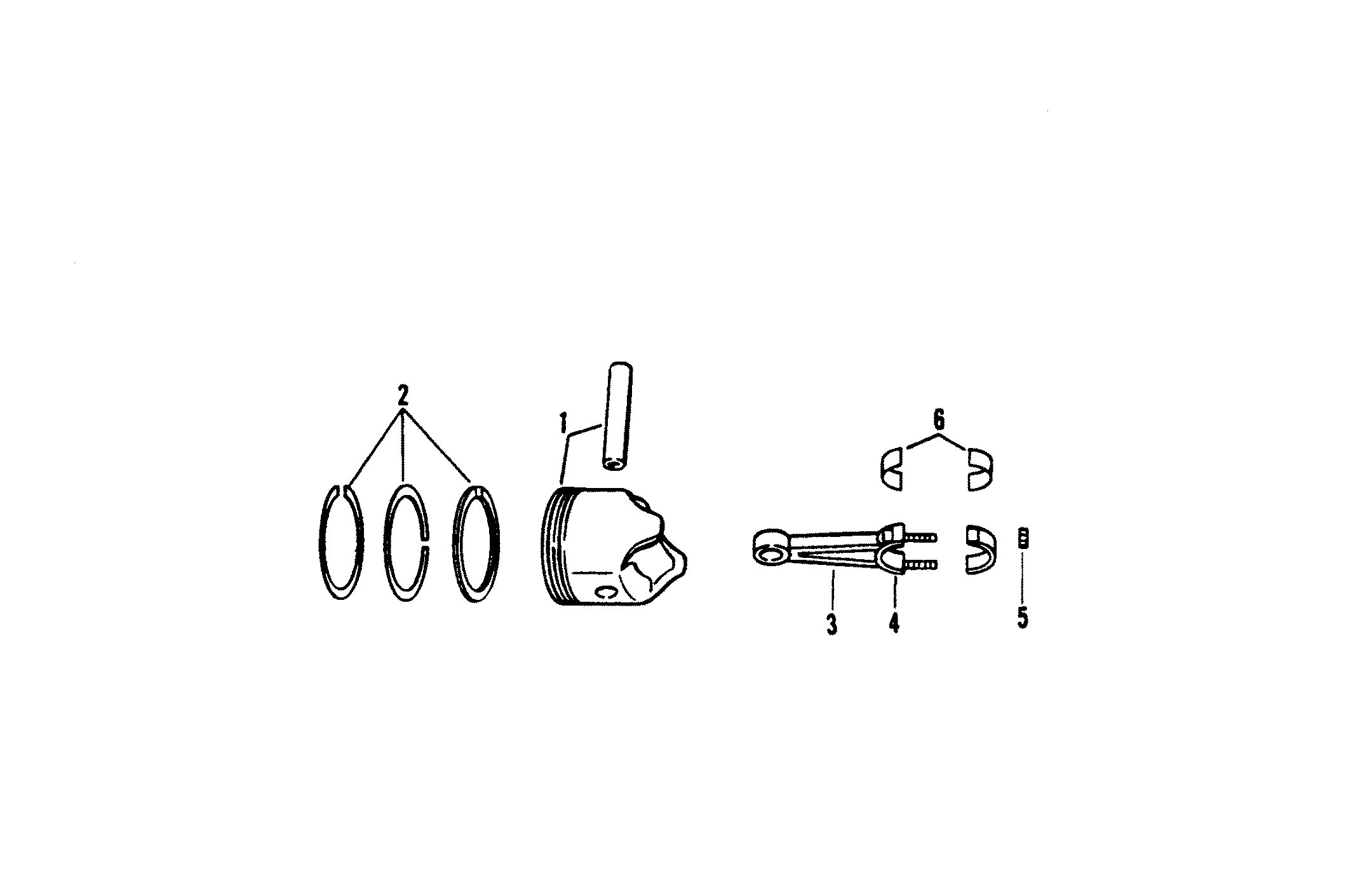

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distribitor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (Alpha)
- Exhaust Manifold And Exhaust Elbow (Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Pistons And Conn. Rods
- Power Steering Components
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Starter Motor
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI) (Illustration Only)
- Wiring Harness (Engine) (Illustration Only)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 735-850097 | PISTON/PISTON PIN (STANDARD) | 8 | 735-808674 | |||||
| 1 | 735-850098 | PISTON/PISTON PIN (.030 O.S.) | AR | 735-9687 | |||||
| 2 | 39-801861 | PISTON RING (STANDARD) | 8 | This Part is No Longer Available | |||||
| 2 | 39-17465 | PISTON RING (.030 O.S.) | AR | ||||||
| 3 | 614-8164T | CONNECTING ROD | 8 | 614-8164 | |||||
| 4 | 10-85802 | BOLT | 16 | This Part is No Longer Available | |||||
| 5 | 11-37493 | NUT | 16 | ||||||
| 6 | 23-85701 | BEARING UNIT (PAIR - STANDARD) | 8 | ||||||
| 6 | 23-85702 | BEARING UNIT (PAIR - .001 U.S.) | AR | ||||||
| 6 | 23-85703 | BEARING UNIT (PAIR - .002 U.S.) | AR | ||||||
| 6 | 23-85704 | BEARING UNIT (PAIR - .010 U.S.) | AR | ||||||
| 6 | 23-85705 | BEARING UNIT (PAIR - .020 U.S.) | AR |
