5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Engine Mounting

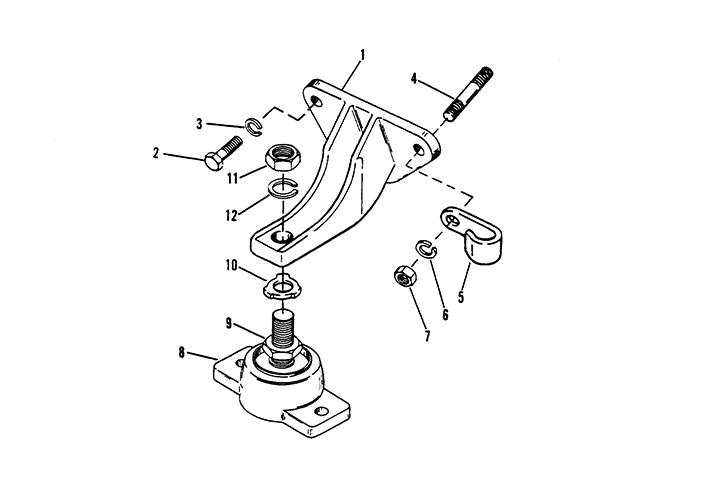

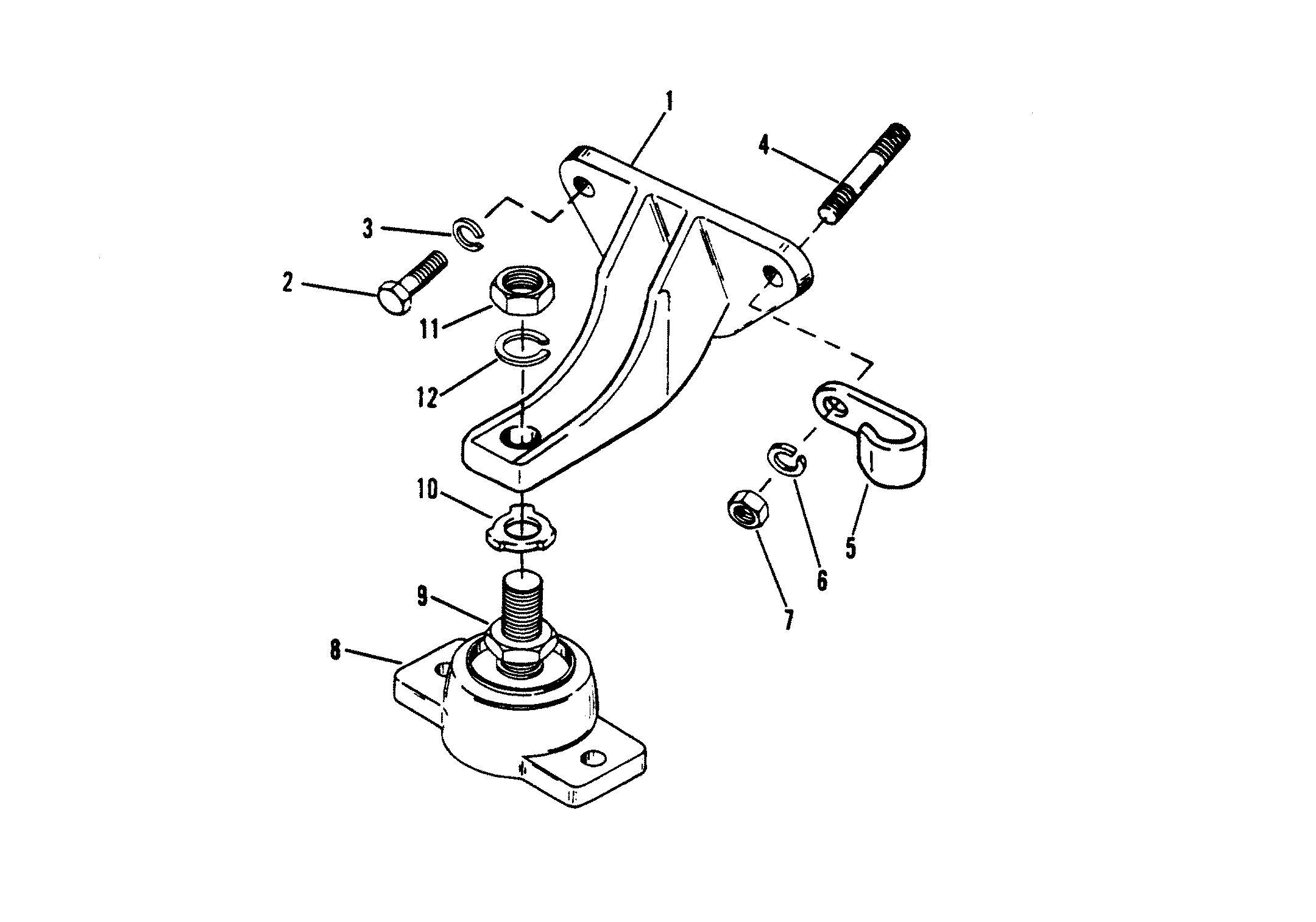

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 79550A1



MOUNTING BRACKET (FRONT) 2

2 10-68101



SCREW 3
PORT
3 13-35048

700-21495
LOCKWASHER 3
PORT
2 10-68101



SCREW 2
STARBOARD
3 13-35048

700-21495
LOCKWASHER 2
STARBOARD
4 16-64066



STUD 1
STARBOARD
5 54-78945



CLIP 1
STARBOARD
6 13-35048

700-21495
LOCKWASHER 1
STARBOARD
7 11-32219



NUT 1
STARBOARD
8 814263A1



BASE ASSEMBLY 2

9 11-816331



JAM NUT 2

10 14-12657



TAB WASHER 2

11 11-859126



NUT 2 11-49252
12 13-68102



LOCKWASHER 2
