R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Driveshaft Housing And Driveshaft

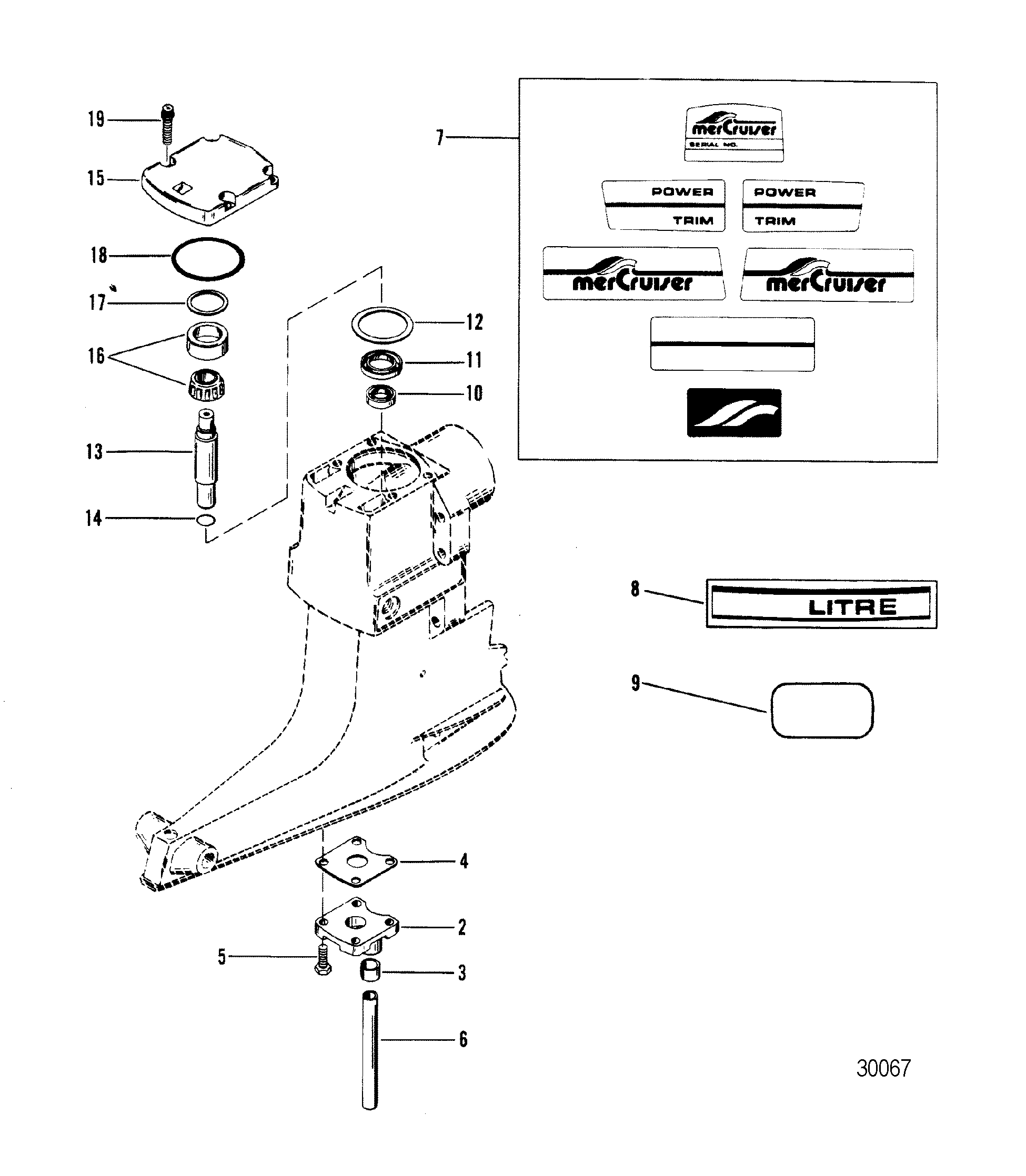

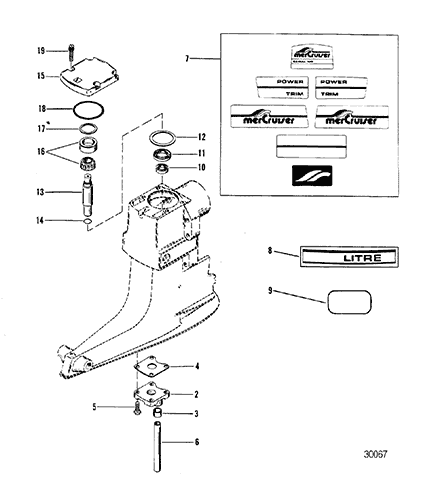

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
2 42724A3         COVER, ASSEMBLY, WATER POCKET COVER 1

3 26-36557         SEAL, RUBBER - WATER POCKET COVER 1
(Component of Gear Repair Kits No. 1-5) 14,19
4 27-558101         GASKET, WATER POCKET COVER 1
(Component of Gear Repair Kits No. 1-5) 14,19
5 10-28668         SCREW, (.250-20 x .875) Stainless Steel, WATER POCKET COVER TO DRIVE SHAFT HOUSING 4

6 32-54236         TUBE, WATER POCKET COVER 1

7 37-13682A90         DECAL SET (BLACK) 1

7 37-13682A90         DECAL SET (COUNTER ROTATION) 1

7 37-17906A88         DECAL SET (OYSTER) 1   This Part is No Longer Available
8 37-43699         DECAL, DRIVE SHAFT HOUSING (3.8LITRE) 1   This Part is No Longer Available
9 37-13722A10         DECAL SET (350/454 MAGNUM) 1   This Part is No Longer Available
9 37-13722A11         DECAL SET, Engine Model (120/2.5L/140/3.0L/165/170/180/190) 1

9 37-13722A12         DECAL SET (175/185/205/200/230/260) 1   This Part is No Longer Available
9 37-16416A87         DECAL (320/320 EFI) 1   This Part is No Longer Available
9 37-13722A13         DECAL SET, Engine Model (3.7L/3.7L-LX/4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L) 1

10 26-965031         SEAL, Oil, DRIVE SHAFT HOUSING - LOWER 1
(Component of Gear Repair Kits No. 1-5) 14,19
11 26-32511         SEAL, Oil, GEAR CHAMBER - DRIVE SHAFT HOUSING 1
(Component of Gear Repair Kits No. 1-5) 14,19
12 15-36178A02         SHIM SET, BEARING CUP AR 15-36178A1 (Component of Gear Repair Kits No. 1-5) 14
13 45-55796         DRIVESHAFT, UPPER 1

14 25-55801         O-RING, UPPER DRIVE SHAFT 1
(Component of Gear Repair Kits No. 1-5) 14,19
15 94998A4         COVER ASSEMBLY, TOP (BLACK) 1

16 31-61100A1         BEARING ASSEMBLY, DRIVE SHAFT 1
(CUP Dimension 1.939) (Component of Gear Repair Kits No. 1-5) 14
16 31-32575T1         BEARING ASSEMBLY, DRIVE SHAFT 1
(CUP Dimension 1.78)
17 15-45691A1     700-23260   SHIM, BEARING CUP TO TOP COVER AR
(CUP Dimension 1.939) (Component of Gear Repair Kits No. 1-5) 14
17 15-32563A1     700-23261   SHIM SET, BEARING CUP TO TOP COVER AR
(CUP Dimension 1.78) 14
18 25-32546   676-9-76546 700-80420   O-RING, TOP COVER SEALING 1
(Component of Gear Repair Kits No. 1-5) 14,19
19 10-98794   676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00), TOP COVER 4

- 26-32511A1         SEAL KIT 1

- 43-803101T1         REPAIR KIT, Gear - Upper Driveshaft 1
(1.98 Ratio)(20/24 Gear)
- 43-803112T1         REPAIR KIT, Gear - Upper Driveshaft 1
(1.65 Ratio)(24/24 Gear)
- 43-803114T1         REPAIR KIT, Gear - Upper Driveshaft 1
(1.84 Ratio)(17/19 Gear)
- 43-803115T1         REPAIR KIT, Gear - Upper Driveshaft 1
(1.32 Ratio)(16/20 Gear)
- 43-803116T1         REPAIR KIT, Gear - Upper Driveshaft 1
(1.50 Ratio)(20/22 Gear)
