R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Power Steering Components

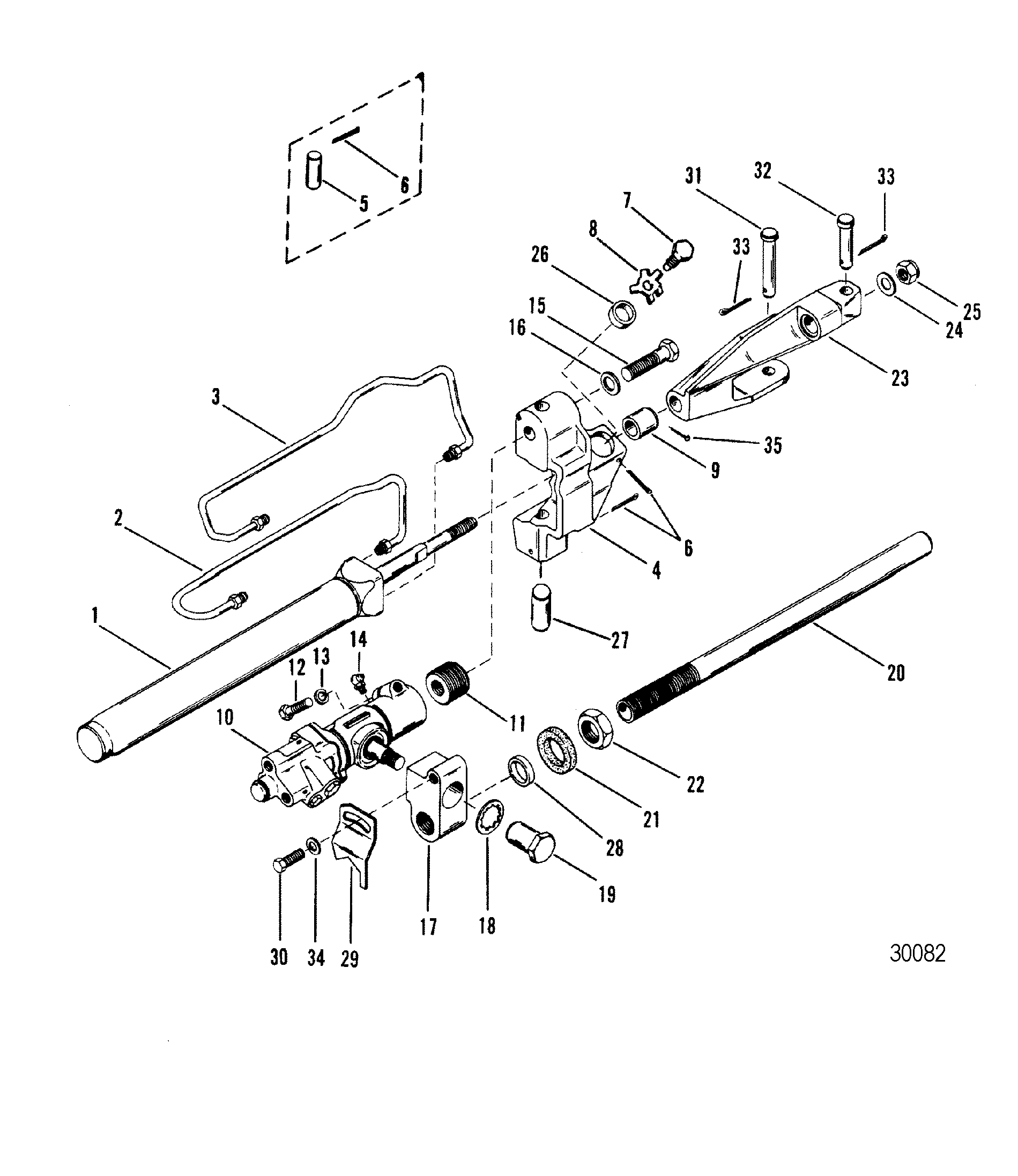

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 57969A12         CYLINDER ASSEMBLY, Booster (25-58224A1 SEAL REPAIR KIT) 1   This Part is No Longer Available
2 32-92054         TUBE, EXTENDING 1

3 32-92055         TUBE, RETRACTING 1

4 94953A1         BRACKET ASSEMBLY, ADAPTOR 1   This Part is No Longer Available
5 17-99938         PIN, BOOSTER CYLINDER (EARLY STYLE) 2
No longer made, limited availability
6 18-36377         COTTER PIN, RETAINING PIN (EARLY STYLE) 3
no longer made, limited availability
7 10-42253         BOLT, BOOSTER CYLINDER (LATER STYLE) 2

8 14-42254         WASHER, PIVOT BOLT (LATER STYLE) 2

9 23-88282         SLEEVE, ADAPTOR BRACKET 1   This Part is No Longer Available
10 816458A1         VALVE ASSEMBLY, POWER STEERING (25-58226A1 SEAL REPAIR KIT) 1   This Part is No Longer Available
11 88280         ADAPTOR, BOOSTER VALVE 1   This Part is No Longer Available
12 10-37612         SCREW, (.375-16 x 1.250), CLAMPING 1

13 13-35048     700-21495   LOCKWASHER, (.375), CLAMPING SCREW 1

14 22-67305         FITTING, Grease 1
no longer made, limited availability
15 10-88281         SCREW, (.500-20 x 1.750), ADAPTOR 1   This Part is No Longer Available
16 12-20959         WASHER, ADAPTOR SCREW 1

17 88285         ADAPTOR, STEERING TUBE 1   This Part is No Longer Available
18 13-76629         LOCKWASHER, Internal Tooth (.750), STEERING TUBE ADAPTOR 1

19 11-55111         NUT, STEERIN TUBE ADAPTOR 1   This Part is No Longer Available
20 96511         TUBE ASSEMBLY, STEERING 1

21 88287         GUIDE, STEERING TUBE 1   This Part is No Longer Available
22 11-32882         NUT, (.875-14), STEERING TUBE 1

23 95848A1         CLEVIS ASSEMBLY, ROD END 1   This Part is No Longer Available
24 12-20086         WASHER, (.390 x .620 x .060), ROD END 1

25 11-69254         NUT, ROD END 1

26 23-95803         BUSHING, PIVOT 2

27 17-88283         PIN, Retaining 2   This Part is No Longer Available
28 23-88286         BUSHING, STEERING TUBE 1   This Part is No Longer Available
29 92766         LOCK, COUPLER NUT 1   This Part is No Longer Available
30 10-41209         SCREW, COUPLER NUT LOCK 1   This Part is No Longer Available
31 17-89229         PIN, Clevis 1
32 17-52798         PIN, Clevis 1
33 18-46950         COTTER PIN 2
34 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel, COUPLER NUT LOCK SCREW 1
35 18-34212         COTTER PIN, SLEEVE 1
