R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Hydraulic Pump Prestolite Pump

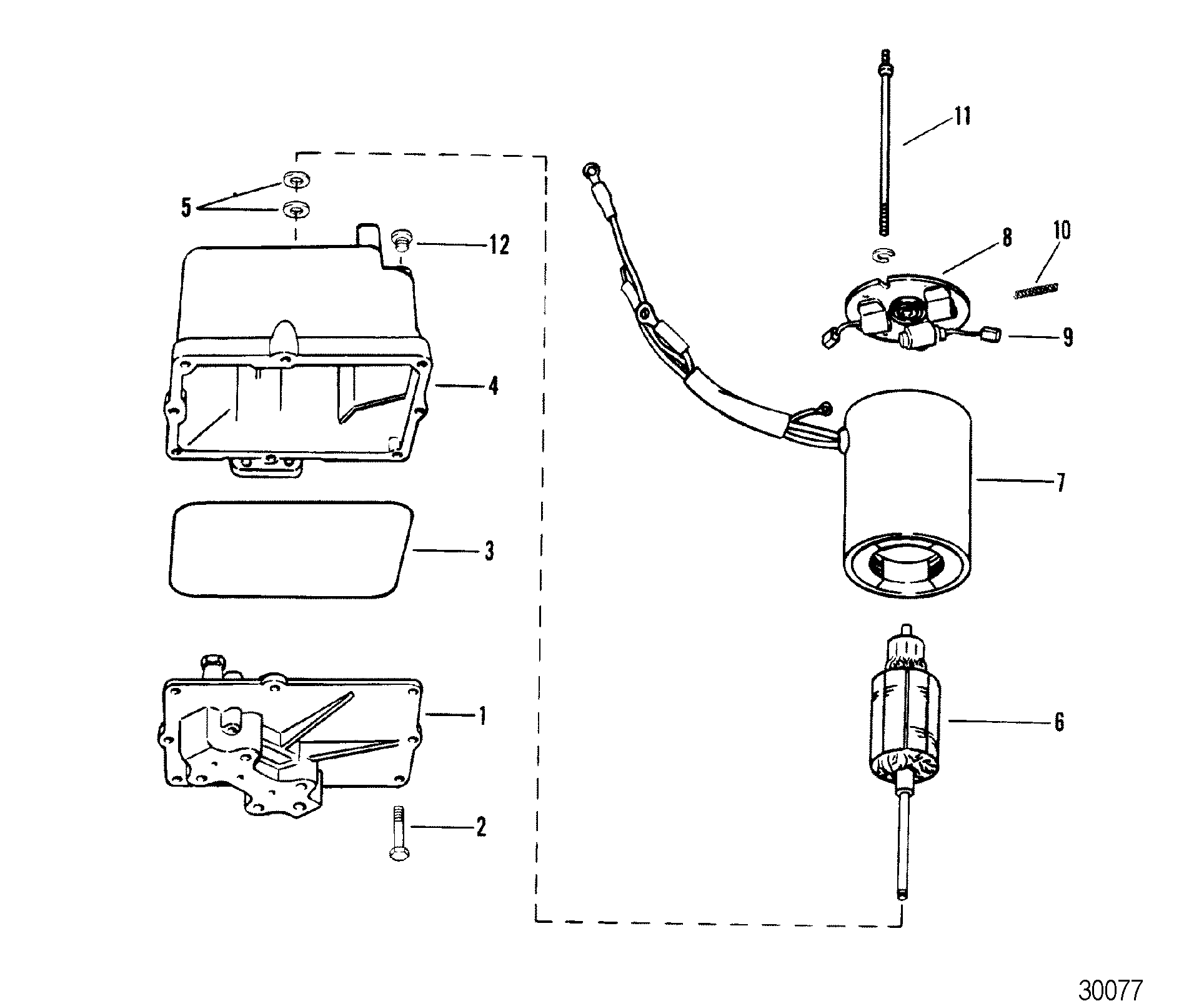

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
-- 865380A25         PUMP ASSEMBLY, Trim 1 14336A17
1 88183A12         VALVE BODY AND GEAR ASSEMLBY 1 392-9252
2 10-69570     700-21751   SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR 8

3 392-7735         SEAL, RESERVOIR TO VALVE BODY AND GEAR 1

4 392-7731         RESEROVIR ASSEMBLY (PLASTIC) 1

5 392-7732         WASHER, THRUST - ARMATURE 1   This Part is No Longer Available
6 88183A12         ARMATURE, FIELD AND FRAME 1 392-9248
7 88183A12         FIELD AND FRAME ASSEMBLY 1 392-9249
8 392-9250         PLATE ASSEMBLY, COMMUTATOR END 1   This Part is No Longer Available
9 392-8989         BRUSH KIT, COMMUTATOR END PLATE 1

10 392-8993         SPRING KIT, GBRUSH TENSION 1

11 392-9251         BOLT SET, THRU 1   This Part is No Longer Available
12 392-7728         FILL PLUG, RESERVOIR 1   This Part is No Longer Available
