R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Trim Cylinders And Hydraulic Hoses

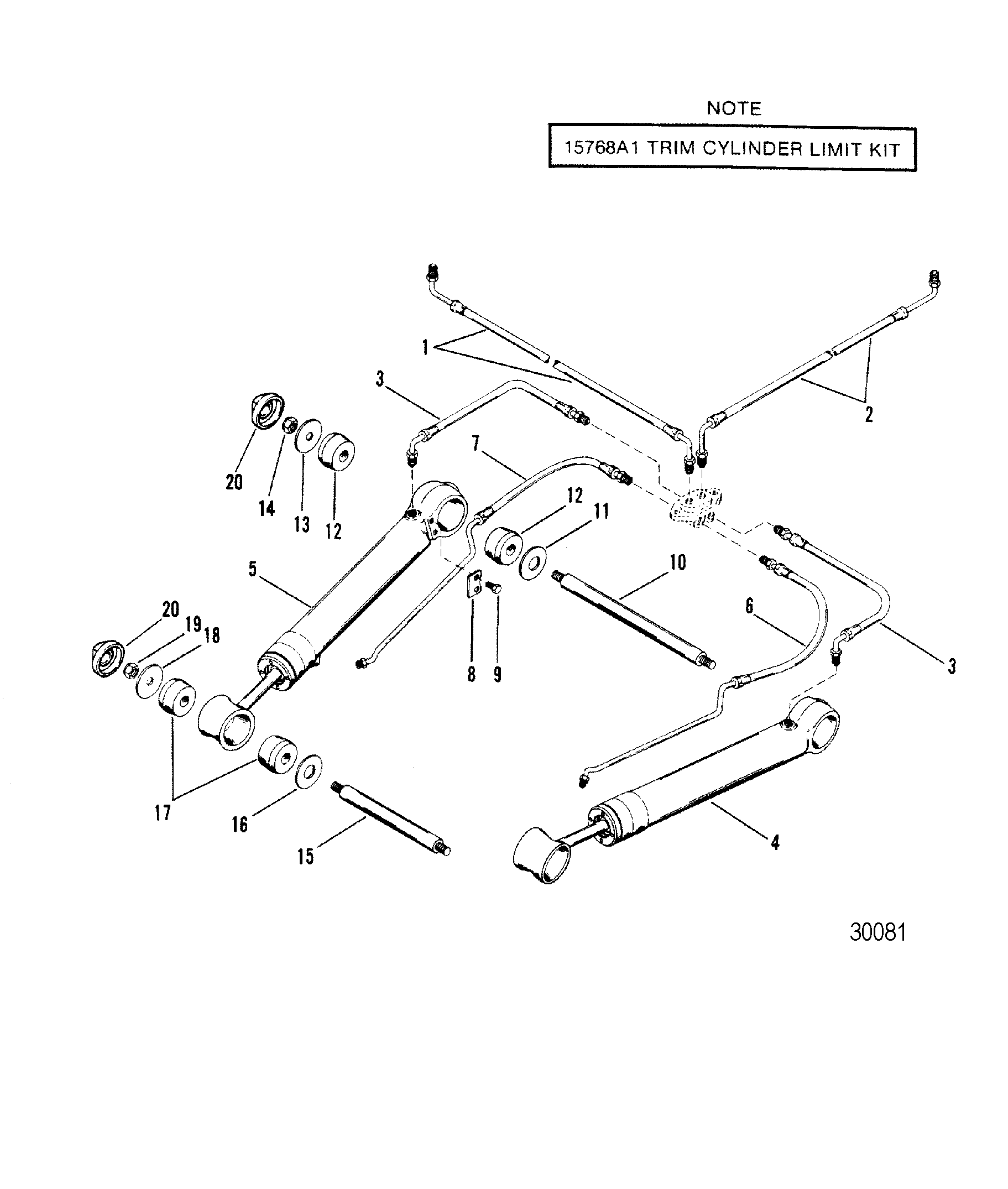

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 32-861127 | 676-9-71516 | HOSE, Black, HYDRAULIC - CONNECTOR TO PUMP (BLACK) | 1 | ||||||
| 2 | 32-861128 | 676-9-71512 | HOSE, Gray, HYDRAULIC - CONNECTOR TO PUMP (GRAY) | 1 | ||||||
| 3 | 32-99904Q | HOSE, HYDRAULIC - TRIM CYLINDER TO CONNECTOR | 2 | 32-99904 | ||||||
| 4 | 98704A3 | 700-26400 | TRIM CYLINDER ASSEMBLY (STARBOARD) | 1 | SEE DRIVE UNIT CHART REF.# 1-10 | |||||
| 4 | 14034A3 | 700-26500 | TRIM CYLINDER ASSEMBLY (STARBOARD) (BLACK) | 1 | SEE DRIVE UNIT CHART REF.# 1-11 | |||||
| 5 | 98703A3 | 700-26410 | TRIM CYLINDER (PORT) | 1 | SEE DRIVE UNIT CHART REF.# 1-11 | |||||
| 5 | 14035A3 | 700-26510 | TRIM CYLINDER ASSEMBLY (PORT) (BLACK) | 1 | SEE DRIVE UNIT CHART REF.# 1-11 | |||||
| -- | 87399A2 | 700-26380 | OVERHAUL KIT, TRIM CYLINDER | 2 | ||||||
| -- | 25-87400A2 | 700-87400 | SEAL KIT, TRIM CYLINDER | 2 | ||||||
| 6 | 32-864589 | HOSE, Trim Cylinder (STARBOARD) | 1 | 32-99902 | SEE DRIVE UNIT CHART REF.# 1-11 | |||||
| 6 | 32-864960 | 676-9-71508 | HOSE, Trim Cylinder (STARBOARD) | 1 | 32-999021 | SEE DRIVE UNIT CHART REF.# 1-11 | ||||
| 7 | 32-864588 | 676-9-71515 | HOSE, Trim Cylinder (PORT) | 1 | 32-99903 | SEE DRIVE UNIT CHART REF.# 1-11 | ||||
| 7 | 32-864959 | 676-9-71509 | HOSE, Trim Cylinder (PORT) | 1 | 32-999031 | SEE DRIVE UNIT CHART REF.# 1-11 | ||||
| 8 | 85060 | PLATE, CLAMPING - TRIM CYLINER HOSE | 2 | |||||||
| 9 | 10-85486 | SCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATE | 4 | |||||||
| 10 | 17-14873A1 | 700-21410 | PIN ASSEMBLY, FRONT ACNHOR | 1 | ||||||
| 11 | 12-85058 | 700-21660 | WASHER, FRONT PIN | 2 | ||||||
| 12 | 23-99291T | 676-9-77000 | 700-26330 | BUSHING, RUBBER | 4 | |||||
| 13 | 12-85057 | WASHER, FRONT PIN 3/8-24 THREADS | 2 | |||||||
| 13 | 12-44163 | 700-21670 | WASHER, (.450 x 1.75 x .12), FRONT PIN | 2 | ||||||
| 14 | 11-862903 | NUT, (.375-24), FRONT PIN | 2 | |||||||
| 14 | 11-859116 | NUT, (.437-20), FRONT PIN | 2 | |||||||
| 15 | 17-14872A1 | 700-21400 | PIN, REAR ANCHOR 3/8-24 THREADS | 1 | 17-99207 | |||||
| 15 | 17-14872A1 | 700-21400 | PIN ASSEMBLY, REAR ANCHOR 7/16-20 THREADS | 1 | ||||||
| 16 | 12-8505812-85058 | 700-21660 | WASHER, REAR PIN 3/8-24 THREADS | 2 | 12-85058 | |||||
| 16 | 12-85058 | 700-21660 | WASHER, REAR PIN 7/16-20 THREADS | 2 | ||||||
| 17 | 23-99291T | 676-9-77000 | 700-26330 | BUSHING, RUBBER | 4 | |||||
| 18 | 12-85057 | WASHER, REAR PIN 3/8-24 THREADS | 2 | |||||||
| 18 | 12-44163 | WASHER, (.450 x 1.75 x .12), REAR PIN | 2 | |||||||
| 19 | 11-862903 | NUT, (.375-24), REAR PIN | 2 | |||||||
| 19 | 11-859116 | NUT, (.437-20), REAR PIN | 2 | |||||||
| 20 | 19-14842 | 676-9-77200 | 700-26480 | CAP, FRONT PIN 7/16-20 THREADS (BLACK) | 2 | |||||
| 20 | 19-14842 | 676-9-77200 | 700-26480 | CAP, REAR PIN 7/16-20 THREADS (BLACK) | 2 |
