R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Power Trim Cylinder Repair Kits

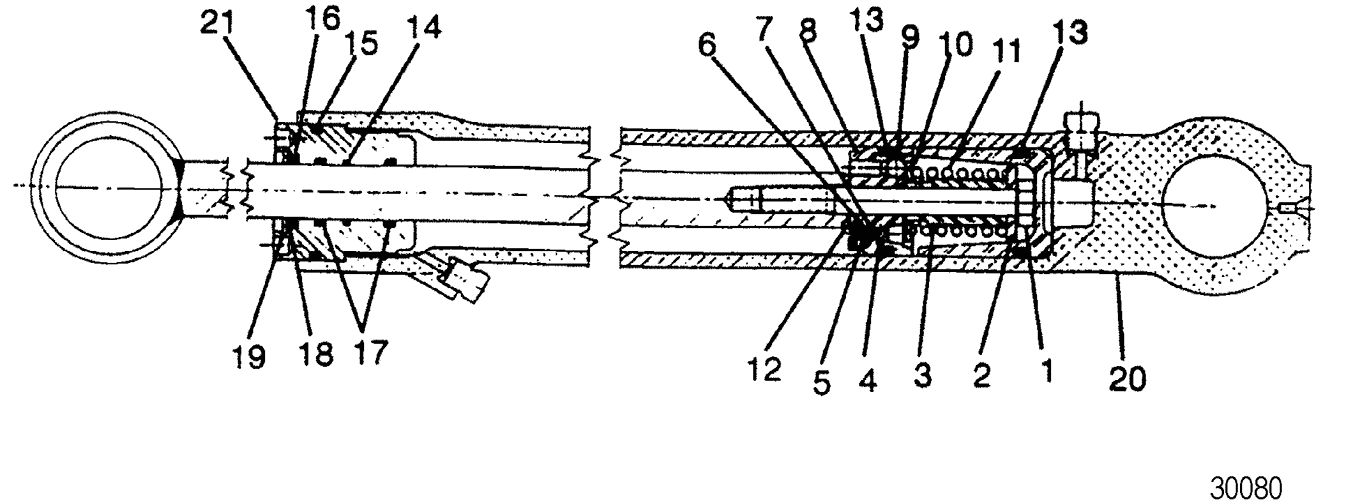

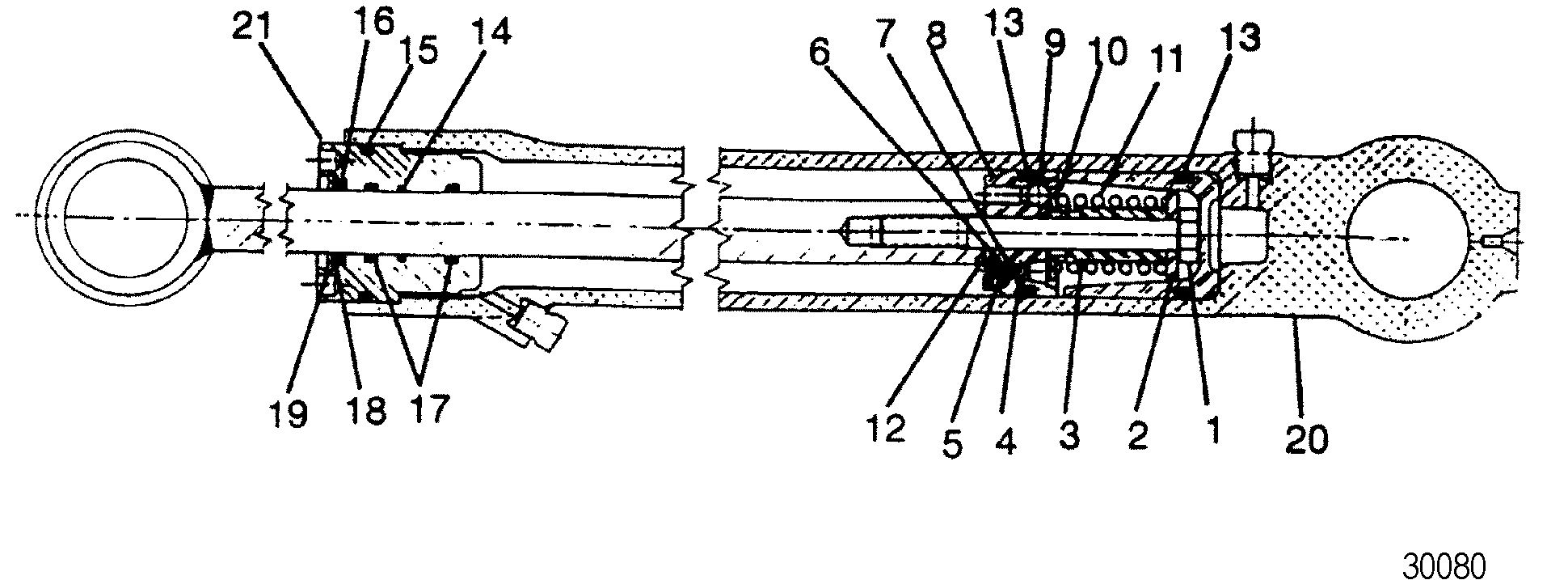

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: DO NOT SUBSTITUTE O-RINGS AS THESE ARE OF SPECIAL MANUFACTURED MATERIAL | ||||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| -- | 87399A2 | 700-26380 | OVERHAUL KIT | 1 | ||||||
| 1 | NSS | NOT SOLD SEPARATE (10-15 X 3-3/8 inch) | 1 | This Part is not sold separately | ||||||
| 2 | NSS | NOT SOLD SEPARATE | 1 | This Part is not sold separately | ||||||
| 3 | NSS | NOT SOLD SEPARATE, SPRING | 1 | This Part is not sold separately | ||||||
| 4 | NSS | NOT SOLD SEPARATE, STEEL (.109 DIA.) | 1 | This Part is not sold separately | ||||||
| 5 | NSS | NOT SOLD SEPARATE, SPRING | 1 | This Part is not sold separately | ||||||
| 6 | NSS | NOT SOLD SEPARATE, COMPRESSION | 1 | This Part is not sold separately | ||||||
| 7 | NSS | NOT SOLD SEPARATE, BALL CHECK | 1 | This Part is not sold separately | ||||||
| 8 | NSS | NOT SOLD SEPARATE, SHOCK | 1 | This Part is not sold separately | ||||||
| 9 | NSS | NOT SOLD SEPARATE, STEEL (.250 DIA.) | 3 | This Part is not sold separately | ||||||
| 10 | NSS | NOT SOLD SEPARATE, STEEL BALL | 1 | This Part is not sold separately | ||||||
| 11 | NSS | NOT SOLD SEPARATE, COMPRESSION | 1 | This Part is not sold separately | ||||||
| -- | 25-87400A2 | 700-87400 | SEAL KIT | 1 | ||||||
| 12 | NSS | NOT SOLD SEPARATE | 1 | This Part is not sold separately | ||||||
| 13 | NSS | NOT SOLD SEPARATE | 2 | This Part is not sold separately | ||||||
| 14 | NSS | NOT SOLD SEPARATE, CONTINUITY | 2 | This Part is not sold separately | ||||||
| 15 | NSS | NOT SOLD SEPARATE | 1 | This Part is not sold separately | ||||||
| 16 | NSS | NOT SOLD SEPARATE | 1 | This Part is not sold separately | ||||||
| 17 | NSS | NOT SOLD SEPARATE | 2 | This Part is not sold separately | ||||||
| 18 | NSS | NOT SOLD SEPARATE, PLAIN | 1 | This Part is not sold separately | ||||||
| 19 | NSS | NOT SOLD SEPARATE | 1 | This Part is not sold separately | ||||||
| 20 | 98703T | 700-26412 or | 700-26411 | TUBE (PORT) - CASTING #98703 | 1 | |||||
| 20 | 98703A10 | TUBE (PORT) - CASTING #98703 1 | 1 | |||||||
| 20 | 14035A3 | 700-26510 | TUBE (PORT) - CASTING #14035 1 (BLACK) | 1 | 14035a3 | |||||
| 20 | 98704T | 700-26402 or | 700-26401 | TUBE (STARBOARD) - CASTING #98704 | 1 | |||||
| 20 | 98704A10 | TUBE (STARBOARD) - CASTING #98704 1 | 1 | |||||||
| 20 | 14034A3 | 700-26500 | TRIM CYLINDER ASSEMBLY (STARBOARD) - CASTING #14034 1 (BLACK) | 1 | ||||||
| 21 | 88035 | 700-11620 | CAP (2.081 O.D.) | 2 | ||||||
| 21 | 806191T | 700-11610 | CAP (1.89 O.D.) (BLACK) | 2 | ||||||
