R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir

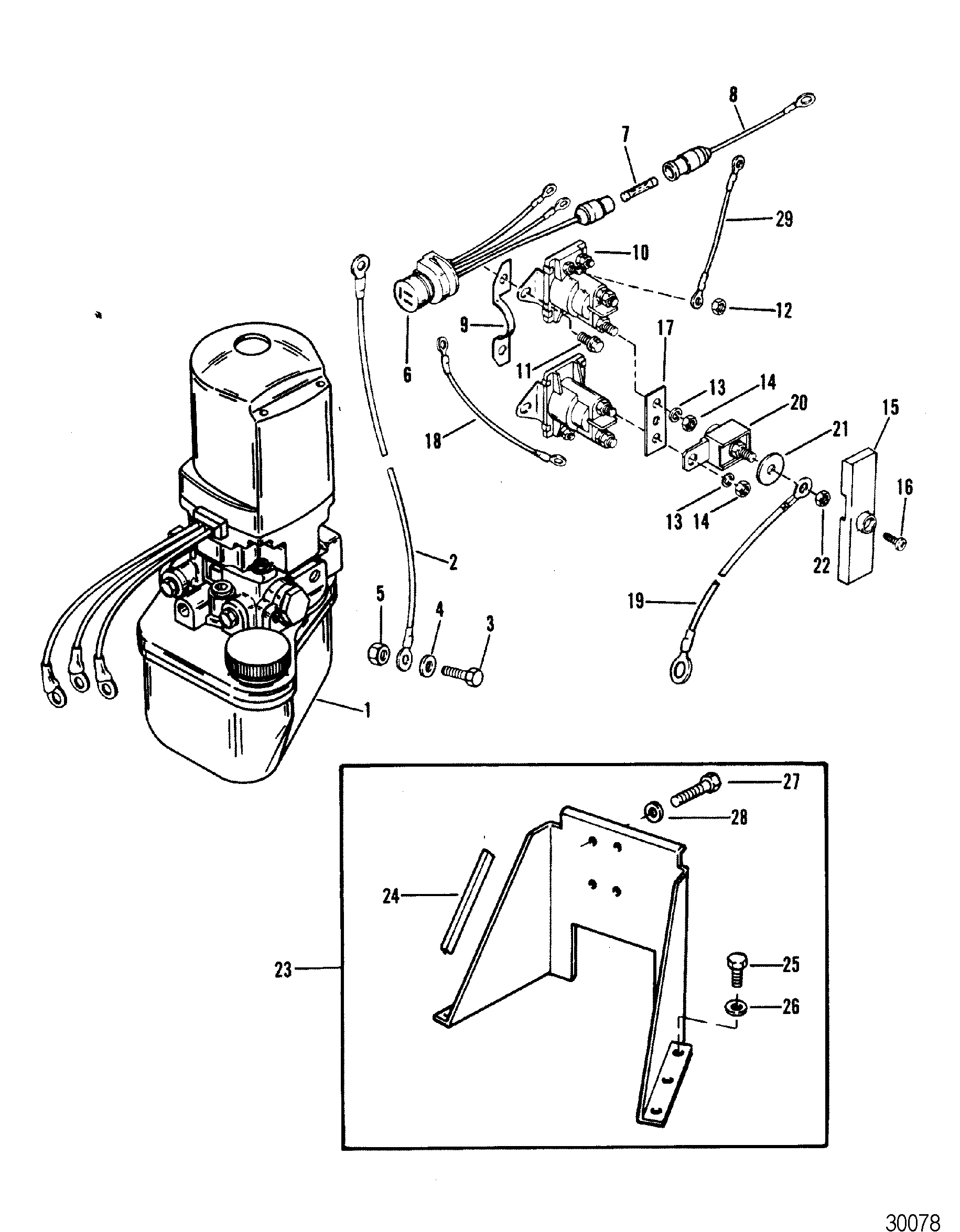

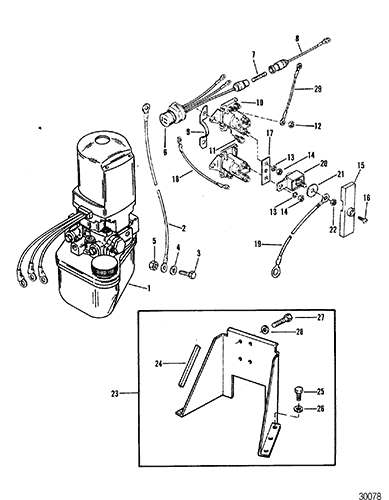

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 865380A25 | PUMP ASSEMBLY, Trim | - | 14336A17 | |||||
| 1 | 865380A13 | PUMP/MOTOR ASSEMBLY | 1 | 14336A20 | |||||
| 2 | 84-79138A9 | CABLE ASSEMBLY, (6.00 Feet) Black-Negative | 1 | ||||||
| 3 | 10-90285 | SCREW, (.312-18 x .625), GROUND | 1 | ||||||
| 4 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel, GROUND SCREW | 1 | ||||||
| 5 | 11-68292 | NUT, (.312-18), GROUND SCREW | 1 | ||||||
| 6 | 84-79147A3 | HARNESS ASSEMBLY, HYDRAULIC PUMP | 1 | ||||||
| 7 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 8 | 84-95084A2 | CABLE ASSEMBLY, FUSE | 1 | ||||||
| 9 | 88075 | RETAINER, HARNESS TO MOUNTING BRACKET | 1 | ||||||
| 10 | 89-96158T | 620-3387M | 676-9-15112 | 700-72400 | SOLENOID, TRIM PUMP | 2 | |||
| 11 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOID TO BRACKET | 4 | ||||||
| 12 | 11-26419 | NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL | 4 | ||||||
| 13 | 13-26992 | LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL | 4 | ||||||
| 14 | 11-94330 | NUT, (.250-20) Brass, STARTER SOLENOID TERMINAL | 4 | ||||||
| 15 | 85-861680 | INSULATOR, RUBBER - STARTER SOLENOID TERMIANL | 1 | ||||||
| 16 | 10-48409 | SCREW, (#10-16 x .625) Stainless Steel, SOLENOID INSULATOR | 1 | ||||||
| 17 | 94275 | LINK, SOLENOID TO SOLENOID | 1 | ||||||
| 18 | 84-86322A15 | CABLE ASSEMBLY, (5.50 Inches) Black, SOLENOID TO SOLENOID | 2 | ||||||
| 19 | 84-79139A12 | CABLE ASSEMBLY, Red-Positive | 1 | ||||||
| 20 | 79023T10 | FUSE ASSEMBLY, 110 Ampere | 1 | 88-79023A10 | |||||
| 21 | 12-96457 | WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL | 1 | ||||||
| 22 | 11-21825 | NUT, (.250-28), FUSE TERMINAL | 1 | ||||||
| 23 | 862548A1 | BRACKET KIT, MOUNTING - HYD. PUMP (FLOOR MOUNTED) | 1 | ||||||
| 24 | 58491 | CHANNEL, Rubber (4.00 Inches), PUMP MOUNTING BRACKET | 2 | ||||||
| 25 | 10-59784 | SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING | 6 | ||||||
| 26 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET SCREW | 6 | |||||
| 27 | 10-35386 | SCREW, (.312-18 x 1.00), HYDRAULIC PUMP TO MOUNTING BRACKET | 2 | ||||||
| 28 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24), HYDRAULIC PUMP SCREW | 2 | |||||
| 29 | 84-86322A24 | CABLE ASSEMBLY, (4.00 Inches) (BLACK) | 1 |
