R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Gear Housing (Driveshaft) - MR

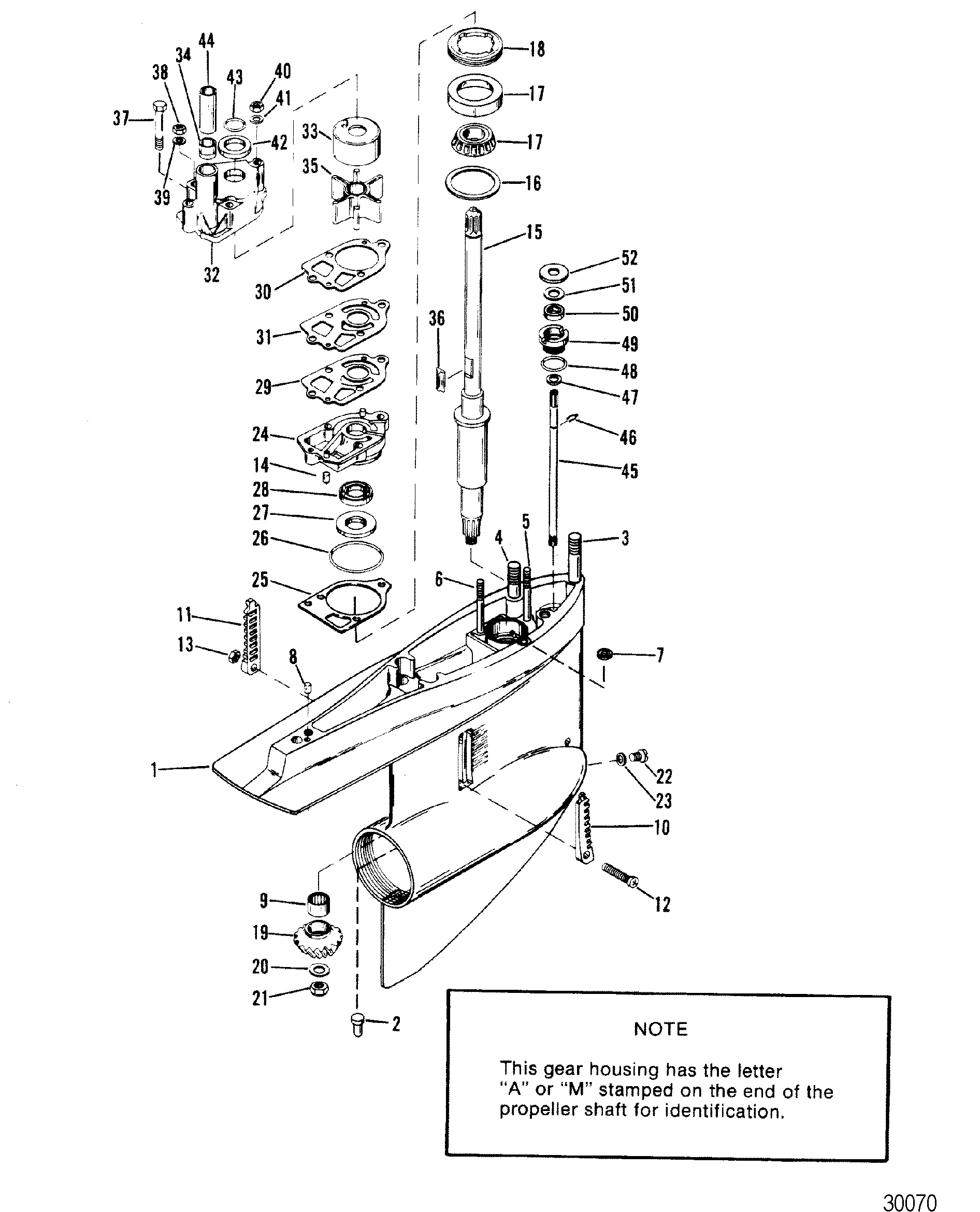

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Note: Component of Water Pump Impeller Kit 47-89984T5 | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| -- | 1623-8951A43 | GEAR HOUSING ASSEMBLY, COMPLETE (BLACK) | 1 | ||||||
| 1 | 1623-8951A37 | GEAR HOUSING ASSEMBLY (BLACK) | 1 | ||||||
| 2 | 17-379721 | PIN | 1 | ||||||
| 3 | 16-46911 | STUD (3-3/16 inch) | 1 | ||||||
| 4 | 16-56298 | STUD (1-31/32 inch) | 2 | ||||||
| 5 | 16-8M0034463 | STUD, (.312-18/.324-24 x 3.380) | 1 | 16-562972 | |||||
| 6 | 16-69501 | STUD (3-1/4 inch) | 2 | ||||||
| 7 | 26-455771 | SEAL | 1 | See Note | |||||
| 8 | 17-35973 | PIN, Dowel | 2 | ||||||
| 9 | 31-42647A1 | BEARING ASSEMBLY, Roller | 1 | 7,8,9 | |||||
| 10 | 934231 | INSERT (STARBOARD) (BLACK) | 1 | ||||||
| 11 | 934241 | INSERT (PORT) (BLACK) | 1 | ||||||
| 12 | 10-76156 | SCREW, (#10-32 x 1.88) | 1 | ||||||
| 13 | 11-859124 | NUT, (#10-32) Stainless Steel | 1 | 11-45812 | |||||
| 14 | 17-42836 | PIN, Groove | 1 | This Part is No Longer Available | |||||
| 15 | 45-42634 | DRIVESHAFT ASSEMBLY | 1 | ||||||
| 16 | 15-8M0063267 | SHIM SET | AR | 15-42637A1 | 7,8,9 | ||||
| 17 | 31-36387A1 | BEARING, Roller | 1 | 7,8,9 | |||||
| 18 | 8245191 | RETAINER | 1 | ||||||
| 19 | 43-878087A4 | GEAR SET (INCLUDES PINION AND FORWARD GEARS) | 1 | 7,9 | |||||
| 20 | 12-92721 | 676-9-78108 | 700-32800 | WASHER | 1 | 8,9 | |||
| 21 | 11-35921 | 676-9-78103 | 700-11190 | NUT, (.625-18) | 1 | 8,9 | |||
| 22 | 22-8M0058389 | FITTING KIT, Magnetic, Plug Fill/Drain | 1 | 22-67892A1 | |||||
| 23 | 12-191833 | WASHER | 1 | 12-191832 | (Component of Drive Shaft Housing Seal Kit 26-32511A) See Note 1 2,3,8,9 | ||||
| 24 | 46-44292A3 | BASE ASSEMBLY, Water Pump | 1 | ||||||
| 25 | 27-426311 | GASKET | 1 | 2,3,8,9 | |||||
| 26 | 25-896523 | O-RING, (2.175 x .175) | AR | 25-90011 | 2,3,8,9 | ||||
| 26 | 25-38099 | O-RING (2.109 I.D.) | AR | 3,8,9 | |||||
| 27 | 26-89238 | SEAL, Oil | 1 | 3,8,9 | |||||
| 28 | 26-16977 | SEAL, Oil | 1 | 3,8,9 | |||||
| 29 | 27-856081 | GASKET, LOWER | 1 | See Note | |||||
| 30 | 27-858524 | GASKET, UPPER | 1 | See Note | |||||
| 31 | 324351 | FACE PLATE | 1 | 32435 | See Note | ||||
| 32 | 46-96148T1 | BODY ASSEMBLY, Water Pump | 1 | 2 | |||||
| 33 | 48752T | INSERT | 1 | 2 | |||||
| 34 | 26-38970 | SEAL, RUBBER | 1 | 2,19 | |||||
| 35 | 47-89984T4 | IMPELLER | 1 | See Note | |||||
| 36 | 8M0032834 | KEY | 1 | 28-56654 | See Note | ||||
| 37 | 10-96411 | SCREW, (#14-8 x 2.25) | 1 | 2 | |||||
| 38 | 11-8267119 | NUT, (.250-28) | 2 | 11-13438 | |||||
| 39 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 40 | 11-13436 | NUT (5/16-24) | 1 | ||||||
| 41 | 12-36001 | WASHER | 1 | ||||||
| 42 | 25-30271 | RING, Rubber | 1 | (Component of Water Pump Impeller Kit 47-89984T5) | |||||
| 43 | 25-30613 | O-RING, UPPER | 1 | (Component of Water Pump Impeller Kit 47-89984T5) 2,3,8,9 | |||||
| 44 | 23-29804T | SLEEVE, GUIDE | 1 | (Component of Water Pump Impeller Kit 47-89984T5) | |||||
| 45 | 774811 | SHIFT SHAFT | 1 | ||||||
| 46 | 53-29641 | 700-21136 | E RING | 1 | |||||
| 47 | 12-27880 | WASHER | 1 | ||||||
| 48 | 25-25439 | O-RING, (.862 x .103) | 1 | 3,8,9 | |||||
| 49 | 23-30617A2 | 676-9-76133 | 700-21010 | BUSHING ASSEMBLY | 1 | 3,8,9 | |||
| 50 | 26-892361 | SEAL, Oil | 1 | 3,8,9 | |||||
| 51 | 12-31266 | 700-30010 | WASHER, RUBBER | 1 | 3,8,9 | ||||
| 52 | 12-29395 | 676-9-78137 | 700-21800 | WASHER, (.390 x 1.00 x .06) | 1 | ||||
| - | 26-33144A2 | SEAL KIT | 1 | ||||||
| - | 26-32511A1 | SEAL KIT | 1 | ||||||
| - | 46-96148A8 | BODY ASSEMBLY, Water Pump | 1 | ||||||
| - | 43-878087A4 | GEAR SET | 1 | ||||||
| - | 31-803090T1 | BEARING AND SEAL KIT | 1 | ||||||
| - | 43-803091T1 | REPAIR KIT, Lower Unit | 1 | ||||||
| - | 46-44292A3 | BASE ASSEMBLY, Water Pump | 1 | ||||||
| - | 47-89984T5 | IMPELLER KIT, Water Pump | 1 | ||||||
