R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Hydraulic Pump Oildyne Pump - Metal Reservoir

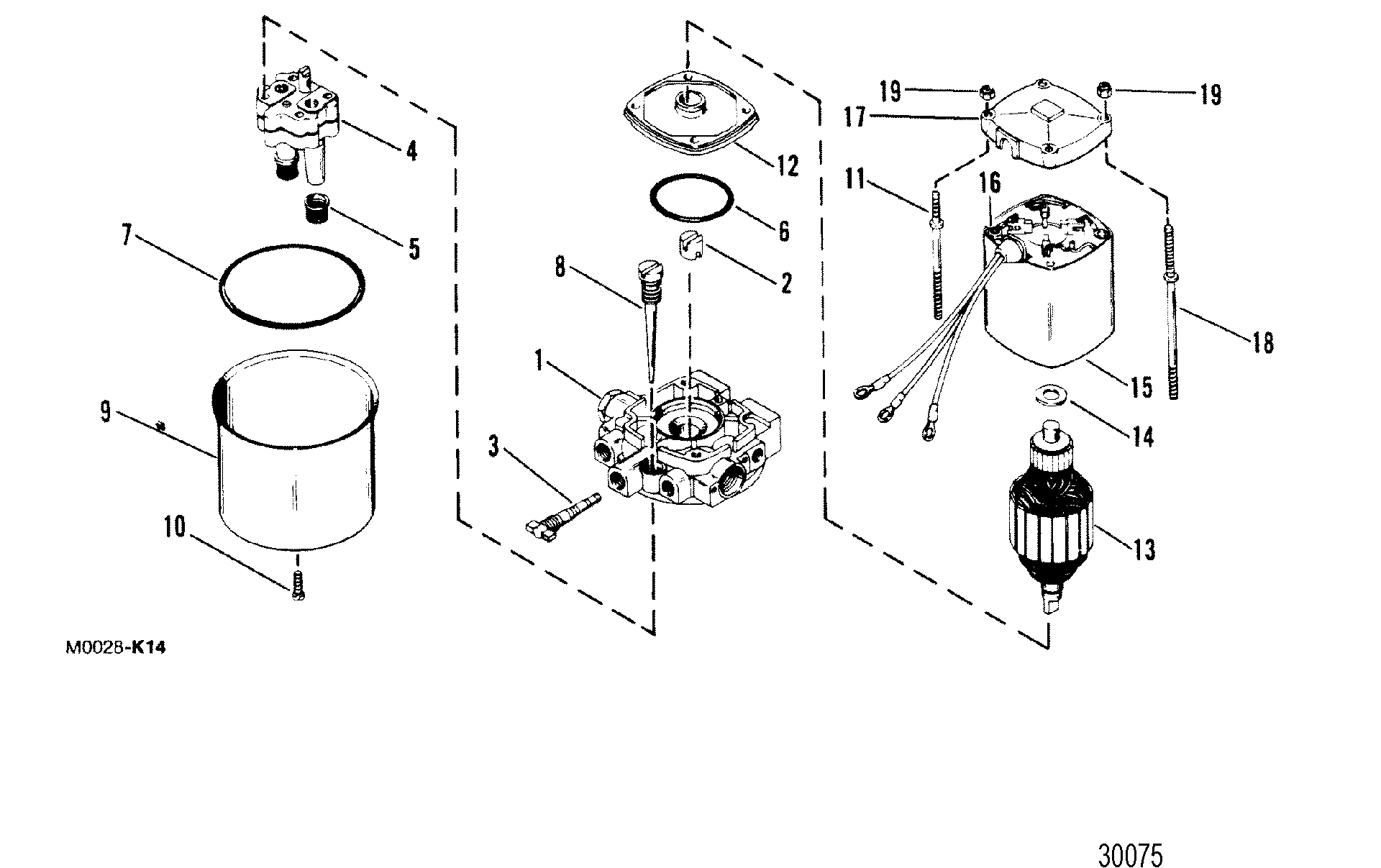

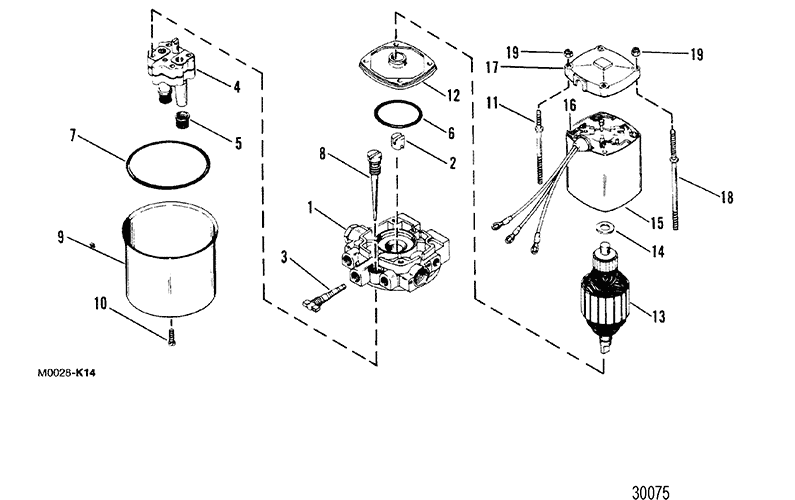

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
-- 865380A13         PUMP/MOTOR ASSEMBLY 1 14336A20
1 41217T         ADAPTOR 1

2 803852         COUPLING 1

3 99073A1         MANUAL RELEASE (INCLUDES 2 O-RINGS) AR 803853A1
3 99073A1         MANUAL RELEASE (INCLUDES 3 O-RINGS) AR 96598A1
4 41216         PUMP (INCLUDES SCREWS) 1

5 35-89496         FILTER 2

6 25-89498         O-RING, MOTOR END 1

7 25-89497         O-RING, RESERVOIR END 1

8 41218         DIPSTICK 1   This Part is No Longer Available
9 41219T         RESERVOIR 1

10 10-41220         SCREW, RESERVOIR (INCLUDES O-RING) 1   This Part is No Longer Available
11 16-41222         THRU STUD (SHORT) 1   This Part is No Longer Available
11 16-41221         THRU STUD (LONG) 1   This Part is No Longer Available
-- 17649A02         MOTOR, HYDRAULIC PUMP 1 17649A1
12 89484         END FRAME, DRIVE END 1   This Part is No Longer Available
13 41214         ARMATURE 1   This Part is No Longer Available
14 12-89482         WASHER, THRUST - ARMATURE 1   This Part is No Longer Available
15 41215         FIELD FRAME 1   This Part is No Longer Available
16 17649A1         BRUSH CARD 1 89487
17 89488         END FRAME, COMMUTATOR END 1   This Part is No Longer Available
18 10-41212         THRU BOLT, MOTOR (SHORT) 1   This Part is No Longer Available
18 10-41213         THRU BOLT, MOTOR (LONG) 1   This Part is No Longer Available
19 11-89481         NUT, THRU BOLT AND STUD 6   This Part is No Longer Available
- 19-11005A1         PLUG ASSEMBLY, Valve -   This Part is No Longer Available
- 99073A1         REPAIR KIT, Overhaul -
- 95353A1         VALVE KIT, Relief -
- 812499A1         VALVE KIT, Relief -
- 812498A1         VALVE KIT, Relief -
