R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Gear Housing (Propeller Shaft) -(Counter Rotation)

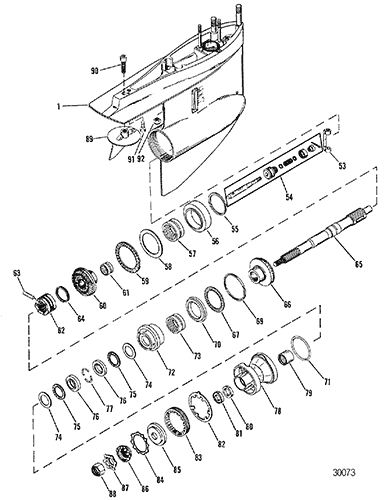

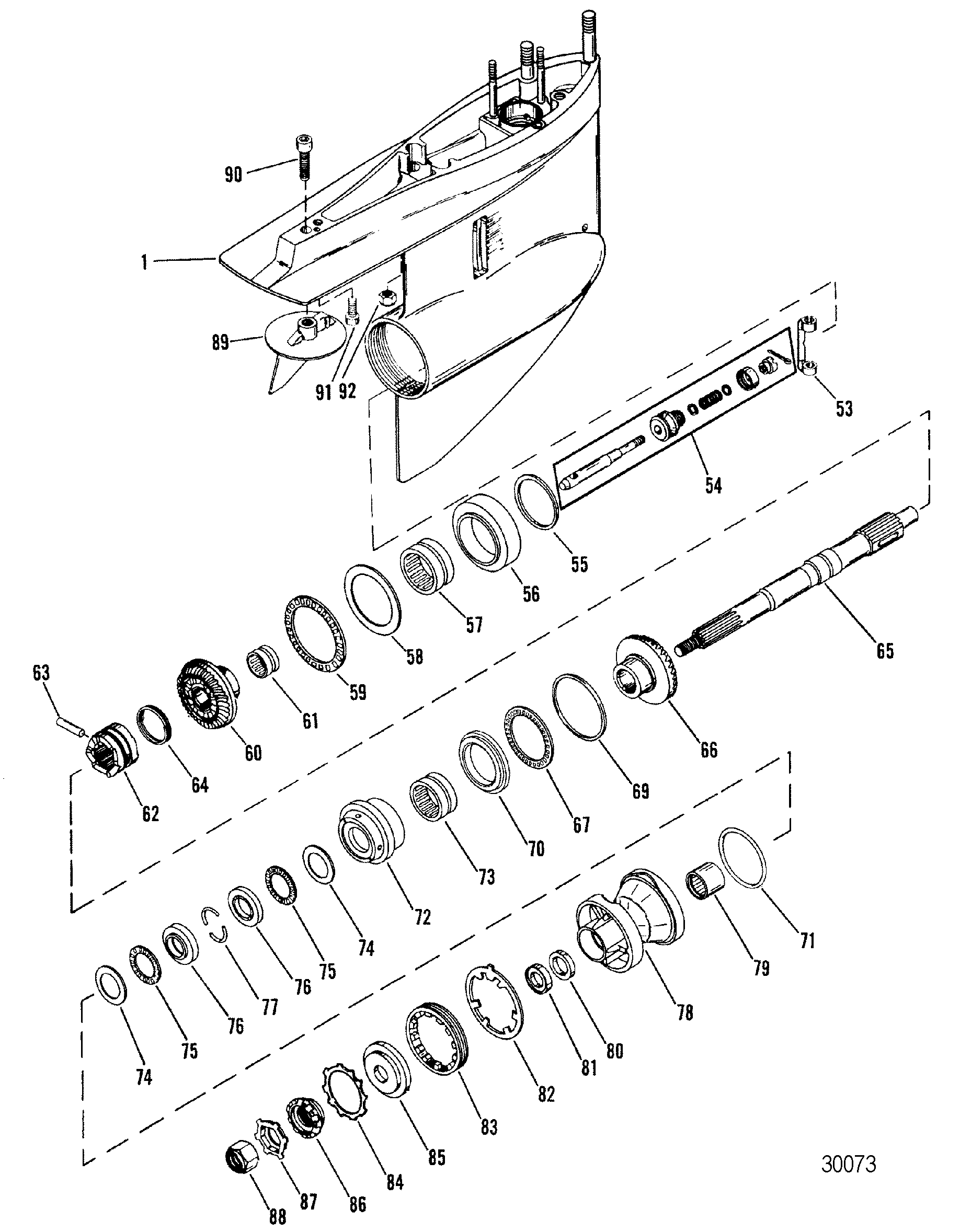

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| -- | 1623-8951A33 | GEAR HOUSING ASSEMBLY, COMPLETE | 1 | 1623-8951A26 | |||||
| 1 | 1623-8951A39 | GEAR HOUSING ASSEMBLY | 1 | ||||||
| 53 | 76865 | CRANK, Shift | 1 | ||||||
| 54 | 818349T1 | SHIFT SPOOL KIT | 1 | 19755A2 | 24 | ||||
| 55 | 15-47397A1 | 700-23220 | SHIM SET, BEARING OUTER RACE | AR | 18,24 | ||||
| 56 | 815362T1 | ADAPTOR ASSEMBLY, Bearing, REVERSE GEAR | 1 | 815362A1 | |||||
| 56 | 828830A2 | ADAPTOR ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.) | 1 | ||||||
| 57 | 31-814653T | BEARING ASSEMBLY, Needle Rollers | 1 | 31-814653 | 18,24 | ||||
| 58 | 12-815481 | THRUST WASHER | 1 | ||||||
| 59 | 31-815480 | BEARING, Thrust | 1 | 18,24 | |||||
| 60 | 43-824700T1 | GEAR ASSEMBLY, Reverse | 1 | 43-815819A1 | This Part is No Longer Available 24 | ||||
| 61 | 31-815482 | BEARING, Roller | 1 | 18,24 | |||||
| 62 | 52-853594T | CLUTCH, SLIDING | 1 | 52-66063 | 24 | ||||
| 63 | 17-30632 | 676-9-78111 | 700-21131 | PIN, Cross, CLUTCH TO PROPELLER SHAFT | 1 | No longer made, limited availability | |||
| 64 | 24-30893 | 676-9-78135 | 700-11050 | SPRING, REATINER - CROSS PIN | 1 | ||||
| 65 | 44-8146061 | PROPELLER SHAFT | 1 | ||||||
| 65 | 44-824111 | PROPELLER SHAFT (Used In Generation II Service Replacement Gear Housings.) | 1 | ||||||
| 66 | 43-828071A1 | GEAR SET (INCLUDES FORWARD AND PINION GEARS) | 1 | 43-812975A5 | |||||
| 67 | 31-15841 | BEARING, Roller | 1 | 18,24 | |||||
| 69 | 23-1761514 | SPACER SHIM , (.206) | AR | ||||||
| 69 | 23-1761515 | SPACER SHIM , (.208) | AR | ||||||
| 69 | 23-1761516 | SPACER SHIM, (.210) | AR | ||||||
| 69 | 23-1761517 | SPACER SHIM, (.212) | AR | ||||||
| 69 | 23-1761518 | SPACER SHIM, (.214) | AR | ||||||
| 69 | 23-1761519 | SPACER SHIM, (.216) | AR | ||||||
| 69 | 23-1761520 | SPACER SHIM, (.218) | AR | ||||||
| 69 | 23-1761521 | SPACER SHIM, (.220) | AR | ||||||
| 69 | 23-1761522 | SPACER SHIM, (.222) | AR | ||||||
| 69 | 23-1761523 | SPACER SHIM, (.224) | AR | ||||||
| 69 | 23-1761526 | SPACER SHIM, (.230) | AR | ||||||
| 69 | 23-1761525 | SPACER SHIM, (.228) | AR | ||||||
| 69 | 23-1761526 | SPACER SHIM, (.230) | AR | ||||||
| 70 | 12-17616 | THRUST RING | 1 | ||||||
| 70 | 12-815481 | THRUST WASHER (Used In Generation II Service Replacement Gear Housings.) | 1 | ||||||
| 71 | 25-31534 | O-RING, BEARING CARRIER | 1 | 18,24,3 | |||||
| 72 | 814604T1 | ADAPTOR ASSEMBLY, Bearing | 1 | 814604A1 | This Part is No Longer Available | ||||
| 72 | 828831A3 | ADAPTOR ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.) | 1 | ||||||
| 73 | 31-814653T | BEARING ASSEMBLY, Needle Rollers | 1 | 31-814653 | 18,24 | ||||
| 74 | 12-18448 | THRUST WASHER | 2 | ||||||
| 75 | 31-15842 | BEARING, Thrust | 2 | 18,24 | |||||
| 76 | 815570 | THRUST RACE | 2 | This Part is No Longer Available | |||||
| 77 | 814605 | KEEPER | 2 | ||||||
| 78 | 14587A7 | CARRIER ASSEMBLY, Bearing | 1 | 14587A5 | |||||
| 78 | 818290A6 | CARRIER ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.) | 1 | ||||||
| 79 | 31-30956T | BEARING, Needle, BEARING CARRIER | 1 | 31-30956 | 18,24 | ||||
| 80 | 26-14077 | SEAL, Oil (INSIDE) | 1 | ||||||
| 81 | 26-12224 | SEAL, Oil (OUTSIDE) | 1 | 18,24,3 | |||||
| 82 | 14-18323 | TAB WASHER, GEAR HOUSING COVER | 1 | 18,24 | |||||
| 83 | 8M2011027 | RETAINER, GEAR HOUSING | 1 | 79448 | |||||
| 84 | 13-423511 | LOCKWASHER, Toothed, PROPELLER SHAFT | 1 | ||||||
| 85 | 12-835467Q01 | 700-21301 | THRUST HUB (FOR USE W/ BLACK MAX PROPELLERS) | 1 | 13171 | ||||
| 85 | 56292Q04 | THRUST HUB AND WASHER ASSEMBLY (FOR USE W/M/C I PROPELLERS) | 1 | 56292A2 | |||||
| 86 | 12-31211Q03 | WASHER, Splined, PROPELLER SHAFT | 1 | 12-31211A2 | |||||
| 87 | 14-816629Q | 700-21200 | TAB WASHER, PROPELLER NUT | 1 | 14-31210 | ||||
| 88 | 11-52707Q1 | PROP NUT KIT, (.750-16), PROPELLER | 1 | 11-52707A1 | |||||
| 89 | 31640Q4 | TRIM TAB ASSEMBLY, GEAR HOUSING (2-3/8 inch) | 1 | 31640A1 | |||||
| 89 | 34127T2 | TRIM TAB ASSEMBLY, GEAR HOUSING (4 inch) | OPT | 34127A1 | THIS TRIM TAB CANNOT BE USED WITH BLACK MAX PROPELLERS | ||||
| 90 | 10-32470 | SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING | 1 | ||||||
| 91 | 10-30206 | SCREW, (.375-16 x 1.00) Stainless Steel, GEAR HOUSING TO DRIVE SHAFT HOUSING | 1 | ||||||
| 92 | 11-859116 | NUT, (.4375-20), DRIVE SHAFT HOUSING STUD | 2 | 11-134391 | |||||
| - | 31-803092T1 | BEARING AND SEAL KIT | 1 | This Part is No Longer Available | |||||
| - | 43-803093T1 | GEAR KIT, Lower | 1 |
