R-MR-Alpha One (Sterndrive) 1983-1990 - Serial 6225577 Thru 0D469858 - Mercathode Kit

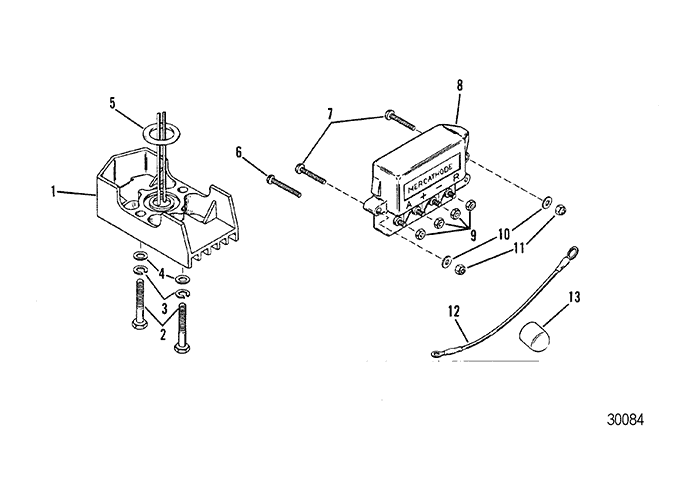

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Auto Trim Components
- Bell Housing
- Continuity Kit
- Drive Unit Chart
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Gear Housing (Driveshaft) - (Counter Rotation)
- Gear Housing (Driveshaft) - MR
- Gear Housing (Driveshaft) - R
- Gear Housing (Propeller Shaft) - MR
- Gear Housing (Propeller Shaft) -(Counter Rotation)
- Gear Housing, Propeller Shaft - R
- Gimbal Housing Square-Splined Upper Swivel Shaft
- Gimbal Housing Square-Square Upper Swivel Shaft
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket Oildyne Pump- Plastic Reservoir
- Hydraulic Pump And Bracket Oildyne Pump-Metal Reservoir
- Hydraulic Pump And Bracket Pretolite Pump
- Hydraulic Pump Oildyne Pump - Metal Reservoir
- Hydraulic Pump Oildyne Pump- Plastic Reservoir
- Hydraulic Pump Prestolite Pump
- Mercathode Kit
- Power Steering Components
- Power Trim Cylinder Repair Kits
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98869A17 | ELECTRODE ASSEMBLY (BLACK) | 1 | 98869A11 | |||||
| 1 | 98869A14 | MERCATHODE SYSTEM (OYSTER) | 1 | ||||||
| 2 | 10-69067 | SCREW, (.250-20 x 1.375), ELECTRODE | 2 | ||||||
| 3 | 13-26992 | LOCKWASHER, (.250) Stainless Steel, ELECTRODE SCREW | 2 | ||||||
| 4 | 12-29245 | 700-21490 | WASHER, (.281 x .500 x .060) Stainless Steel, ELECTRODE SCREW | 2 | |||||
| 5 | 25-88388 | O-RING | 1 | ||||||
| 6 | 10-72202 | 700-22312 | SCREW, (#10-32 x 1.25) | 1 | |||||
| 7 | 10-24637 | SCREW, (#10-32 x .875) | 2 | This Part is No Longer Available | |||||
| 8 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 9 | 11-68219 | NUT, (#10-32) Stainless Steel | 4 | ||||||
| 10 | 12-21273 | WASHER | 2 | ||||||
| 11 | 11-46438 | NUT, (#10-32) | 2 | ||||||
| 12 | 84-88543A3 | CABLE ASSEMBLY | 1 | ||||||
| 13 | 44574T | CAP | 1 | 44574 |
