500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Crankshaft - Pistons - Connecting Rods

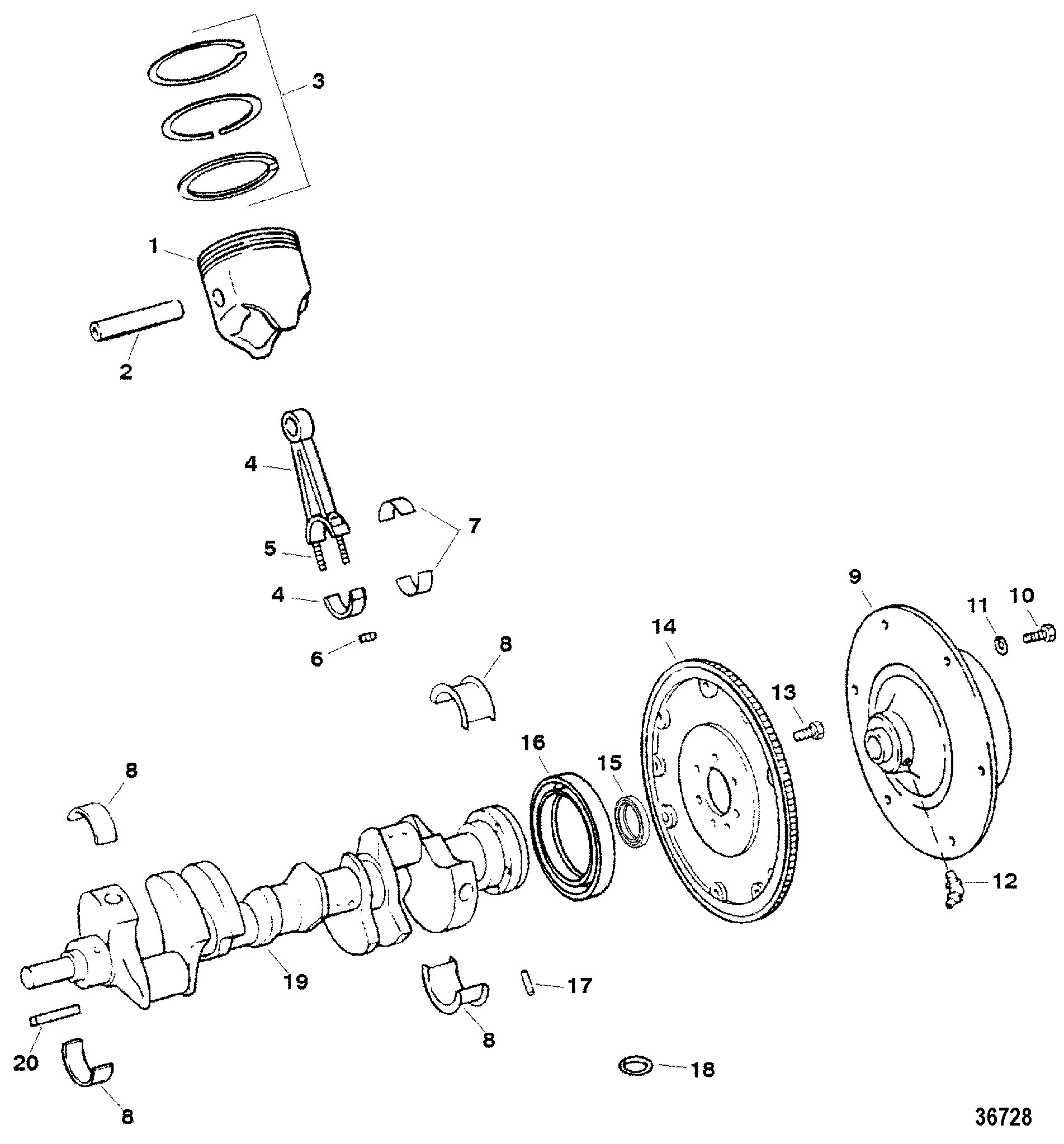

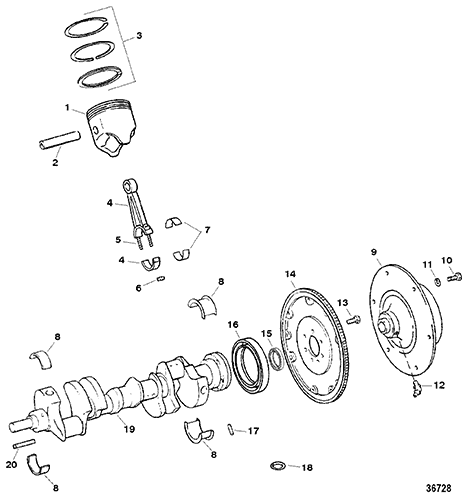

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 737-827664 | PISTON ASSEMBLY, Standard | 8 | (NOTE: Piston Wrist Pins That Come With Piston Must Replace With This Part | 41-848819T) 5 | |||||
| 1 | 737-827665A1 | PISTON ASSEMBLY, .030 Oversize | 8 | This Part is No Longer Available (NOTE: Piston Wrist Pins That Come With Piston Must Replace With This Part 41-848819T) No longer made, limited availability | ||||||
| 2 | 41-848819T | PIN, Piston | 8 | (NOTE: Piston Wrist Pins That Come With Piston Must Replace With This Part | 41-848819T) 5 | |||||
| 3 | 39-827660T | RING SET, Piston - Standard | 8 | 39-827660 | 5 | |||||
| 3 | NSS | NOT SOLD SEPARATE, RING SET, Piston | 8 | This Part is not sold separately (.030 Oversize) (NOTE: Sold With Oversize Piston Only) | ||||||
| 4 | 614-9641T | CONNECTING ROD ASSEMBLY | 8 | 5 | ||||||
| 5 | 10-19234 | SCREW, (.437-20), Connecting Rod Cap | 16 | |||||||
| 6 | 11-58056 | NUT, Connecting Rod Cap Bolt (.437-20) | 16 | No longer made, limited availability | ||||||
| 7 | 23-85726001 | BEARING SET, Conn Rod - Standard | 8 | 23-85726 | 5 | |||||
| 7 | 23-85727 | BEARING SET, Conn Rod - .001 Undersize | AR | 5 | ||||||
| 7 | 23-85728 | BEARING SET, Conn Rod - .002 Undersize | AR | This Part is No Longer Available 5 | ||||||
| 7 | 23-85691 | BEARING SET, Conn Rod - .010 Undersize | AR | 5 | ||||||
| 7 | 23-85729 | BEARING SET, Conn Rod - .020 Undersize | AR | 5 | ||||||
| 8 | 23-818473001 | BEARING SET, Main - Standard | 1 | 23-818473 | 5 | |||||
| 8 | 23-818474 | BEARING SET, Main - .001 Undersize | AR | 5 | ||||||
| 8 | 23-818475 | BEARING SET, Main - .002 Undersize | AR | 5 | ||||||
| 8 | 818476001 | BEARING SET, Main - .010 Undersize | AR | 23-818476 | 5 | |||||
| 8 | 23-818477 | BEARING SET, Main - .020 Undersize | AR | 5 | ||||||
| 9 | 861523A9 | COUPLER ASSEMBLY, Engine | 1 | 18311A17 | ||||||
| 10 | 10-35091 | SCREW, (.375-16 x 1.00) | 6 | |||||||
| 11 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 | |||||||
| 12 | 22-49099 | FITTING, Grease | 2 | |||||||
| 13 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 10-49845 | 5 | |||||
| 14 | 230-843374T1 | FLYWHEEL | 1 | 230-811561 | 5 | |||||
| 15 | 23-823108 | BUSHING, Crankshaft Pilot | 1 | (Driveline Models Only) 5 | ||||||
| 16 | 26-811554 | SEAL, Oil | 1 | 2,5 | ||||||
| 17 | 17-843378 | PIN, Dowel (.250 Diameter) | 1 | 17-35312 | 5 | |||||
| 18 | 25-69756 | O-RING, (.500 Inch) | 1 | 25-811528 | (#5 Bearing Cap Oil Hole) 2,5 | |||||
| 19 | 429-843083T | CRANKSHAFT | 1 | 429-811550 | 5 | |||||
| 20 | 28-845607 | KEY, Crankshaft | 2 | 28-811558 | 5 | |||||
| - | 27-818572A98 | GASKET SET, Engine Overhaul | 1 |
