500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Sea Water Pump Assembly

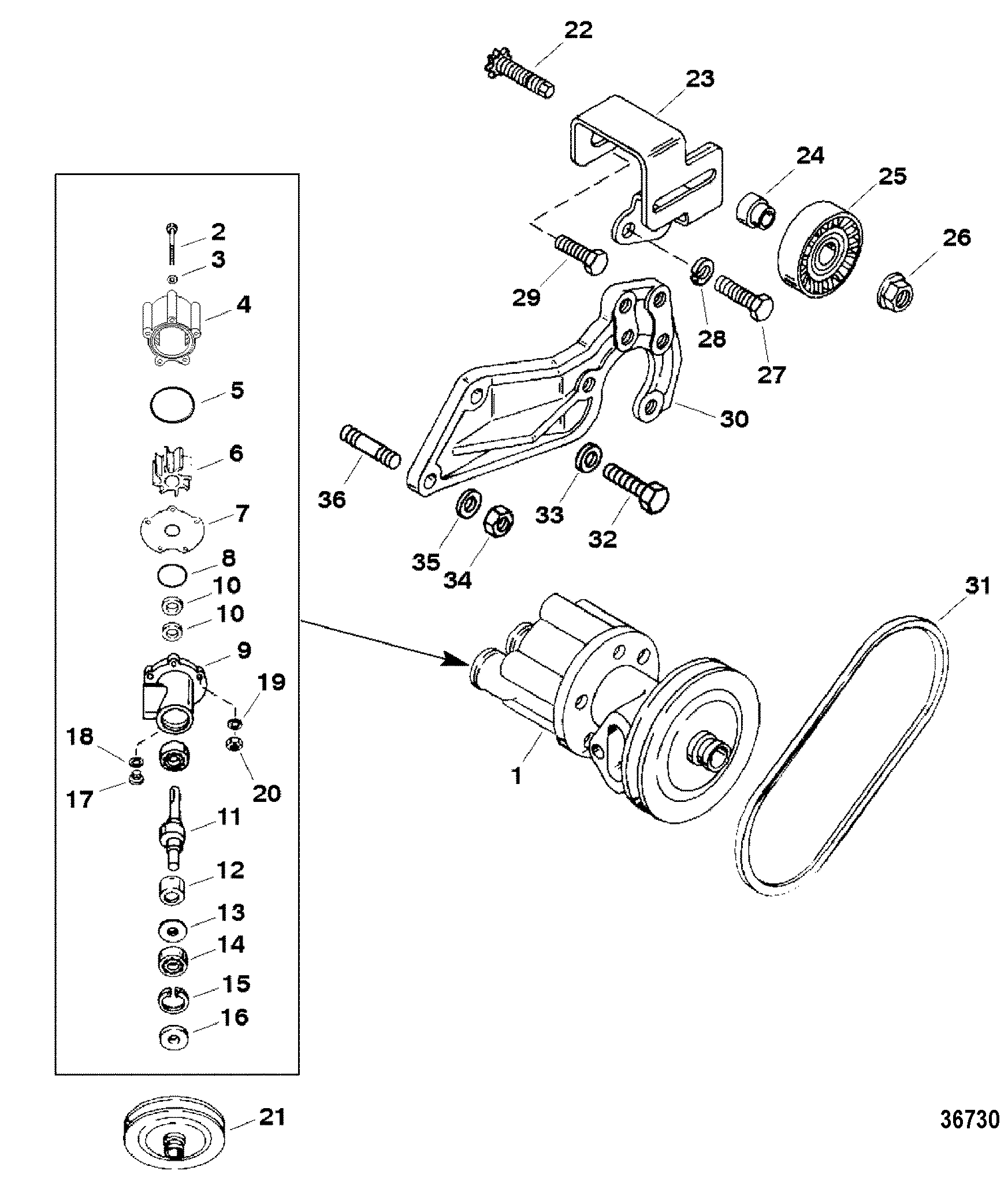

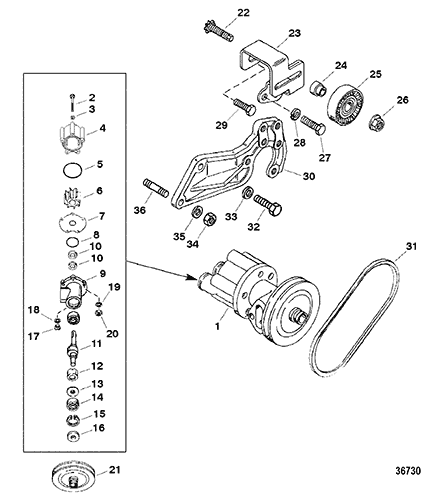

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-807151A8 | PUMP ASSEMBLY, Sea Water | 1 | ||||||
| 2 | 10-74822 | SCREW, (.312-18 x 3.500) | 5 | ||||||
| 3 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 5 | |||||
| 4 | 46-807151A14 | 676-9-48350 | BODY/IMPELLER KIT, Sea Water Pump | 1 | |||||
| 5 | 25-33465 | 676-9-76516 | 700-81430 | 525-25-33465 | O-RING | 1 | |||
| 6 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | |||
| 7 | 94576 | 700-12501 | WEAR PLATE | 1 | |||||
| 8 | 25-94288 | QUAD RING | 1 | ||||||
| 9 | 818367A1 | HOUSING ASSEMBLY, Sea Water Pump | 1 | ||||||
| 10 | 26-90562 | 676-9-76107 | 700-85080 | SEAL, (1.254 x .312), Oil | 2 | ||||
| 11 | 818366A1 | SHAFT KIT, Sea Water Pump | 1 | ||||||
| 12 | 818745A1 | RING KIT, Slip | 1 | ||||||
| 13 | 12-89664 | WASHER, (.920 x 1.750 x .060) | 1 | ||||||
| 14 | 30-72961 | 676-9-43220 | BEARING, Ball | 2 | |||||
| 15 | 53-23720 | RING, Retaining | 1 | ||||||
| 16 | 26-806930 | SEAL, Oil | 1 | ||||||
| 17 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) , Drain | 1 | 10-79953A2 | |||||
| 18 | 12-191833 | 525-12-191833 | WASHER, Fiber, Seal | 1 | 12-19183 | ||||
| 19 | 13-39107 | 700-21496 | LOCKWASHER, (.312) | 5 | |||||
| 20 | 11-21908 | NUT, (.312-18) Cad Plated | 5 | ||||||
| 21 | 8183651 | PULLEY (Blue) | 1 | ||||||
| 22 | 43-8183812 | PINION STUD, (.437-20) Stainless Steel | 1 | ||||||
| 23 | 818379T | BRACKET, Idler | 1 | ||||||
| 24 | 865193 | BUSHING, Idler Pulley | 1 | 818380T | |||||
| 25 | 8M6500024 | PULLEY, Idler | 1 | 818382 | |||||
| 26 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 1 | 11-817618 | ||||
| 27 | 10-76926 | SCREW, (.375-16 x .875) | 2 | ||||||
| 28 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 2 | |||||
| 29 | 10-17965 | SCREW, (.437-14 x .70) | 1 | ||||||
| 30 | 818368T1 | BRACKET, Sea Water Pump | 1 | ||||||
| 31 | 57-69143Q | V BELT | 1 | 57-69143T | |||||
| 32 | 10-47462 | SCREW, (.437-14 x 1.250) | 1 | ||||||
| 33 | 13-32993 | LOCKWASHER, (.437) | 1 | ||||||
| 34 | 11-22024 | NUT, (.437-14) | 1 | ||||||
| 35 | 13-32993 | LOCKWASHER, (.437) | 1 | ||||||
| 36 | 16-806591 | STUD | 1 |
