500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Flywheel Housing (Driveline)

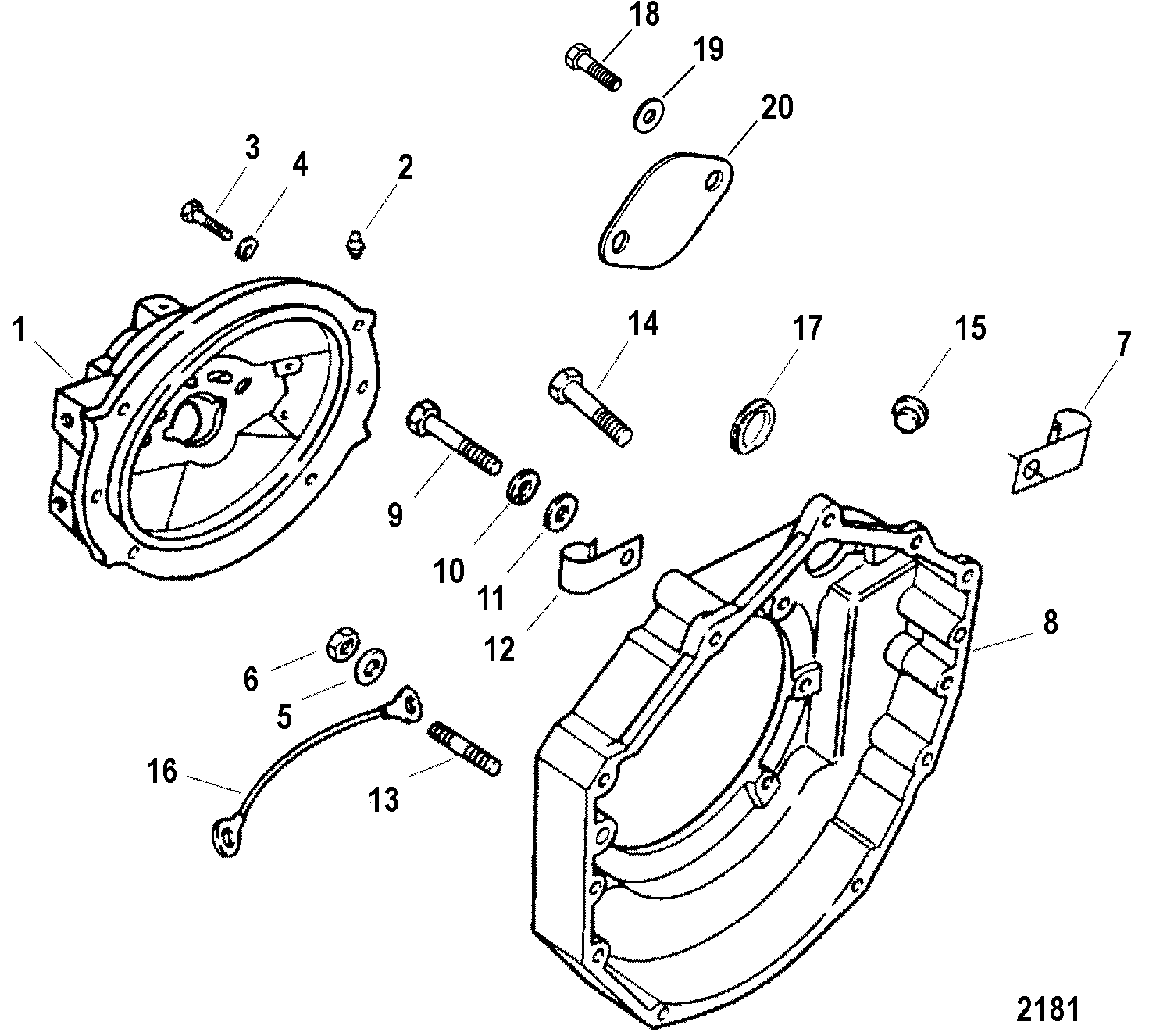

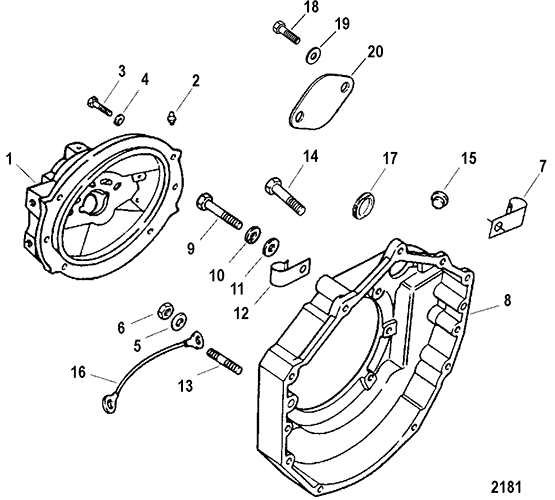

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 93911A4 | HOUSING ASSEMBLY, Shaft Extension Support | 1 | ||||||
| 2 | 22-74036 | FITTING, Grease | 1 | ||||||
| 3 | 10-47651 | SCREW, (.437-14 x 1.50) | 6 | ||||||
| 4 | 13-32993 | LOCKWASHER, (.437) | 6 | ||||||
| 5 | 12-20553 | 700-21675 | WASHER, (.406 x .734 x .063) | 5 | |||||
| 6 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 7 | 54-62494 | CLIP | 1 | ||||||
| 8 | 44187T | HOUSING, Flywheel | 1 | ||||||
| 9 | 10-37612 | SCREW, (.375-16 x 1.250) | 1 | ||||||
| 9 | 10-58642 | SCREW, (.375-16 x 1.50) Stainless Steel | 1 | ||||||
| 9 | 10-68299 | SCREW, (.375-16 x 3.00) Stainless Steel | 2 | ||||||
| 10 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 | ||||||
| 11 | NA | NOT AVAILABLE, Not included with this model | 1 | ||||||
| 12 | 54-78945 | J CLAMP, Harness Support | 2 | ||||||
| 13 | 16-64066 | STUD, (.375-16 x 2.750) Special | 2 | ||||||
| 14 | 10-34353 | 525-10-34353 | SCREW, (.375-16 x 1.00) | 1 | |||||
| 15 | 19-38606 | CAPLUG, (#10) | 1 | ||||||
| 16 | 84-62826A6 | CABLE ASSEMBLY, Ground (13.00 Inches) Black | 2 | ||||||
| 17 | 19-12304 | PLUG, Timing Window | 2 | ||||||
| 18 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 2 | ||||||
| 19 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | |||||
| 20 | 939201 | PLATE, Cover | 1 |
