500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Driveshaft Extension Components(Bravo)

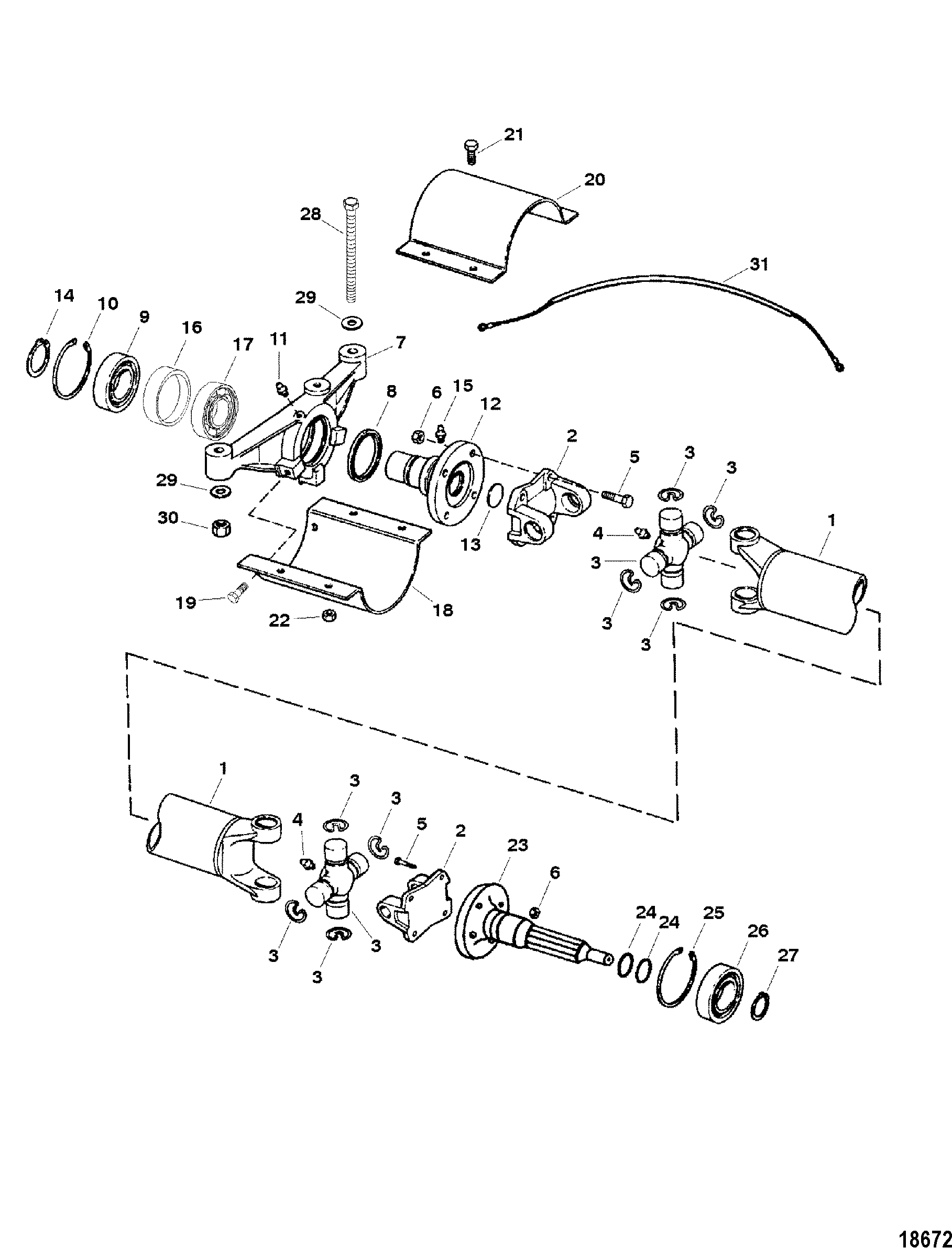

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 45-94819T5 | DRIVESHAFT ASSEMBLY, (34.50 Inches) | 1 | ||||||
| 2 | 52504T | FLANGE, Yoke | 2 | ||||||
| 3 | 61221T | CROSS AND BEARING, With Clips | 2 | ||||||
| 4 | 22-74036 | FITTING, Grease | 2 | ||||||
| 5 | 10-805159 | SCREW, (.437-20 x 1.500) | 8 | ||||||
| 6 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 8 | 11-82671015 | ||||
| 7 | 817416A4 | HOUSING ASSEMBLY, Bearing | 1 | ||||||
| 8 | 26-93924 | SEAL, Oil | 1 | ||||||
| 9 | 30-93944A2 | BEARING, Ball | 1 | 30-93944A1 | |||||
| 10 | 53-93914 | RING, Retaining | 1 | ||||||
| 11 | 22-74036 | FITTING, Grease | 1 | ||||||
| 12 | NSS | NOT SOLD SEPARATE, Input Shaft | 1 | This Part is not sold separately | |||||
| 13 | 19-93921 | EXPANSION PLUG | 1 | ||||||
| 14 | 53-93915 | RING, Retaining | 1 | ||||||
| 15 | 22-74036 | FITTING, Grease | 1 | ||||||
| 16 | 23-817417T | SPACER, Bearing | 1 | ||||||
| 17 | 30-88957T | BEARING, Ball | 1 | ||||||
| 18 | 93918A1 | SHIELD, Lower, Lower | 2 | NOTE: Quantity Of 1 Included With 817416A4 | |||||
| 19 | 10-76926 | SCREW, (.375-16 x .875) | 6 | NOTE: Qtantity Of 3 Included With 871416A4 | |||||
| 20 | 93919A1 | SHIELD, Upper, Upper | 2 | ||||||
| 21 | 10-76926 | SCREW, (.375-16 x .875) | 8 | ||||||
| 22 | 11-82670912 | NUT, (.375-16) Stainless Steel | 8 | ||||||
| 23 | 93906A2 | SHAFT, Output | 1 | ||||||
| 24 | 25-29845 | O-RING, (.924 x .103) | 2 | ||||||
| 25 | 53-94104 | RING, Retaining | 1 | ||||||
| 26 | 879194A03 | BEARING, Ball | 1 | 30-62780T | |||||
| 27 | 53-841897T | RING, Retaining | 1 | ||||||
| 28 | 10-57053 | SCREW, (.500-20 x 4.500) | 2 | ||||||
| 29 | 12-42307 | WASHER, Spherical | 4 | ||||||
| 30 | 11-898832 | NUT, (.500-20) | 2 | 11-28040 | |||||
| 31 | 84-816943A1 | HARNESS ASSEMBLY, Extension | 1 |
