500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Exhaust Manifold-Elbow

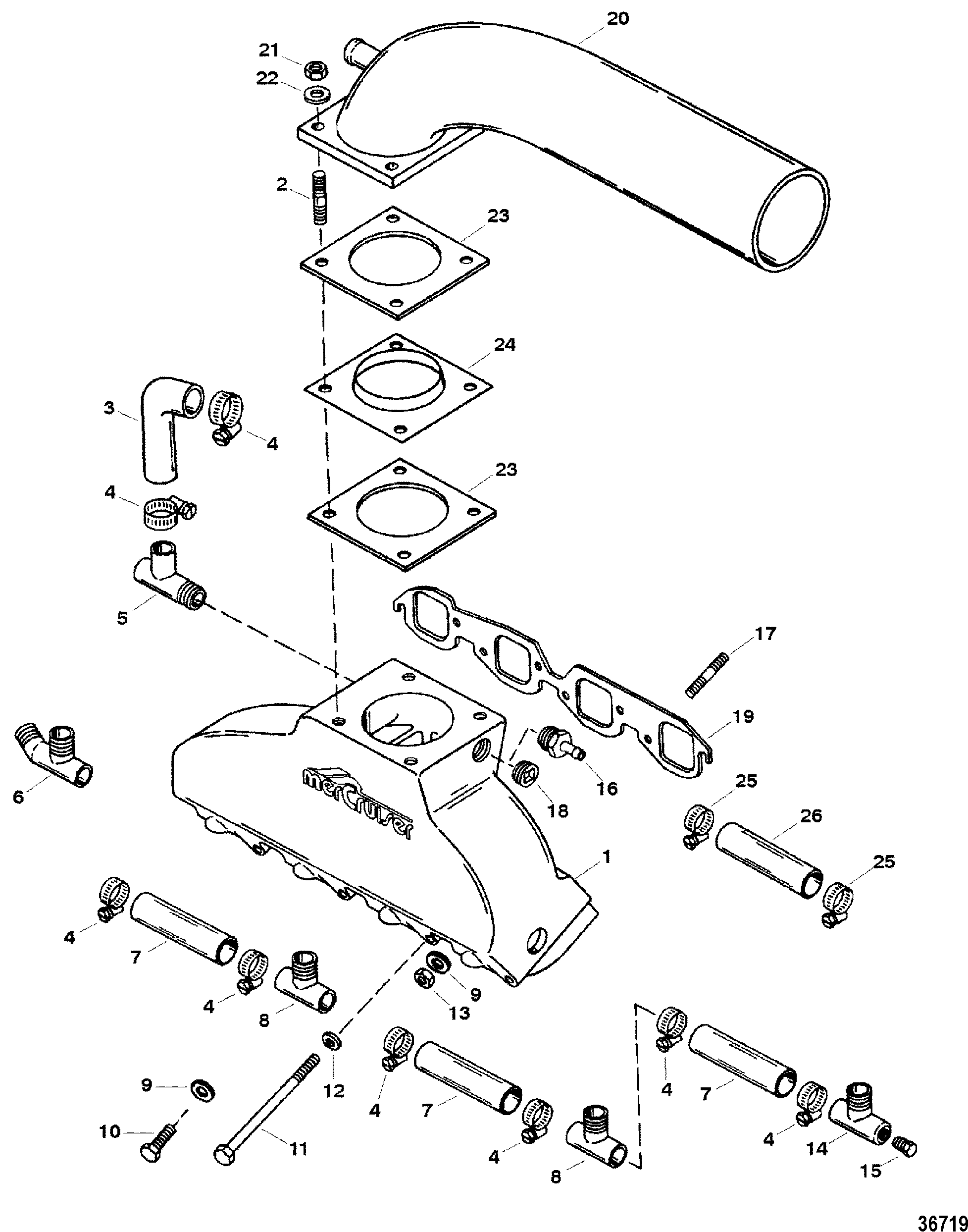

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 814901A5 | MANIFOLD ASSEMBLY, Exhaust - Port | 1 | ||||||
| 1 | 814901T6 | MANIFOLD ASSEMBLY, Exhaust | 1 | (Starboard) | |||||
| 2 | 16-815214 | STUD | 8 | ||||||
| 3 | 32-8152121 | HOSE | 2 | (Manifold To Exhaust Pipe) | |||||
| 4 | 54-815207 | CLAMP | 16 | ||||||
| 5 | 22-816035 | FITTING | 2 | ||||||
| 6 | 22-815210 | FITTING, Tee | 2 | This Part is No Longer Available | |||||
| 7 | 32-815215 | HOSE (3.50 Inches) | 6 | ||||||
| 8 | 22-815208 | FITTING, Tee | 4 | This Part is No Longer Available | |||||
| 9 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 8 | ||||||
| 10 | 10-812567 | SCREW, (.375-16 x 1.625) | 4 | ||||||
| 11 | 10-821107 | SCREW, (.375-16 x 3.00) | 8 | ||||||
| 12 | 12-37828 | 525-12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 8 | |||||
| 13 | 11-25269 | NUT, (.375-24) | 4 | ||||||
| 14 | 22-815209 | FITTING, Tee | 2 | This Part is No Longer Available | |||||
| 15 | 19-815211 | PLUG, Pipe (.250-18) | 2 | This Part is No Longer Available (Drain) | |||||
| 16 | 22-818768 | FITTING (Straight) | 2 | 5 | |||||
| 17 | 16-821279 | STUD (.375-16 x 2.187) | 4 | ||||||
| 18 | 19-815203 | PLUG, Pipe | AR | ||||||
| 19 | 27-46820 | 676-9-61400 | 700-33760 | GASKET, Exhaust | 2 | (Manifold To Head) 2 | |||
| 20 | 844418A1 | TAILPIPE ASSEMBLY, Exhaust | 2 | This Part is No Longer Available (Standard) (Bravo Models) | |||||
| 20 | 818499A1 | TAILPIPE ASSEMBLY, Exhaust | OPT | This Part is No Longer Available (3.00 Inch) (Bravo Models) | |||||
| 20 | 818500A1 | TAILPIPE ASSEMBLY, Exhaust | OPT | (6.00 Inch) (Bravo Models) | |||||
| 20 | 818497A1 | TAILPIPE ASSEMBLY, Exhaust | 2 | This Part is No Longer Available (6.00 Inch) (Driveline Models) | |||||
| 20 | 818495A1 | TAILPIPE ASSEMBLY, Exhaust | OPT | This Part is No Longer Available (Standard) (Driveline Models) | |||||
| 21 | 11-82670912 | NUT, (.375-16) Stainless Steel | 8 | ||||||
| 22 | 12-49112 | WASHER | 8 | This Part is No Longer Available | |||||
| 23 | 27-848147 | GASKET, Exhaust Elbow | 2 | ||||||
| 24 | 816037 | PLATE, Diffuser | 2 | ||||||
| 25 | 54-815504105 | CLAMP, Worm Gear | 2 | ||||||
| 26 | 32-688941 | HOSE, (48.00 Inches Bulk) | 1 | (Cut 13.00 Inches) | |||||
| - | 27-818572A98 | GASKET SET, Engine Overhaul | 1 |
