500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Fuel Pump And Fuel Filter

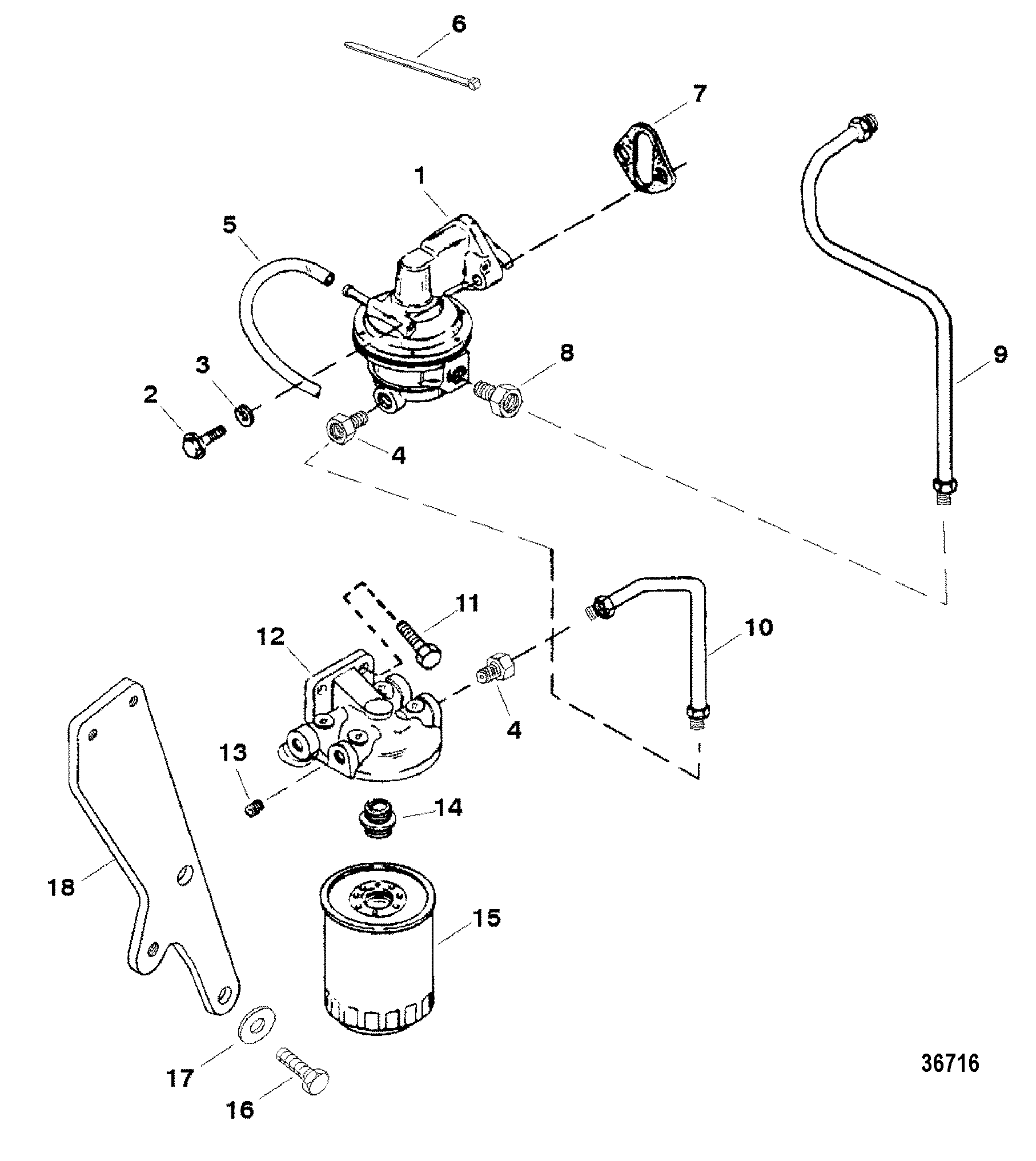

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861677A2 | PUMP ASSEMBLY, Fuel | 1 | ||||||
| 2 | 10-34354 | SCREW, (.375-16 x 1.50) | 2 | ||||||
| 3 | 13-35048 | LOCKWASHER, (.375) | 2 | ||||||
| 4 | 22-93385 | FITTING, (90 Degree) | 2 | ||||||
| 5 | 32-8M8023638 | TUBING (48.00 Inches) | 1 | 32-84862870 | (Fuel Pump To Carburetor) | ||||
| 6 | 56762 | TIE STRAP, (4.00 Inches) | 5 | ||||||
| 7 | 27-34213 | 676-9-61041 | 700-31360 | GASKET, Fuel Pump | 1 | 2 | |||
| 8 | 22-33821 | CONNECTOR | 1 | ||||||
| 9 | 32-848592 | LINE, Fuel | 1 | (Fuel Pump To Carburetor) | |||||
| 10 | 32-848602 | LINE, Fuel | 1 | (Filter To Pump) | |||||
| 11 | 10-849198 | SCREW, (.312-24 x .750) Stainless Steel | 2 | ||||||
| 12 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Seperator | 1 | ||||||
| 13 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 3 | ||||||
| 14 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 15 | 35-802893Q01 | FILTER, Fuel/Water Separator | 1 | 35-807172 | |||||
| 16 | 10-90042 | SCREW, (.437-14 x 1.500) Stainless Steel | 2 | No longer made, limited availability | |||||
| 17 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 18 | 8492261 | BRACKET, Fuel Pump | 1 | ||||||
| - | 27-818572A98 | GASKET SET, Engine Overhaul | 1 |
