500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Senders And Sensors

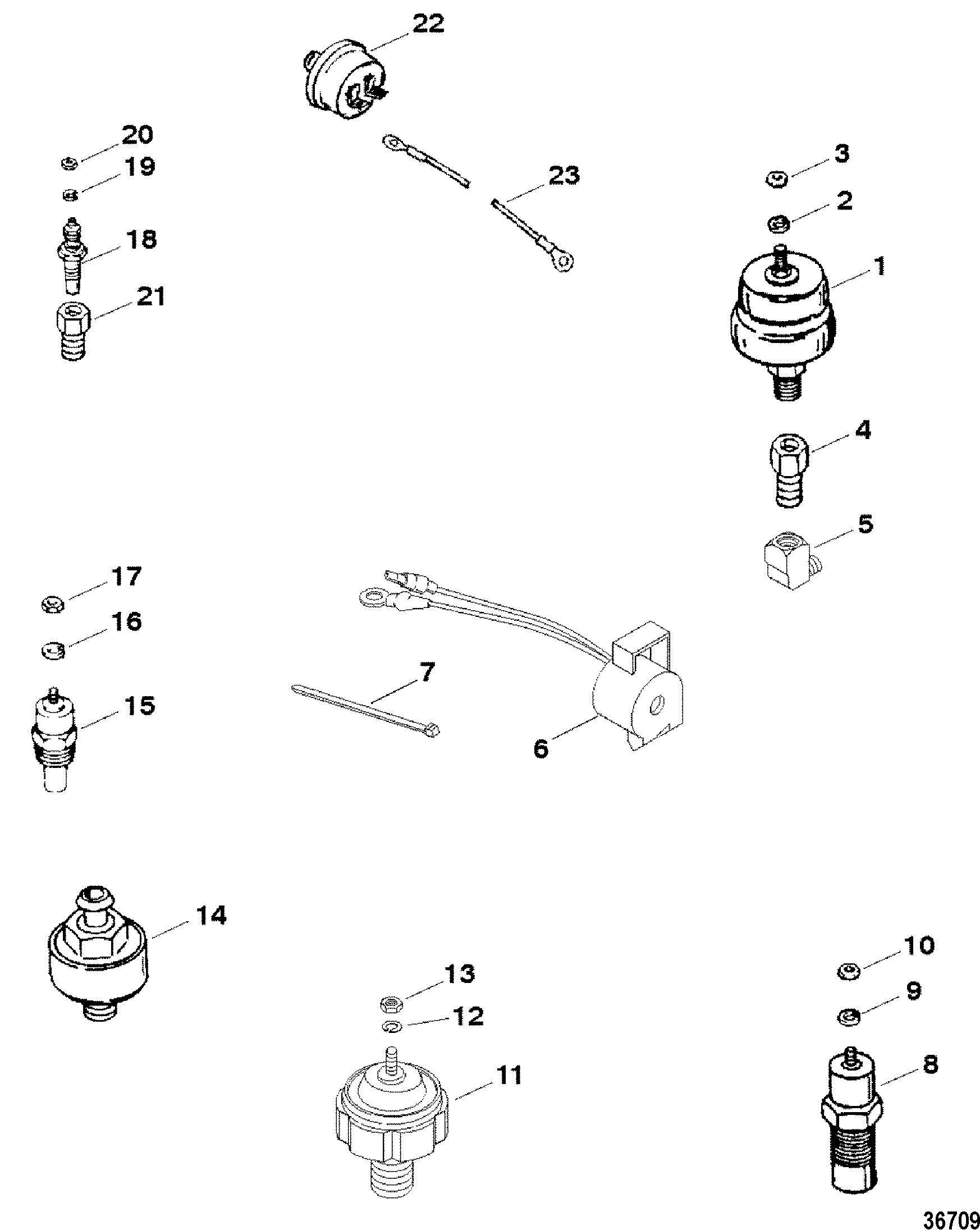

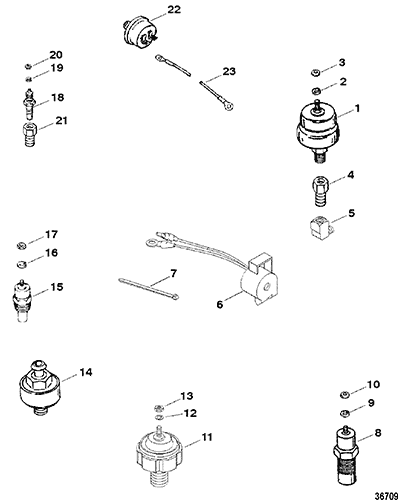

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 87-815425T | (Lower Oil Adapter) (Audio) | ||||
| 1 | 37293T | SENDER ASSEMBLY, Oil Pressure | OPT | (Dual) | |||||
| 2 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 3 | 11-68219 | NUT, (#10-32) Stainless Steel | 1 | ||||||
| 4 | 22-64013 | FITTING, (.375 Male To .125 Female) | 1 | ||||||
| 5 | 22-35580 | FITTING (90 Degree) | 1 | ||||||
| 6 | 816492A6 | ALARM KIT | 1 | ||||||
| 7 | 56762 | TIE STRAP, (4.00 Inches) | 1 | ||||||
| 8 | 48952 | SWITCH ASSEMBLY, Water Temperature | 1 | (Intake Manifold) (Audio) | |||||
| 9 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 10 | 11-45076 | NUT, (#10-32) Brass | 1 | ||||||
| 11 | 87-805605A1 | SWITCH ASSEMBLY, Oil Pressure | 1 | (Back Of Lower Oil Adapter) | |||||
| 12 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 13 | 11-68219 | NUT, (#10-32) Stainless Steel | 1 | ||||||
| 14 | 805544T | 676-9-33500 | SENSOR ASSEMBLY, Knock | 1 | |||||
| 15 | 806490T | 676-9-42400 | SENDER ASSEMBLY, Water Temperature | 1 | 97257A1 | (Thermostat Housing) | |||
| 15 | 49734 | SENDER, Water Temperature | OPT | (Dual) | |||||
| 16 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 17 | 11-68219 | NUT, (#10-32) Stainless Steel | 1 | ||||||
| 18 | 8493631 | SENDER ASSEMBLY, Oil Temperature | 1 | (Front Of Lower Oil Adapter) | |||||
| 18 | 8503671 | SENDER ASSEMBLY, Oil Temperature | OPT | This Part is No Longer Available (Compatible With Gafrig Gauges) | |||||
| 19 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | ||||||
| 20 | 11-45076 | NUT, (#10-32) Brass | 1 | ||||||
| 21 | 22-64013 | FITTING, (.375 Male To .125 Female) | 1 | ||||||
| 22 | 87-94009 | SWITCH, Choke | 1 | ||||||
| 23 | 84-848879A1 | CABLE ASSEMBLY | 1 | (Sendor To Choke) |
