500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Cylinder Head - Rocker Cover

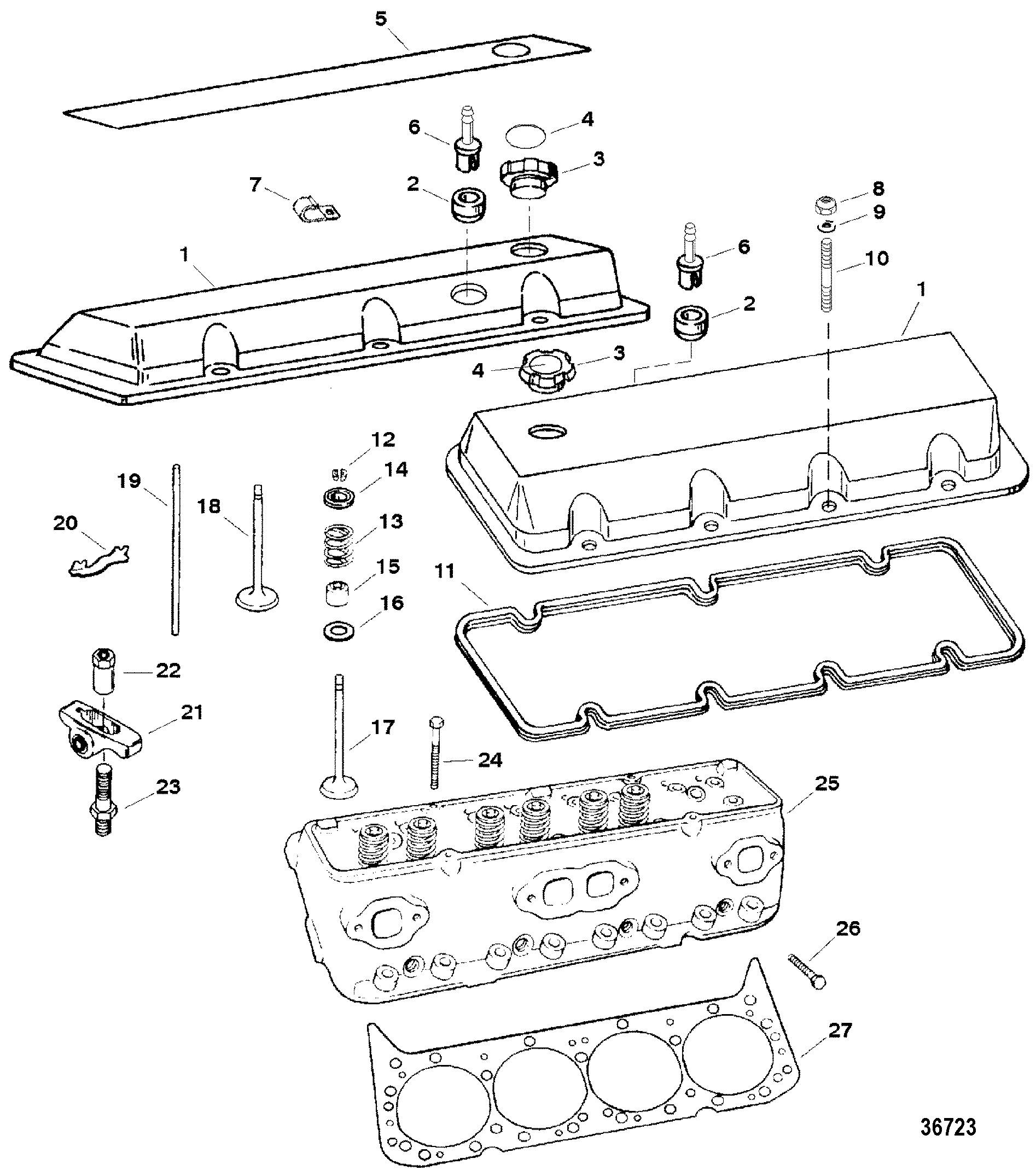

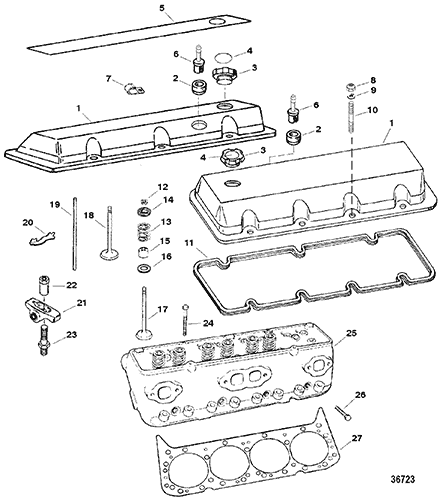

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849702A11 | COVER ASSEMBLY, Rocker Cover (Blue) | 2 | 849702T10 | 5 | ||||
| 2 | 25-811553 | GROMMET, Rocker Cover | 2 | ||||||
| 3 | 845753T1 | CAP, Oil Filler | 2 | 36-802566T | |||||
| 4 | 37-849950 | DECAL, Oil Fill Cap | 2 | ||||||
| 5 | 38-841247 | NAMEPLATE, Rocker Cover | 2 | 38-842184T | |||||
| 6 | 22-8485571 | FITTING | 2 | 5 | |||||
| 7 | 54-642352 | J CLIP | 1 | 5 | |||||
| 8 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 14 | 5 | |||
| 9 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 14 | 5 | |||||
| 10 | 16-56766 | STUD, (.250-20/.250-28 x 1.380), Rocker Cover | 14 | 5 | |||||
| 11 | 27-811588 | GASKET, Rocker Cover | 2 | 2,5 | |||||
| 12 | 8M0042989 | KEY, Valve Stem | 32 | 960281 | 5 | ||||
| 13 | 24-845617A2 | SPRING/RETAINER KIT | 16 | 24-845617A1 | 5 | ||||
| 14 | 843465 | RETAINER | 16 | 845592 | |||||
| 15 | 26-69285 | SEAL, Valve | 8 | (Intake) 2,5 | |||||
| 15 | 26-842755 | SEAL, Valve | 8 | 26-843334 | (Exhaust) 2,5 | ||||
| 16 | 15-845669 | SHIM, Valve Spring (.015) | AR | 15-54531 | 5 | ||||
| 16 | 15-77624 | SHIM, Valve Spring (.030) | AR | 5 | |||||
| 17 | 843080 | VALVE, Exhaust | 8 | 13024 | 5 | ||||
| 18 | 821024T | VALVE, Intake, Inlet (2.250 Diameter) | 8 | (Standard) 5 | |||||
| 19 | 848262 | PUSH ROD, (7.550), Valve Push | 8 | (Inlet) 5 | |||||
| 19 | 848264 | PUSH ROD, (8.550), Valve Push | 8 | (Exhaust) 5 | |||||
| 20 | 845707 | GUIDE, Push Rod | 8 | 811586 | 5 | ||||
| 21 | 845618T | ROCKER ARM ASSEMBLY | 16 | 5 | |||||
| 22 | 11-848610 | NUT, Rocker Arm Valve | 16 | 5 | |||||
| 23 | 16-821836 | STUD, Roacker Arm Valve | 16 | 5 | |||||
| 24 | 10-8M0000482 | BOLT, (4.125 Inch), Cylinder Head | 24 | 10-49105 | 5 | ||||
| 25 | 938-845704T5 | CYLINDER HEAD ASSEMBLY | 2 | 938-826363A10 | 5 | ||||
| 26 | 10-8M0000463 | BOLT (2.00)-Cylinder Head | 8 | 10-491061 | 5 | ||||
| 27 | 27-811546A04 | GASKET, Cylinder Head | 2 | 27-8115462 | 2,5 | ||||
| - | 27-818572A98 | GASKET SET, Engine Overhaul | 1 |
