500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Thermostat Housing

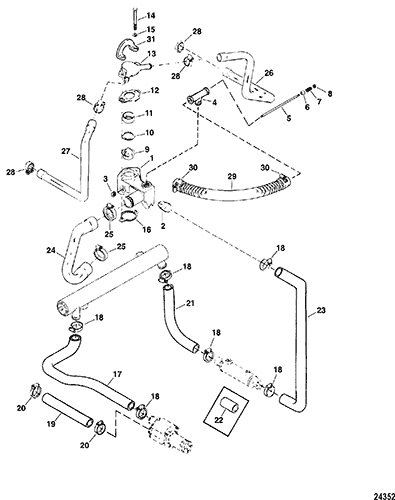

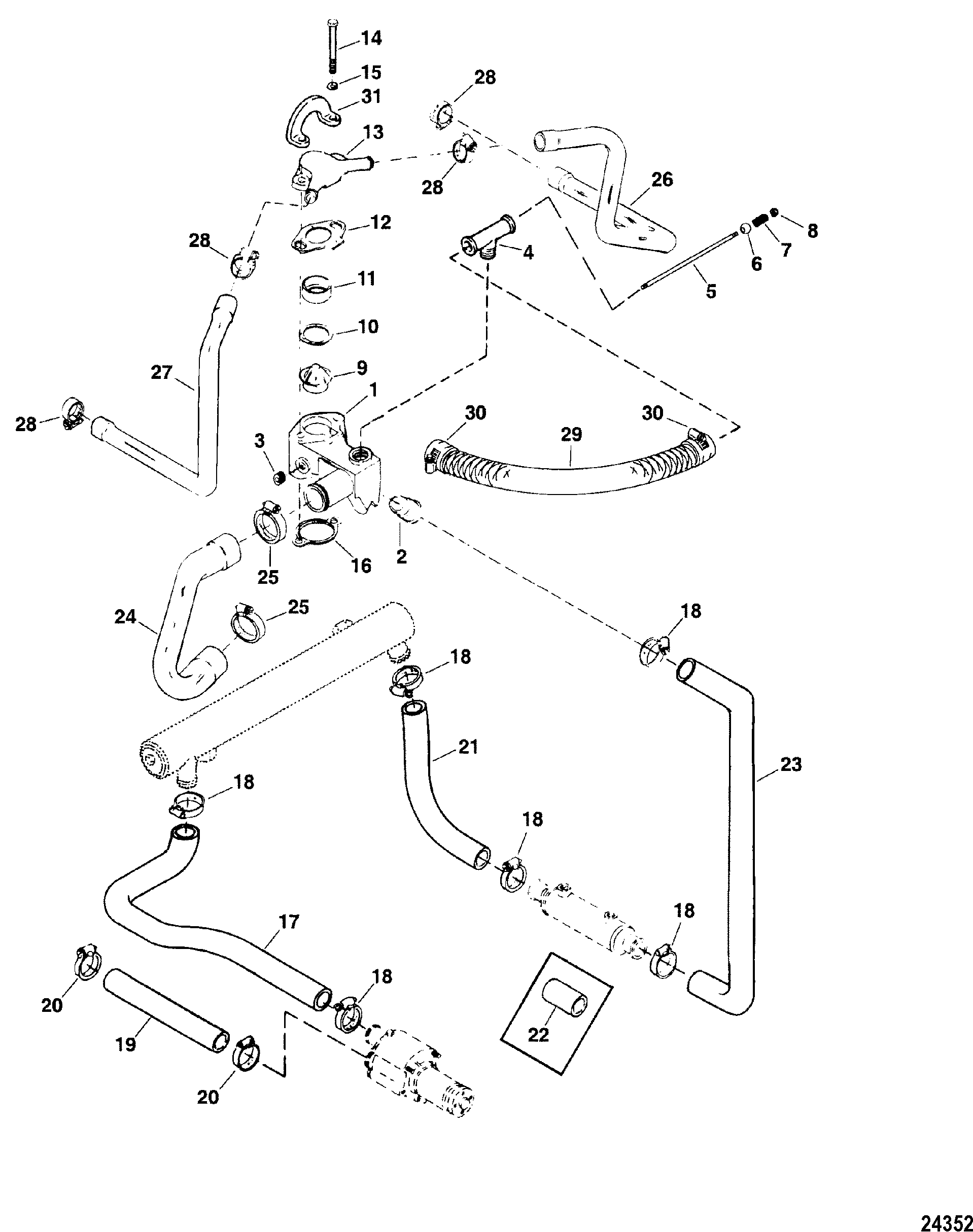

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 87290A4 | HOUSING ASSEMBLY, Thermostat | 1 | ||||||
| 2 | 23-47511 | SLEEVE | 1 | ||||||
| 3 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 2 | |||||
| 4 | 22-98477A2 | VALVE ASSEMBLY | 1 | ||||||
| 5 | 10-98476 | SCREW, (#10-32 x 6.00) | 1 | ||||||
| 6 | 30-98475 | BALL, Nylon | 2 | ||||||
| 7 | 24-75533 | SPRING | 2 | ||||||
| 8 | 11-29488 | 700-21163 | NUT, (#10-32) | 1 | No longer made, limited availability | ||||
| 9 | 807252T1 | THERMOSTAT, 60°C (140°F) | 1 | ||||||
| 10 | 27-47510 | 676-9-60005 | 700-31460 | GASKET, Thermostat | 1 | 2 | |||
| 11 | 23-47508T | SLEEVE, Thermostat | 1 | ||||||
| 12 | 27-418122 | GASKET, Thermostat Cover | 1 | 2 | |||||
| 13 | 47441A1 | COVER, Thermostat | 1 | ||||||
| 14 | 10-14164 | SCREW, (.375-16 x 4.37) | 2 | ||||||
| 15 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 16 | 27-530451 | GASKET, Thermostat Housing | 1 | 2 | |||||
| 17 | 32-849604 | HOSE | 1 | (Sea Water Pump To Cooler) | |||||
| 18 | 54-180766 | CLAMP, Worm Gear | 2 | ||||||
| 19 | 32-1743565 | HOSE, (38.00 Inches Bulk) | 1 | (Plug In Models - Sea Pump To Drive Unit) | |||||
| 19 | 32-13556A1 | HOSE KIT, (10.00 Feet) | 1 | (Driveline Models) | |||||
| 20 | 54-180766 | CLAMP, Worm Gear | 8 | (Plug In Models) | |||||
| 21 | 32-848956 | HOSE, Molded | 1 | (Oil Cooler To Oil Cooler) | |||||
| 22 | 22-13177 | TUBE, Water Hose | 1 | (Non Power Steering) | |||||
| 23 | 32-896998 | HOSE, Molded | 1 | 32-64346 | (Oil Cooler To Thermostat Housing) | ||||
| 24 | 32-897181 | HOSE | 1 | (Thermostat Housing To Water Pump) | |||||
| 25 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 26 | 32-848955 | HOSE, Thermostat Cover | 1 | (Port) | |||||
| 27 | 32-848954 | HOSE, Thermostat Cover | 1 | (Starboard) | |||||
| 28 | 54-180764 | CLAMP, Worm Gear | 4 | ||||||
| 29 | 32-847764A2 | HOSE ASSEMBLY, (17.00 Inches) Stainless Steel Braided | 2 | This Part is No Longer Available | |||||
| 30 | 54-84775218 | COVER, Clamp, Hose | 4 | ||||||
| 31 | 12552 | LIFTING EYE | 1 | ||||||
| NS | 77054 | TIE STRAP, (14.50 Inches) | 3 | ||||||
| - | 27-818572A98 | GASKET SET, Engine Overhaul | 1 |
