7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Alternator (Mando)

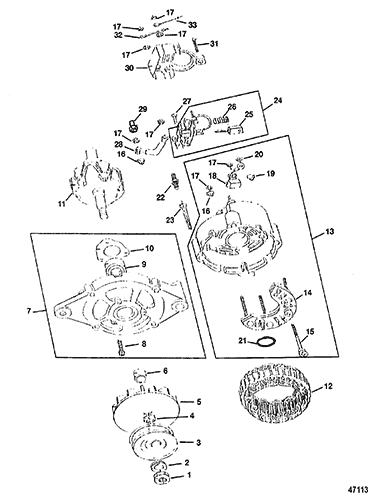

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 805884T | 676-9-19103 | 620-3159M | ALTERNATOR | 1 | ||||
| 1 | 11-809136 | NUT | 1 | ||||||
| 2 | 13-809137 | LOCKWASHER | 1 | ||||||
| 3 | 809134 | PULLEY | 1 | ||||||
| 4 | 23-809135 | SPACER | 1 | ||||||
| 5 | 809139 | FAN ASSEMBLY | 1 | ||||||
| 6 | 23-809140 | SPACER | 1 | ||||||
| 7 | 809151 | BRACKET ASSEMBLY | 1 | ||||||
| 8 | 10-809154 | SCREW | 3 | ||||||
| 9 | 30-809153 | BEARING | 1 | ||||||
| 10 | 809152 | RETAINER | 1 | This Part is no longer available | |||||
| 11 | 809150 | ROTOR | 1 | This Part is no longer available | |||||
| 12 | 809133T | STATOR | 1 | 809133 | |||||
| 13 | 809155 | BRACKET ASSEMBLY | 1 | This Part is no longer available | |||||
| 14 | 809162 | RECTIFIER | 1 | ||||||
| 15 | 10-809160 | SET SCREW | 1 | This Part is no longer available | |||||
| 16 | 809146 | MOLD | 2 | This Part is no longer available | |||||
| 17 | 11-809143 | NUT | 8 | This Part is no longer available | |||||
| 18 | 809161 | CONDENSER | 1 | ||||||
| 19 | 809158 | MOLD | 1 | ||||||
| 20 | 11-809157 | NUT | 1 | ||||||
| 21 | 25-809156 | O-RING | 1 | ||||||
| 22 | 10-809159 | BOLT | 1 | This Part is no longer available | |||||
| 23 | 10-809138 | BOLT | 4 | This Part is no longer available | |||||
| 24 | 811883T | REGULATOR ASSEMBLY | 1 | 809163 | |||||
| 25 | 811884 | BRUSH | 2 | 809164 | |||||
| 26 | 24-809165 | SPRING | 2 | ||||||
| 27 | 10-809141 | SCREW | 2 | This Part is no longer available | |||||
| 28 | 809142 | TERMINAL | 1 | This Part is no longer available | |||||
| 29 | 809149 | CAP | 2 | ||||||
| 30 | 809144 | COVER | 1 | This Part is no longer available | |||||
| 31 | 10-809145 | SET SCREW | 1 | This Part is no longer available | |||||
| 32 | 84-809148 | LEAD WIRE | 1 | This Part is no longer available | |||||
| 33 | 84-809147 | LEAD WIRE | 1 | This Part is no longer available |
