7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Sea Water Pump

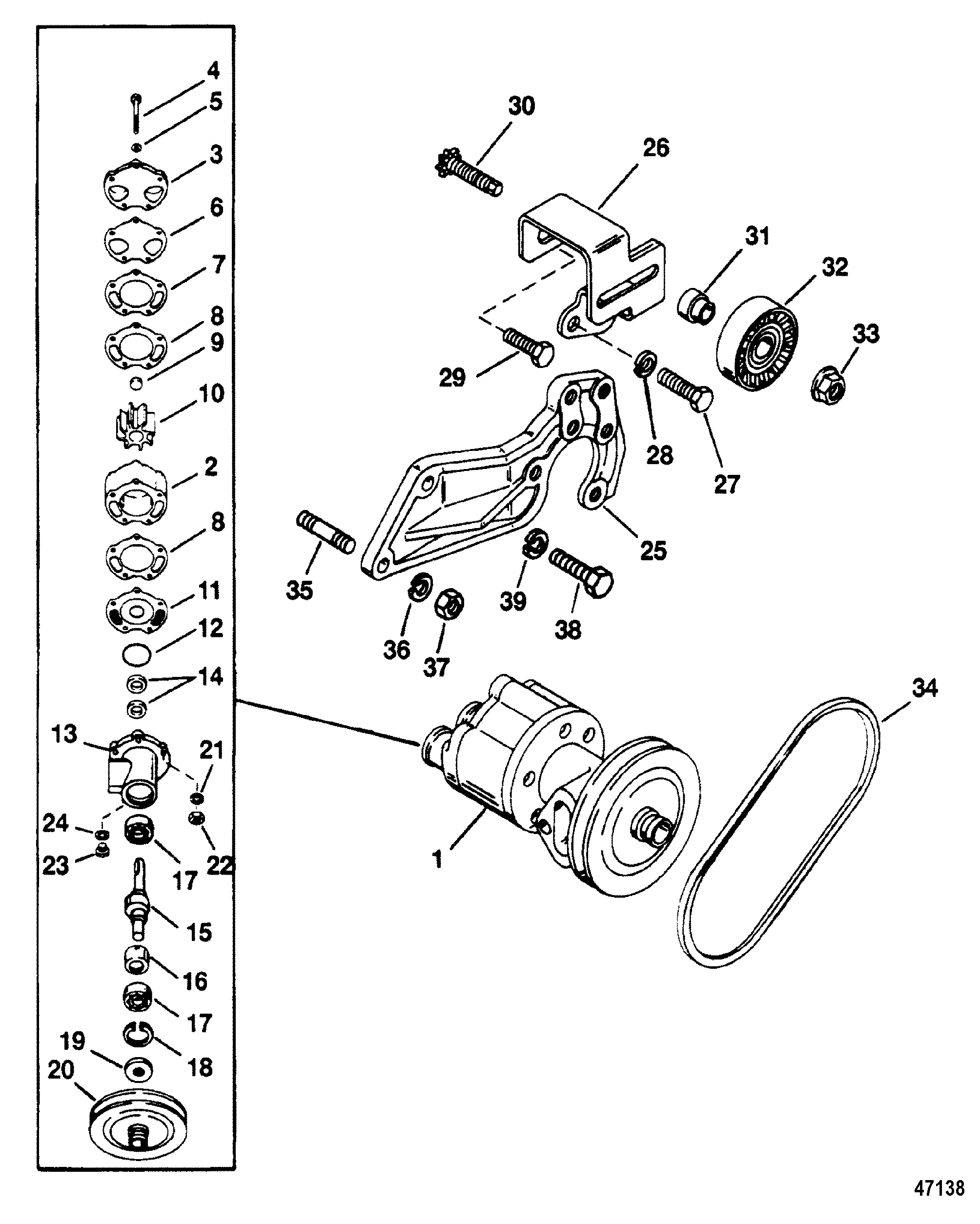

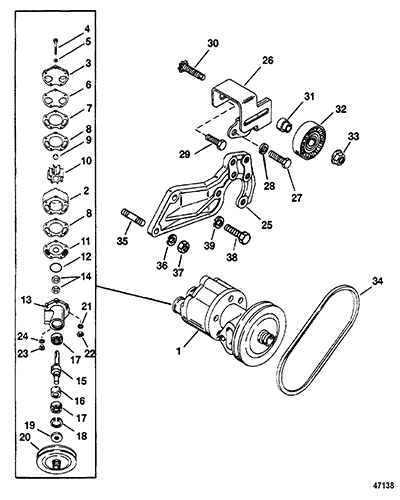

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-807151A8 | PUMP ASSEMBLY, Sea Water - Complete | 1 | 46-72774A69 | |||||
| 2 | 46-72774A40 | BODY ASSEMBLY, Sea Water - Complete | 1 | This Part is no longer available | |||||
| 3 | 87631A4 | COVER KIT | 1 | ||||||
| 4 | 10-99347 | SCREW, (.312-18 x 3.75) | 5 | ||||||
| 5 | 12-20084 | 700-21664 | WASHER, (.328 x .562 x .062) | 5 | |||||
| 6 | 27-8052151 | GASKET | 1 | ||||||
| 7 | 94916 | 700-12502 | WEAR PLATE | 1 | |||||
| 8 | 27-94914 | 700-32730 | GASKET | 2 | |||||
| 9 | 19-59504 | 700-12826 | PLUG | 1 | |||||
| 10 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | 47-593621 | ||
| 11 | 94576 | 700-12501 | 525-94576 | WEAR PLATE | 1 | ||||
| 12 | 25-94288 | 525-94288 | QUAD RING | 1 | |||||
| 13 | 818367A1 | HOUSING ASSEMBLY | 1 | ||||||
| 14 | 26-90562 | 676-9-76107 | 700-85080 | SEAL, (1.254 x .312) | 2 | ||||
| 15 | 818366A1 | SHAFT KIT | 1 | ||||||
| 16 | 818745A1 | RING KIT | 1 | ||||||
| 17 | 30-72961 | 676-9-43220 | BEARING, Ball | 2 | |||||
| 18 | 53-23720 | RING, Retaining | 1 | ||||||
| 19 | 26-806930 | SEAL | 1 | ||||||
| 20 | 818365T | PULLEY | 1 | ||||||
| 21 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 1 | |||||
| 22 | 11-21908 | NUT, (.312-18) Cad Plated | 1 | ||||||
| 23 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) | 1 | 10-79953A2 | |||||
| 24 | 12-191833 | 525-12-191833 | WASHER, Fiber | 1 | 12-19183 | ||||
| 25 | 818368T1 | BRACKET | 1 | ||||||
| 26 | 818379T | 525-818379T | BRACKET | 1 | |||||
| 27 | 10-76926 | SCREW, (.375-16 x .875) | 2 | ||||||
| 28 | 13-35048 | 700-21495 | LOCKWASHER, (.375) | 2 | |||||
| 29 | 10-17965 | SCREW, (.437-14 x .70) | 1 | ||||||
| 30 | 43-8183812 | PINION STUD, (.437-20) Stainless Steel | 1 | ||||||
| 31 | 865193 | BUSHING | 1 | 818380 | |||||
| 32 | 8M6500024 | PULLEY | 1 | 818382 | |||||
| 33 | 11-859135 | 676-9-78116 | NUT, (.437-20) | 1 | 11-817618 | ||||
| 34 | 57-69143Q | V BELT | 1 | 57-69143T | |||||
| 35 | 16-806591 | STUD, (7/16-14) | 1 | ||||||
| 36 | 13-32993 | LOCKWASHER, (.437) | 1 | ||||||
| 37 | 11-22024 | NUT, (.437-14) | 1 | ||||||
| 38 | 10-47462 | SCREW, (.437-14 x 1.250) | 1 | ||||||
| 39 | 13-32993 | LOCKWASHER, (.437) |
