7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Thermostat Housing (Standard Cooling)

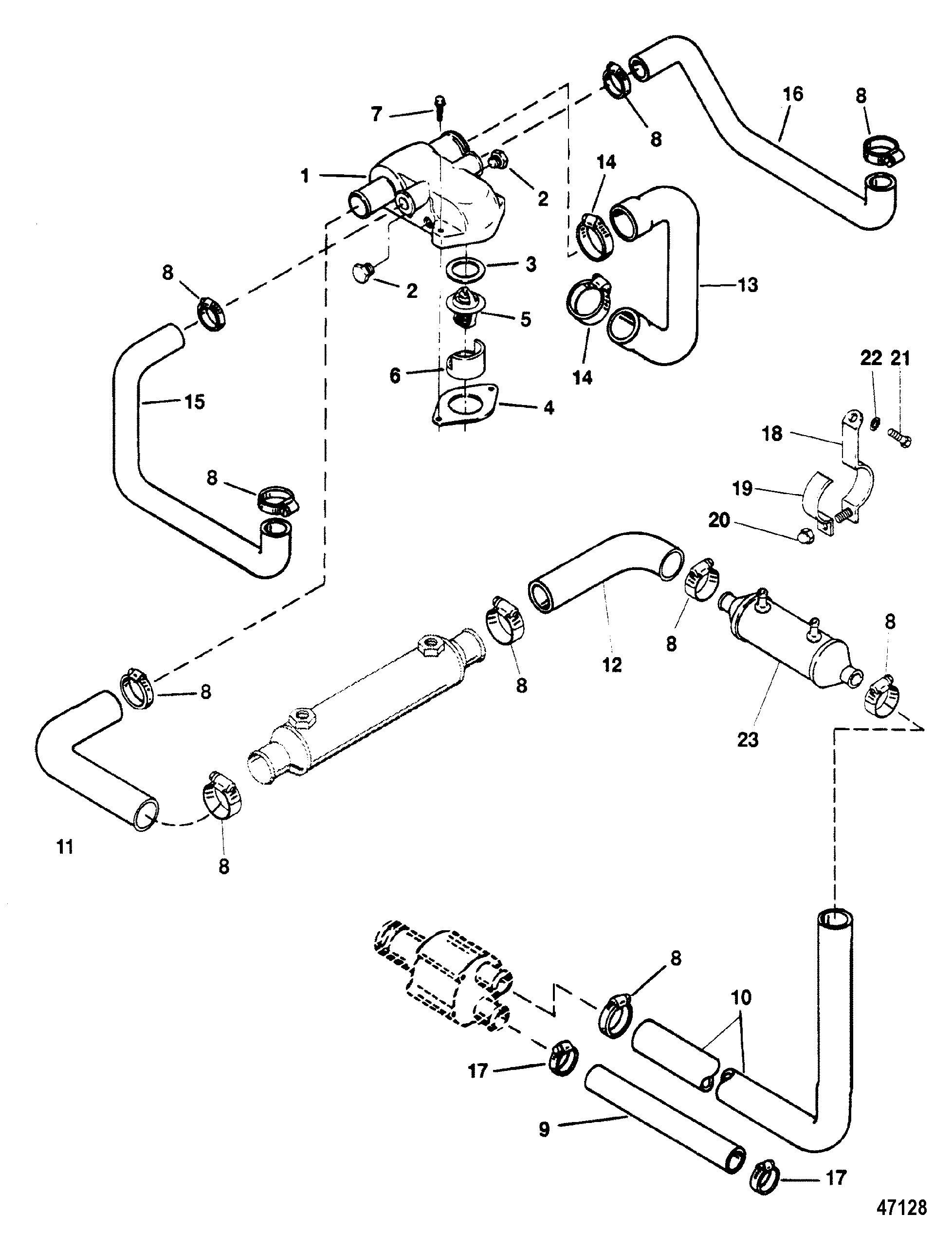

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806235A1 | HOUSING ASSEMBLY, Thermostat | 1 | ||||||
| 2 | 22-32803 | 700-21894 | PLUG, Pipe (.375-18) Brass | 2 | |||||
| 3 | 27-806871 | 700-32700 | GASKET | 1 | 3 | ||||
| 4 | 27-530451 | GASKET | 1 | 3 | |||||
| 5 | 807252T2 | 676-9-43002 | 700-13100 | THERMOSTAT, 71°C (160°F) | 1 | 8072522 | |||
| 6 | 23-806922 | SLEEVE | 1 | ||||||
| 7 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 2 | |||
| 8 | 54-815504220 | CLAMP, Worm Gear | AR | 2 | |||||
| 9 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | 32-1743579 | |||||
| 10 | 32-807404 | HOSE | 1 | ||||||
| 11 | 32-807407 | 676-9-44075 | HOSE | 1 | |||||
| 12 | 32-807405 | HOSE | 1 | ||||||
| 13 | 32-897181 | HOSE | 1 | ||||||
| 14 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 15 | 32-897491 | HOSE (PORT) | 1 | ||||||
| 16 | 32-807201 | 676-9-44087 | HOSE (STARBOARD) | 1 | |||||
| 17 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 2 | ||||||
| 18 | 807402T | BRACKET | 1 | This Part is no longer available | |||||
| 19 | 807445T | CLAMP | 1 | ||||||
| 20 | 11-8267088 | NUT, (.250-20) | 1 | 11-72008 | |||||
| 21 | 10-86750 | SCREW, (.312-18 x .620) | 1 | ||||||
| 22 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 1 | |||||
| 23 | 99356A2 | 542-99356A2 | COOLER ASSEMBLY | 1 | |||||
| - | 27-805396A95 | GASKET SET | 1 |
