7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Electrical Box And Components

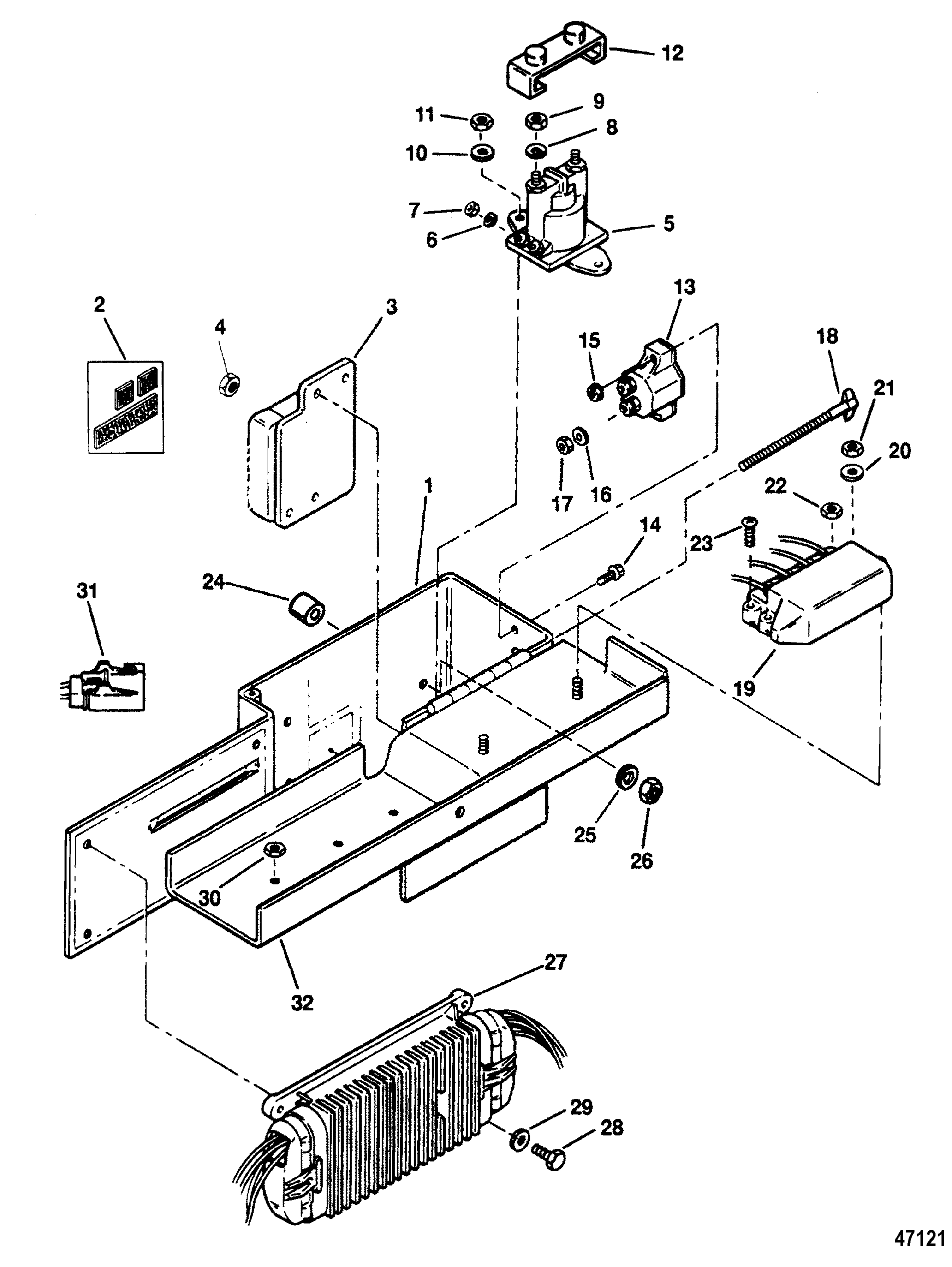

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807323A5 | BOX ASSEMBLY, Electrical Components | 1 | ||||||
| 2 | 806762A1 | VELCRO KIT | 1 | ||||||
| 3 | 805443 | MODULE ASSEMBLY | 1 | 805443T | This Part is no longer available | ||||
| 4 | 11-64015 | NUT, (.250-20) | 1 | ||||||
| 5 | 89-96054T | 700-72390 | SOLENOID ASSEMBLY, Starter | 1 | 89-96054 | ||||
| 6 | 13-26995 | LOCKWASHER, (#8) Stainless Steel (#8) | 1 | ||||||
| 7 | 11-26419 | NUT, (#8-32) Brass (8-32) | 2 | ||||||
| 8 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (1/4 IN.) | 2 | ||||||
| 9 | 11-94330 | NUT, (.250-20) Brass (1/4-20) | 2 | ||||||
| 10 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 2 | ||||||
| 11 | 11-64015 | NUT, (.250-20) | 2 | ||||||
| 12 | 85-97861 | INSULATOR | 1 | ||||||
| 13 | 88-11178A01 | BREAKER, Circuit - 50 Ampere | 1 | 88-11178 | This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. | ||||
| 14 | 10-45862 | SCREW, (#10-32 x .875) | 2 | ||||||
| 15 | 11-61356 | NUT, (#10-32) Reduced Hex | 2 | ||||||
| 16 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 17 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 18 | 805615A2 | THUMB SCREW ASSEMBLY | 1 | This Part is no longer available | |||||
| 19 | 42600A09 | CONTROLLER ASSEMBLY | 1 | 42600A3 | |||||
| 20 | 12-56681 | WASHER, (.203 x .500 x .032) | 3 | ||||||
| 21 | 11-805562 | NUT, (#10-24) | 3 | 11-68219/tr> | |||||
| 22 | 11-68219 | NUT, (#10-32) Stainless Steel | 3 | ||||||
| 23 | 10-62568 | SCREW, (#10-16 x .375) | 1 | ||||||
| 24 | 23-92152T | SPACER, (.27 x .75 x .38) | 3 | 23-92152 | |||||
| 25 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | ||||||
| 26 | 11-64015 | NUT, (.250-20) | 3 | ||||||
| 27 | 807210T5 | ECM, Engine Control Module | 1 | 807210T4 | |||||
| 28 | 10-76596 | SCREW, (.250-20 x 1.250) (1-1/4 IN.) | 4 | ||||||
| 29 | 12-20533 | WASHER | 4 | ||||||
| 30 | 11-805562 | NUT, (#10-24) | 3 | ||||||
| 31 | 88-804642 | FUSE, 15 Ampere (15 AMP) | 1 | 805704 | No longer made, limited availability | ||||
| 31 | 88-804641 | FUSE, 10 Ampere (10 AMP) | 1 | 805703 | |||||
| 32 | 805439T3 | LID, Electrical Box | 1 |
