7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Oil Filter And Adaptor

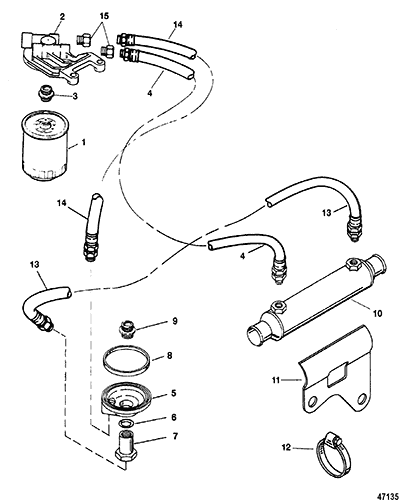

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-866340Q03 | 676-9-57825 | FILTER, Oil | 1 | 14957 | ||||
| 2 | 817403A4 | BRACKET ASSEMBLY | 1 | This Part is no longer available | |||||
| 3 | 22-814822 | FITTING | 1 | ||||||
| 4 | 32-807408 | HOSE | 1 | ||||||
| 5 | 35-818400A1 | ADAPTOR | 1 | ||||||
| 6 | 26-42077 | SEAL | 1 | 3 | |||||
| 7 | 22-806121 | FITTING | 1 | ||||||
| 8 | 27-91892 | 700-32390 | GASKET | 1 | 3 | ||||
| 9 | 22-805632 | CONNECTOR | 1 | ||||||
| 10 | 807371T | 542-807371-T | COOLER | 1 | |||||
| 11 | 808043A1 | BRACKET | 1 | 807403T | |||||
| 12 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 1 | ||||||
| 13 | 32-807409 | HOSE | 1 | ||||||
| 14 | 32-8062621 | HOSE | 1 | ||||||
| 15 | 22-805563 | CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF to .50 Inch Inv. Flare) | 2 | ||||||
| - | 27-805396A95 | GASKET SET | 1 |
