7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Cylinder Block And Camshaft

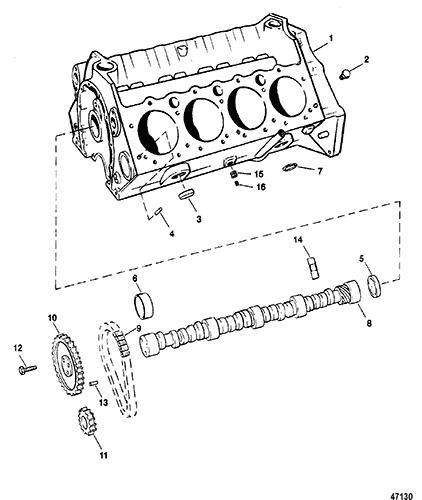

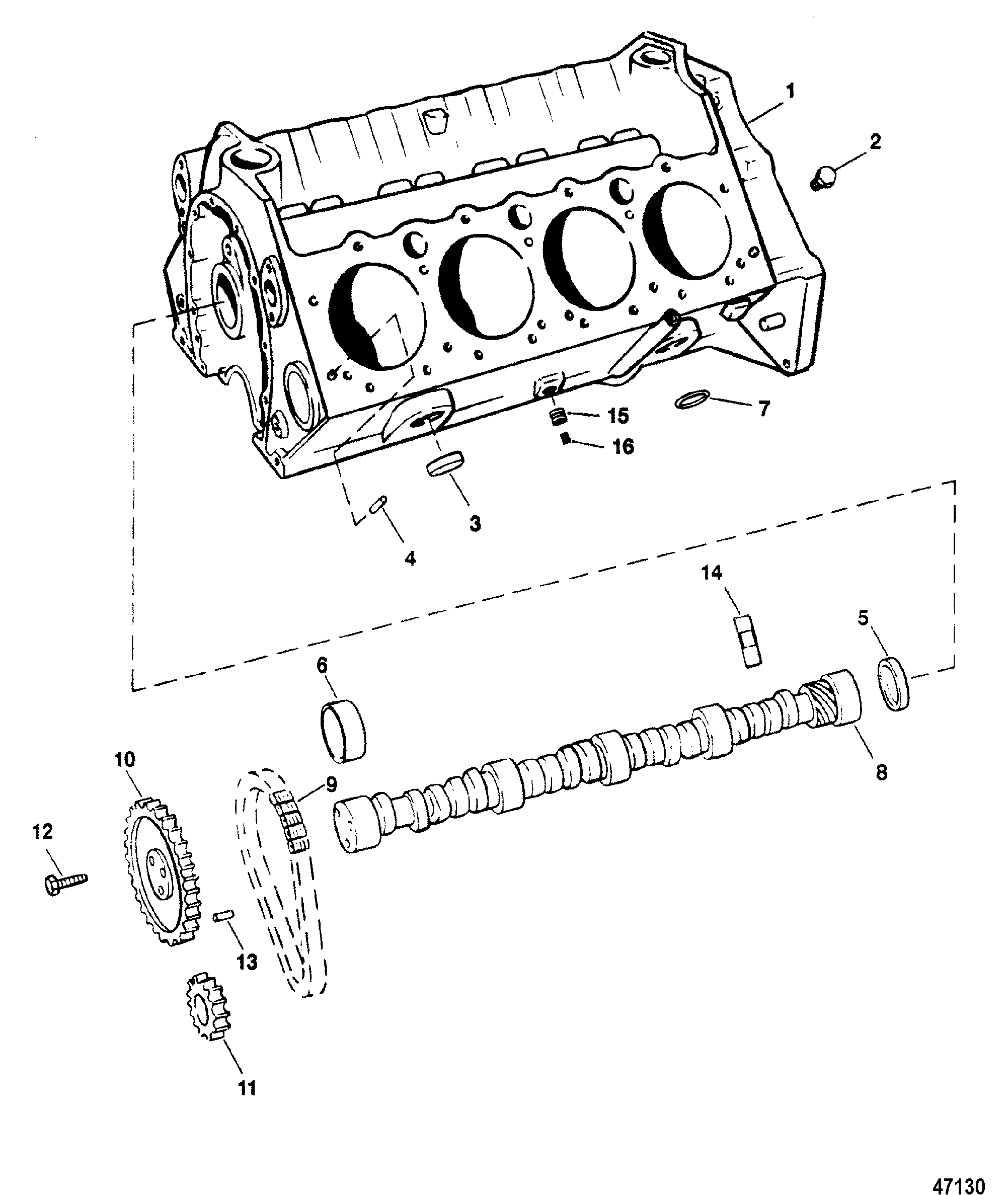

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | |||||
| 2 | 22-48340 | PLUG, (.250-18 x .41) (1/4 IN.) | 4 | ||||||
| 2 | 22-48358T | PLUG, (.375) (3/8 IN.) | 2 | 22-48358 | |||||
| 3 | 19-34270 | EXPANSION PLUG, (1.625), Expansion (1-5/8 IN. DIA.) | 8 | ||||||
| 4 | 17-52190 | PIN | 4 | ||||||
| 5 | 19-94140 | EXPANSION PLUG | 1 | ||||||
| 6 | 23-85684 | BEARING SET | 1 | ||||||
| 7 | 25-69756 | O-RING, (.500 Inch) (1/2 IN.) | 1 | 25-811528 | |||||
| 8 | 431-4734 | CAMSHAFT | 1 | ||||||
| 9 | 845796T | CHAIN | 1 | 811580 | |||||
| 10 | 43-811578 | SPROCKET | 1 | ||||||
| 11 | 43-845794T | SPROCKET | 1 | 43-811579 | |||||
| 12 | 10-845942 | SCREW, (.312-18 x .750) | 3 | 10-35339 | |||||
| 13 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.) | 1 | 17-35312 | |||||
| 14 | 811584 | LIFTER | 16 | ||||||
| 15 | 22-48556 | BUSHING , Reducer (.250 To .125) | 2 | ||||||
| 16 | 22-328022 | PLUG, Pipe (.125-27) | 2 | 22-328021 | |||||
| - | 806351R5 | MARINE LONG BLOCK ENGINE | 1 | 807161A1 | |||||
| - | 92-809825 | RTV SILICONE, (3 Ounce Tube) Metallic Blue | 1 | ||||||
| - | 34227Q02 | SEALING COMPOUND, (16 Ounce) | 1 | 92-342271 |
