7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Distributor And Ignition Components

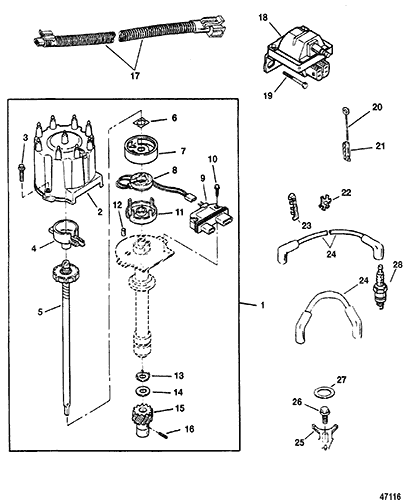

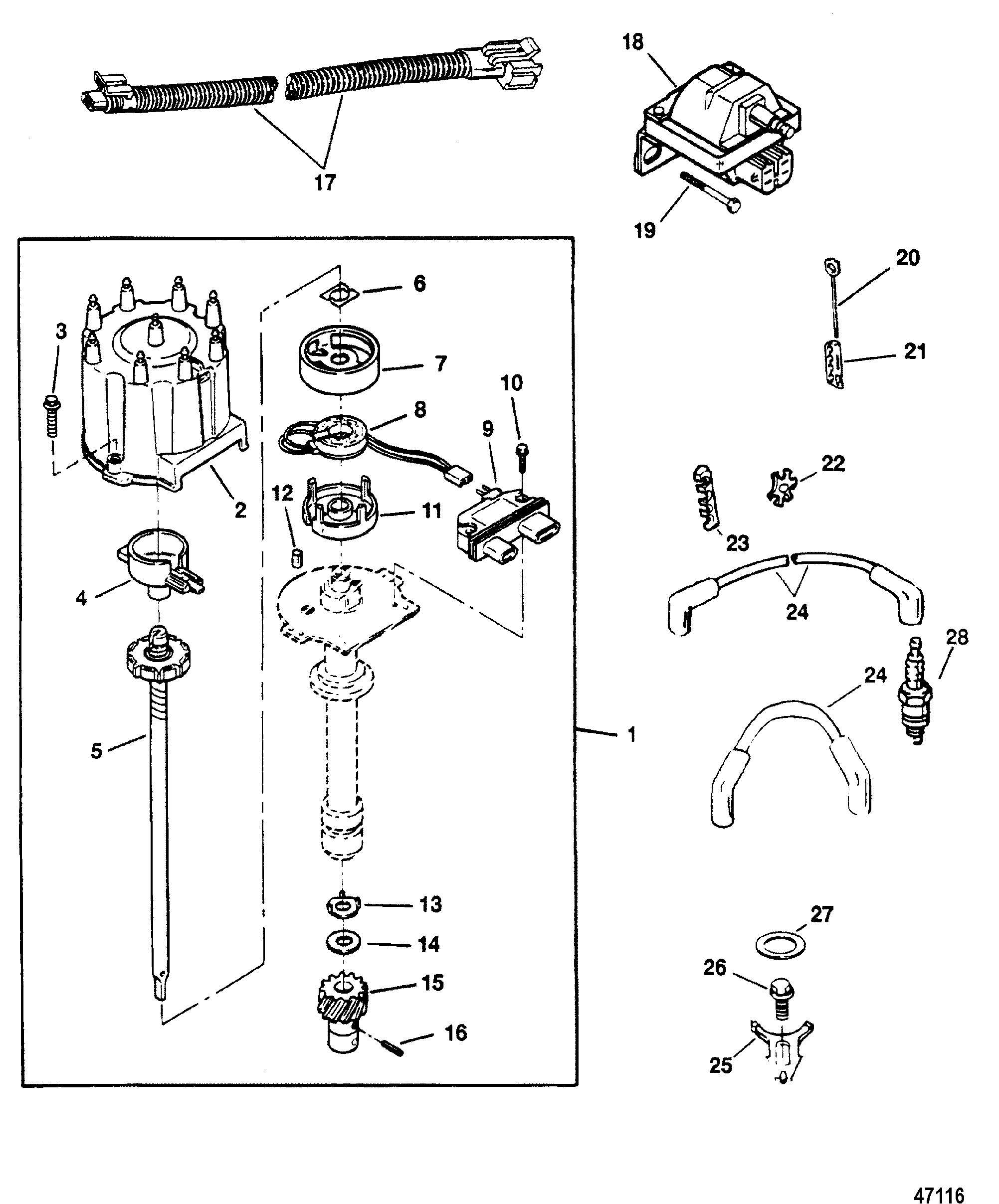

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805222A1 | DISTRIBUTOR ASSEMBLY | 1 | ||||||
| 2 | 808483T3 | 676-9-29411 | 700-71400 | CAP | 1 | 808483 | |||
| 3 | 10-808491 | SCREW | 2 | This Part is no longer avaible | |||||
| 4 | 8M6001253 | 700-71100 | ROTOR | 1 | |||||
| 5 | 808485T | SHAFT ASSEMBLY, Main | 1 | 808485 | This Part is no longer avaible | ||||
| 6 | 808487 | RETAINER | 1 | This Part is no longer avaible | |||||
| 7 | 808486 | SHIELD | 1 | This Part is no longer avaible | |||||
| 8 | 811639T | 700-72130 | COIL | 1 | 811639 | ||||
| 9 | 811637001 | MODULE | 1 | 811637 | |||||
| 10 | 10-811638 | SCREW | 2 | This Part is no longer avaible | |||||
| 11 | 811641 | POLE PIECE | 1 | ||||||
| 12 | 17-808488 | PIN | 1 | This Part is no longer avaible | |||||
| 13 | 12-46350 | WASHER | 1 | This Part is no longer avaible | |||||
| 14 | 12-808489 | WASHER | 1 | ||||||
| 15 | 43-808490 | GEAR | 1 | ||||||
| 16 | NSS | Not Sold Separate | 1 | 1 | |||||
| 17 | 84-817376T01 | HARNESS ASSEMBLY, Distributor Module to Ignition Coil | 1 | 84-817376T | |||||
| 18 | 898253T27 | COIL, Ignition | 1 | 817378T | |||||
| 19 | 10-805189 | SCREW, (.375-16 x .750) | 2 | ||||||
| 20 | 16-90096A1 | STUD ASSEMBLY, (#10-32 x Special) | 2 | ||||||
| 21 | 54-72821 | RETAINER | 2 | ||||||
| 22 | 54676 | RETAINER, Two Wire (2 WIRE) | 2 | ||||||
| 23 | 32783 | RETAINER, Three Wire (3 WIRE) | 2 | ||||||
| 24 | 84-816608Q68 | CABLE KIT, Ignition | 1 | 84-816608A68 | |||||
| 25 | 52185 | CLAMP | 1 | ||||||
| 26 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 1 | ||||||
| 27 | 27-344863 | GASKET | 1 | 3 | |||||
| 28 | 33-898264001 | SPARK PLUG | 8 | 33-59571 | |||||
| - | 27-805396A95 | GASKET SET | 1 |
