7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Starter Motor (PG260)

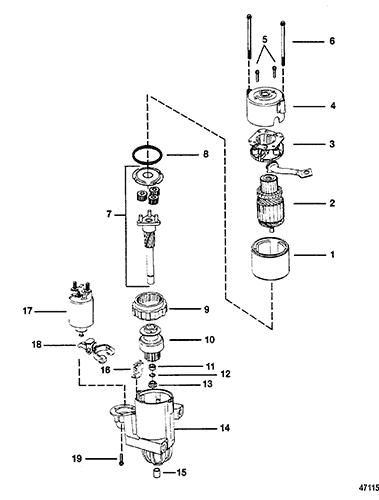

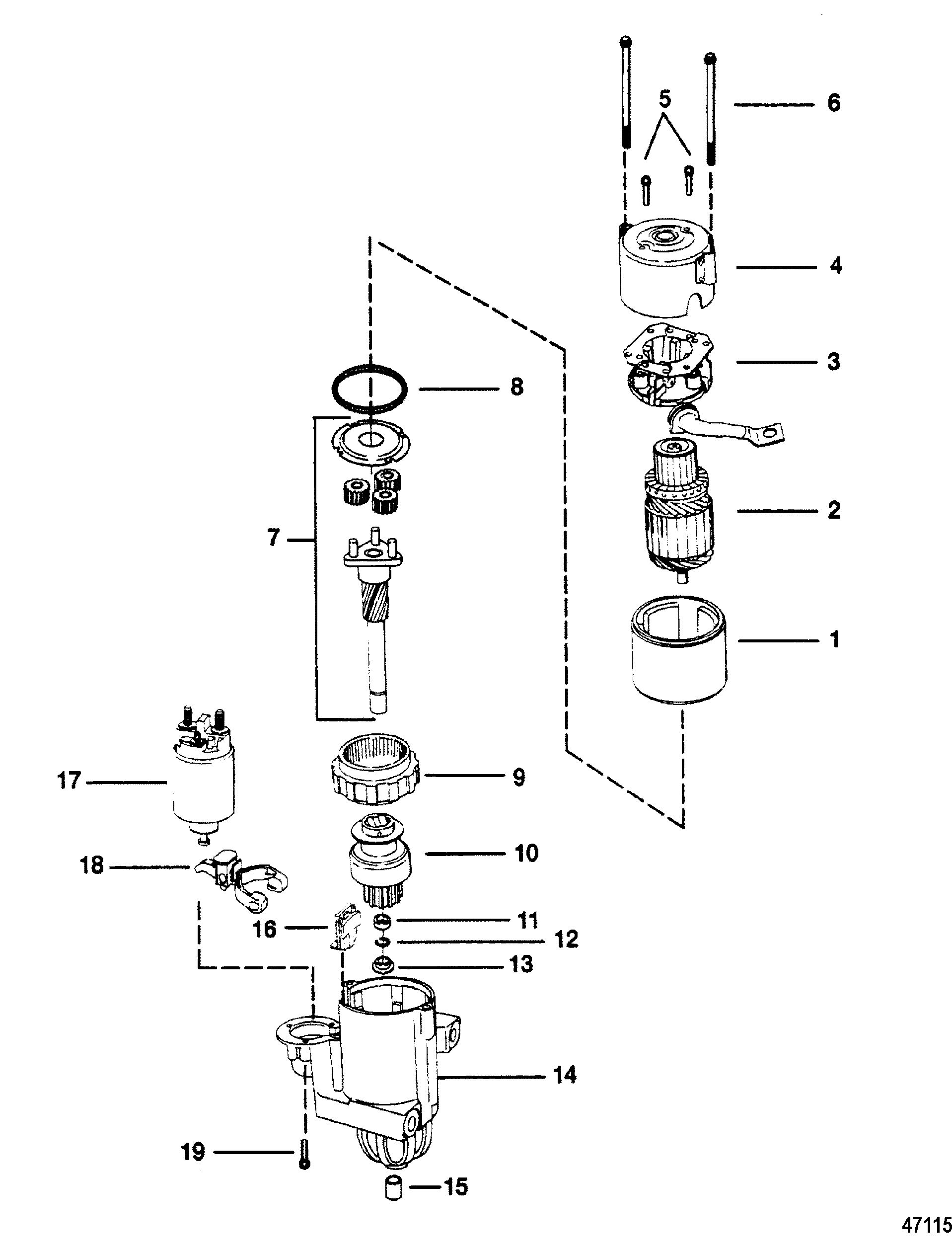

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 50-863007A1 | 676-9-15907 | 602-10099MD or | 620-5399M | STARTER MOTOR ASSEMBLY | 1 | 50-806964A3 | |||
| 2 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 3 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 4 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 5 | NSS | NOT SOLD SEPARATE | 2 | This part is not sold separate 1 | ||||||
| 6 | NSS | NOT SOLD SEPARATE | 2 | This part is not sold separate 1 | ||||||
| 7 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 8 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 9 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 10 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 11 | 33291 | COLLAR | 1 | |||||||
| 12 | 53-33290 | RING, Retaining | 1 | |||||||
| 13 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 14 | 809459 | HOUSING | 1 | This Part is no longer available | ||||||
| 15 | 23-814476 | BUSHING | 1 | This Part is no longer available | ||||||
| 16 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 17 | 809463A1 | 676-9-15125 | 700-72450 | SOLENOID KIT | 1 | |||||
| 18 | NSS | NOT SOLD SEPARATE | 1 | This part is not sold separate 1 | ||||||
| 19 | NSS | NOT SOLD SEPARATE | 3 | This part is not sold separate |
