7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Fuel Pump And Fuel Filter

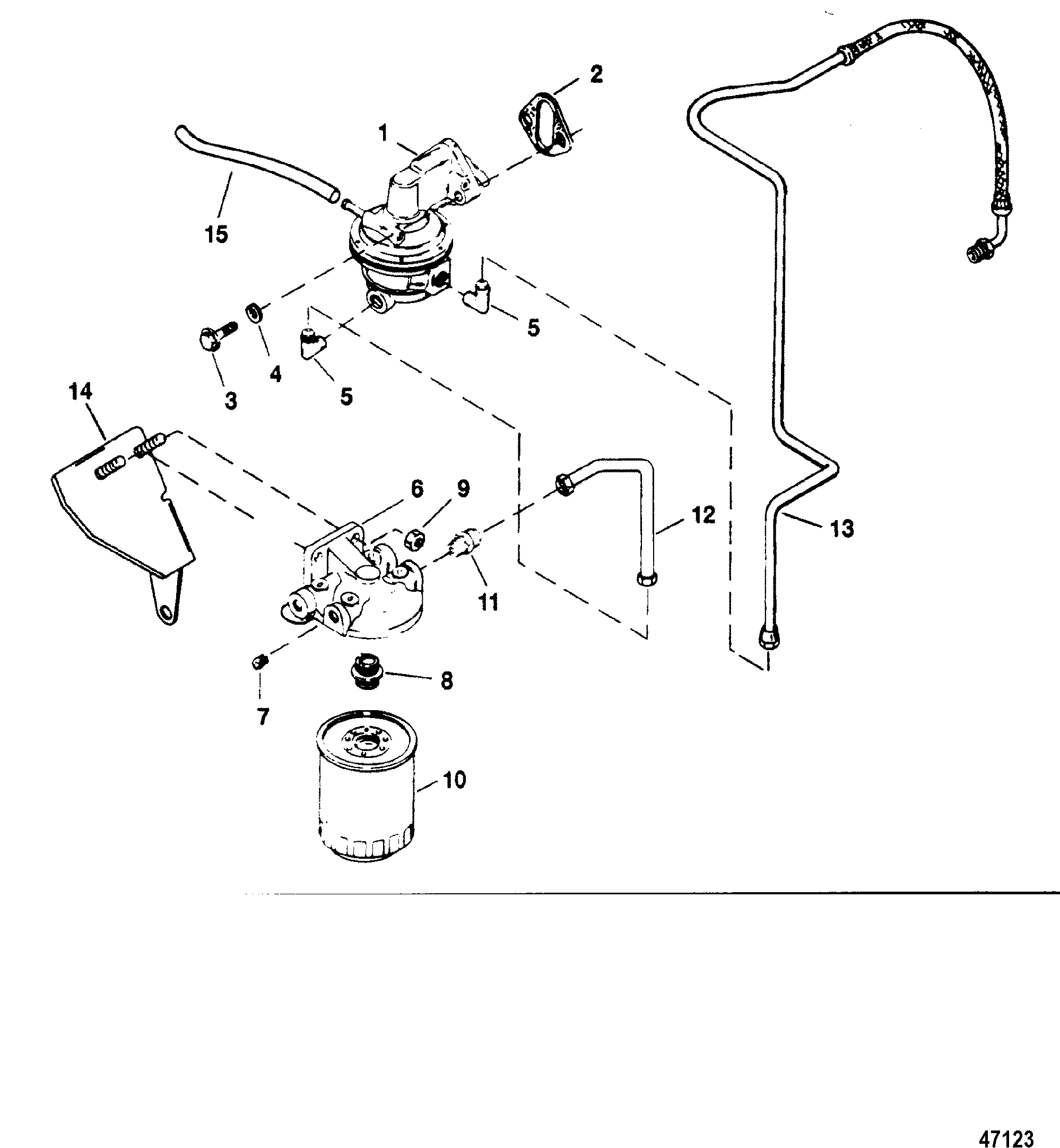

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 861677T | 525-861677T | PUMP ASSEMBLY | 1 | 818383T | |||||
| 2 | 27-34213 | 676-9-61041 | 700-31360 | GASKET | 1 | 3 | ||||
| 3 | 10-34354 | 700-22447 | SCREW, (.375-16 x 1.50) | 2 | ||||||
| 4 | 13-35048 | 700-21495 or | 700-21493(For Cast Iron) | LOCKWASHER, (.375) | 2 | |||||
| 5 | 22-43276 | ELBOW, (90 Degree) (90 DEGREES) | 2 | |||||||
| 6 | 89876A3 | BASE ASSEMBLY, Fuel Filter/Water Seperator | 1 | |||||||
| 7 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 2 | |||||||
| 8 | 22-816133 | FITTING | 1 | 22-8161331 | ||||||
| 9 | 11-29250 | NUT, (.312-24) | 2 | |||||||
| 10 | 35-802893Q01 | FILTER, Fuel/Water Separator | 1 | 35-807172 | ||||||
| 11 | 22-42897 | FITTING (STRAIGHT) | 1 | No longer made, limited availability | ||||||
| 12 | 32-805637T | LINE, Fuel | 1 | 32-818385T | ||||||
| 13 | 32-807079T | LINE, Fuel | 1 | This Part is no longer available | ||||||
| 14 | 805556T1 | BRACKET | 1 | This Part is no longer available | ||||||
| 15 | 32-7381567 | TUBING, (42.00 Inches Bulk) | 1 | |||||||
| - | 27-805396A95 | GASKET SET | 1 |
