7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Crankshaft, Pistons And Conn. Rods

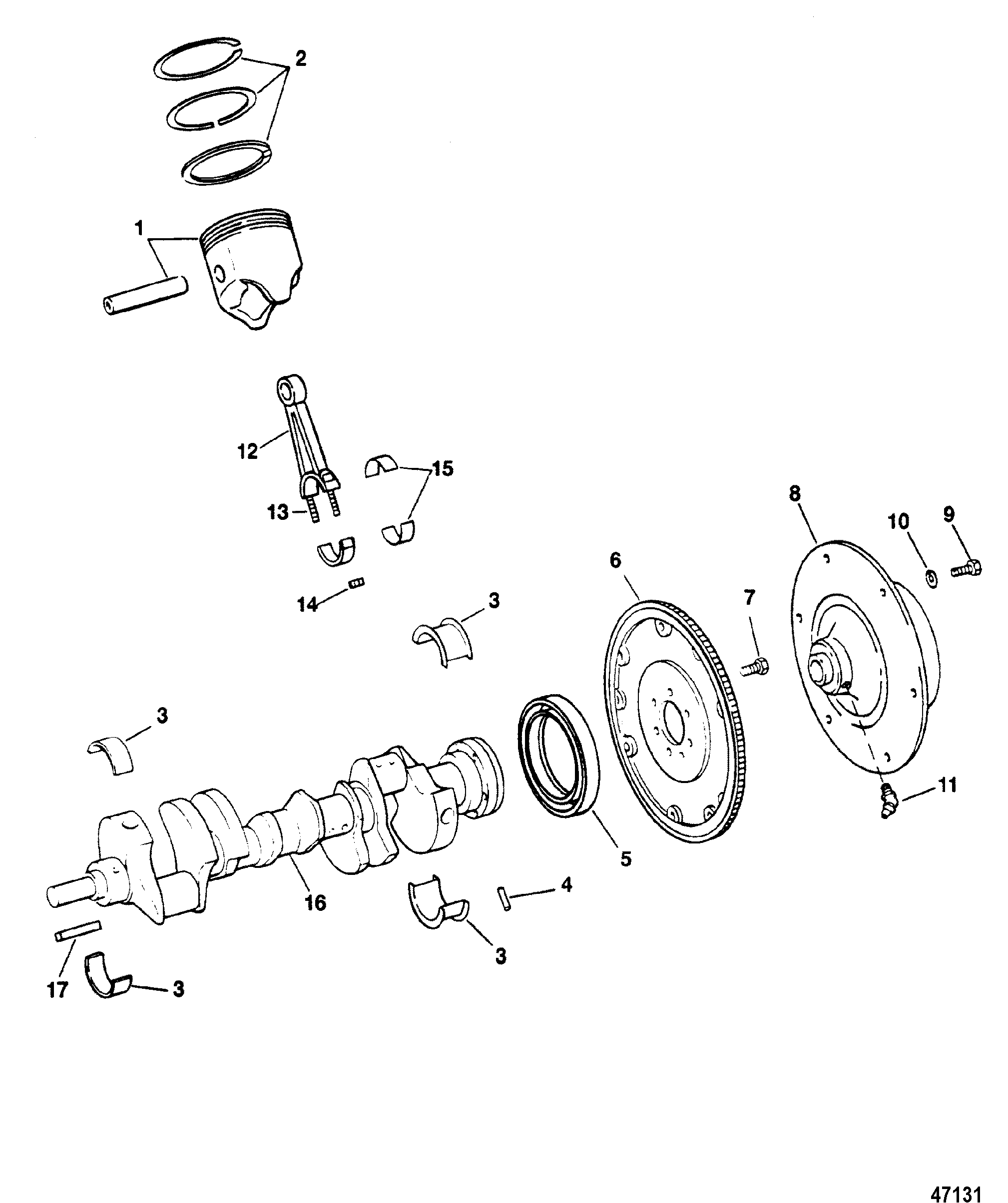

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 737-881714T | PISTON ASSEMBLY (STANDARD) | 8 | 737-808740 | |||||
| 2 | 737-850449001 | PISTON ASSEMBLY (.030 O.S.) | AR | 737-808741 | 2 | ||||
| 2 | 39-827651T | RING, Piston (STANDARD) | 8 | 39-827651 | |||||
| 3 | 39-850447 | RING, Piston (.030 O.S.) | AR | 39-827652 | 2 | ||||
| 3 | 23-818473001 | BEARING SET, Main - Standard (STANDARD) | 1 | 23-818473 | |||||
| 3 | 23-818474 | BEARING SET, Main - .001 Undersize (.001 USA) | AR | 2 | |||||
| 3 | 23-818475 | BEARING SET, Main - .002 Undersize (.002 USA) | AR | 2 | |||||
| 3 | 818476001 | BEARING SET, Main - .010 Undersize (.010 USA) | AR | 23-818476 | 2 | ||||
| 3 | 23-818477 | BEARING SET, Main - .020 Undersize (.020 USA) | AR | 2 | |||||
| 4 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.) | 1 | 17-35312 | |||||
| 5 | 26-811554 | 676-9-61622 | SEAL | 1 | 3 | ||||
| 6 | 230-811562T | FLYWHEEL | 1 | 230-811562 | |||||
| 7 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 10-49845 | |||||
| 8 | 861523A9 | 676-9-72503 | 525-861523A9 | COUPLER ASSEMBLY, Engine | 1 | 18311A17 | |||
| 9 | 10-14883 | SCREW, (.375-16 x 1.12) | 6 | ||||||
| 10 | 12-20572 | WASHER, (.390 x .750 x .093) | 6 | ||||||
| 11 | 22-49099 | FITTING | 2 | ||||||
| 12 | 614-3553 | CONNECTING ROD | 8 | ||||||
| 13 | 10-52192 | BOLT | 16 | ||||||
| 14 | 11-37493 | NUT, (.375-24) | 16 | ||||||
| 15 | 23-85726001 | BEARING SET, Connecting Rod - Standard (STANDARD) | 8 | 23-85726 | |||||
| 15 | 23-85727 | BEARING SET, Connecting Rod - (.001 Undersize) (PAIR - .001 USA) | AR | 2 | |||||
| 15 | 23-85728 | BEARING SET, Connecting Rod - (.002 Undersize) (PAIR - .002 USA) | AR | This Part is no longer available 2 | |||||
| 15 | 23-85691 | BEARING SET, Connecting Rod - (.010 Undersize) (PAIR - .010 USA) | AR | 2 | |||||
| 15 | 23-85729 | BEARING SET, Connecting Rod - (.020 Undersize) (PAIR - .020 USA) | AR | 2 | |||||
| 16 | 429-811551 | CRANKSHAFT | 1 | ||||||
| 17 | 28-845607 | KEY | 1 | 28-811558 | |||||
| - | 27-805396A95 | GASKET SET | 1 |
