200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Adaptor Plate Hose Routings

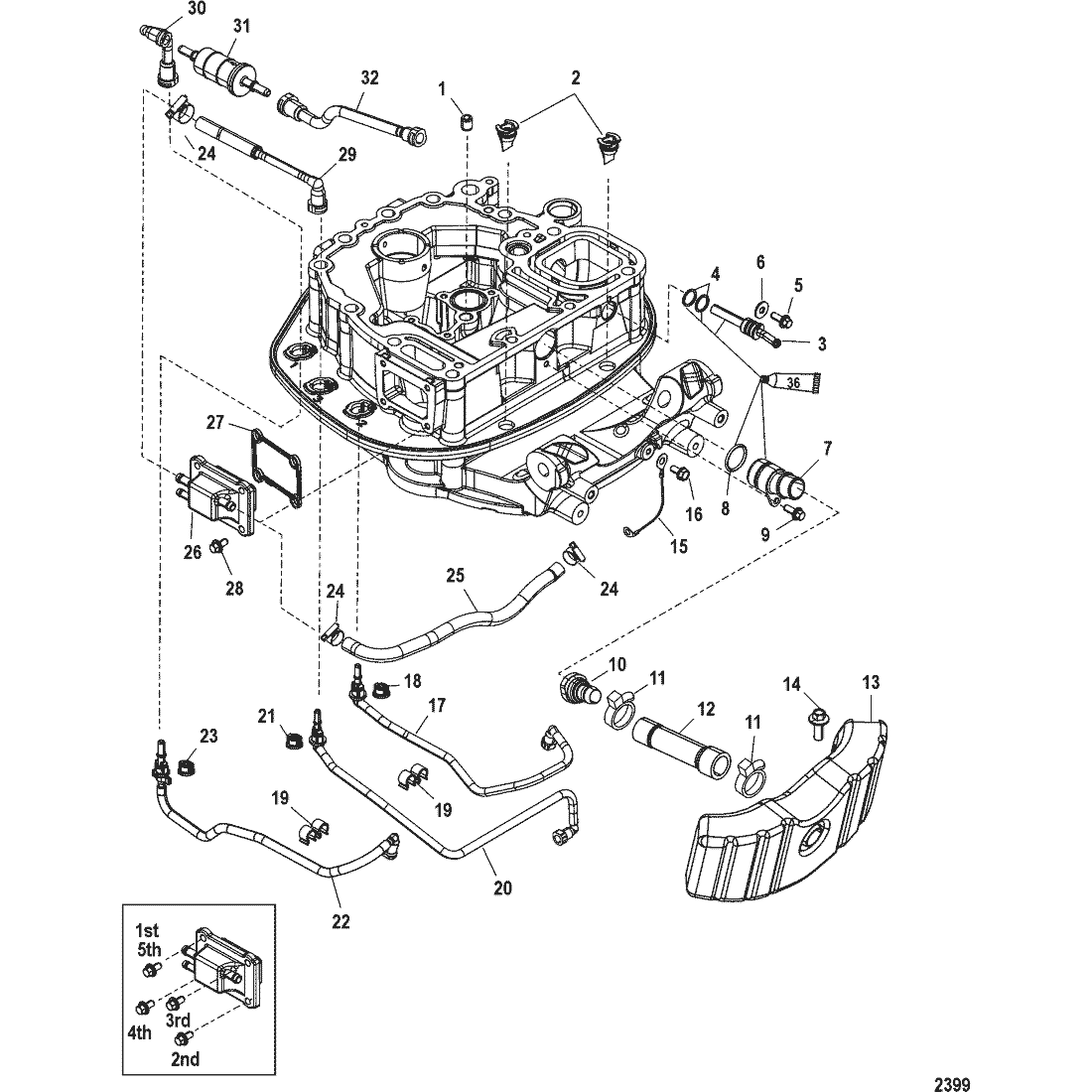

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 17-884474001 | PIN, Dowel (12 mm) | 1 | ||||||
| 2 | 888819002 | DRAIN, Cowl | 2 | ||||||
| 3 | 22-888461A01 | FITTING KIT | 1 | ||||||
| 4 | 25-892446 | O-RING, (14 X 1.78 MM) | 2 | ||||||
| 5 | 10-88552512 | SCREW, (M6 x 12 MM) Stainless Steel | 1 | ||||||
| 6 | 12-4002316 | WASHER | 1 | ||||||
| 7 | 22-889792A01 | FITTING KIT, Idle Exhaust | 1 | ||||||
| 8 | 25-889828 | O-RING, (.924 x .103) | 1 | ||||||
| 9 | 10-88552512 | SCREW, (M6 x 12 MM) Stainless Steel | 1 | ||||||
| 10 | 22-889846 | FITTING | 1 | ||||||
| 11 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 12 | 32-888981001 | HOSE, Idle Exhaust | 1 | ||||||
| 13 | 892384T | PLENUM, Exhaust | 1 | ||||||
| 14 | 10-4006731 | SCREW, (M6 x 16) | 2 | ||||||
| 15 | 88238A21 | CABLE ASSEMBLY | 1 | ||||||
| 16 | 10-40011126 | SCREW, (M6 x 13) Stainless Steel | 1 | ||||||
| 17 | 32-8M0087120 | HOSE, Manifold Reference-Lower | 1 | 8M0012199 | |||||
| 18 | 25-884546 | GROMMET | 1 | ||||||
| 19 | 888523001 | CLIP | 2 | ||||||
| 20 | 32-8M0087106 | HOSE, Water In-Lower | 1 | 8M0012198 | |||||
| 21 | 25-884546 | GROMMET | 1 | ||||||
| 22 | 32-8M0087116 | HOSE, Fuel Supply Module-Out | 1 | 8M0043794 | |||||
| 23 | 25-884546 | GROMMET | 1 | ||||||
| 24 | 54-815504104 | CLAMP, Worm Gear | 3 | ||||||
| 25 | 32-8M0108349 | TUBING, (.312) (70 Inches Bulk) | 1 | 8M0047448 | |||||
| 26 | 892562T01 | HOUSING, Manifold | 1 | ||||||
| 27 | 892117 | SEAL | 1 | ||||||
| 28 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel | 4 | ||||||
| 29 | 32-887756 | HOSE, Water In-Upper | 1 | ||||||
| 30 | 32-8M0087104 | HOSE, Hi-Pressure Filter | 1 | 8M0043789 | |||||
| 31 | 35-879885Q | FILTER, Fuel In-Line | 1 | ||||||
| 32 | 32-8M0087122 | HOSE, Hi-Pressure Filter To Fuel Rail | 1 | 8M0043790 | |||||
| - | 27-880552A07 | GASKET SET, Powerhead | 1 | ||||||
| - | 61-895247A07 | POWERHEAD ASSEMBLY | 1 |
