200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Port Cylinder Block Components

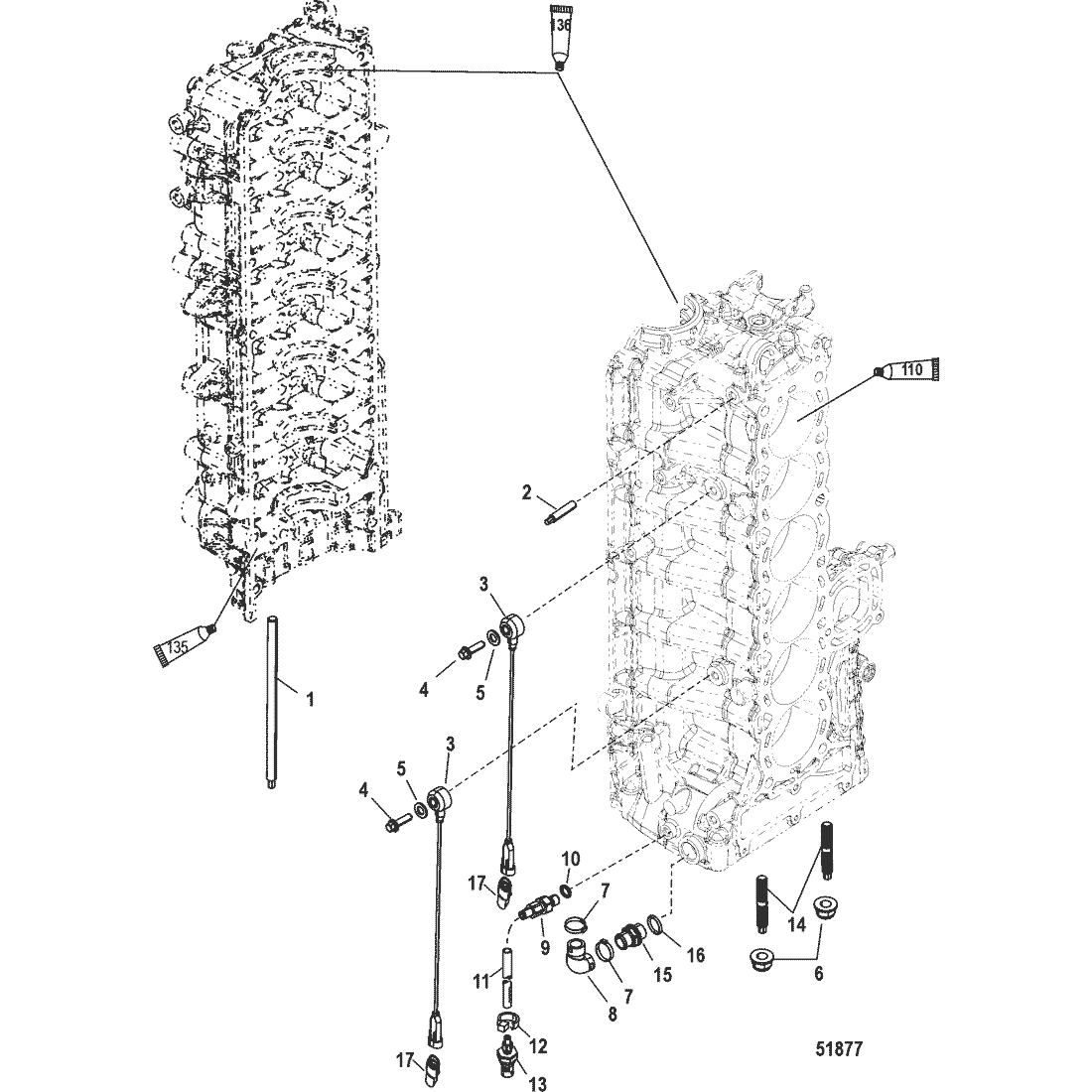

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16-8M0022158 | STUD, (M10 x 205) | 10 | ||||||
| 2 | 16-8M0022162 | STUD | 1 | 888997001 | |||||
| 3 | 8M6003194 | SENSOR ASSEMBLY, Knock | 2 | 878187 | |||||
| 4 | 10-892086035 | SCREW, (M10 x 35) | 2 | ||||||
| 5 | 12-4002319 | WASHER | 2 | ||||||
| 6 | 11-826365 | NUT, (M8) | 2 | ||||||
| 7 | 54-888988008 | CLAMP, (34.6 mm) | 2 | ||||||
| 8 | 32-885544002 | HOSE | 1 | ||||||
| 8 | 32-8M0043736 | HOSE | 1 | ||||||
| 9 | 22-896094A01 | FITTING ASSEMBLY | 1 | ||||||
| 10 | 25-896699 | O-RING, (1.78 mm x .08 mm) | 1 | ||||||
| 11 | 32-85978571 | TUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 21.5 Inches | 1 | ||||||
| 12 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 | ||||||
| 13 | 881879T26 | SENSOR, Pressure, Water | 1 | ||||||
| 14 | 16-8M0000274 | STUD, (M8 x 49) | 2 | 888849001 | |||||
| 15 | 22-885517A05 | FITTING ASSEMBLY | 1 | ||||||
| 16 | 25-892077 | O-RING | 1 | ||||||
| 17 | 893388A02 | CAP, Resistor - 2 Pin, 20K Ohm | 2 | ||||||
| - | 61-895247A07 | POWERHEAD ASSEMBLY | 1 |
