200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Starboard Cylinder Block/Oil Cooler(1B830816 and Above)

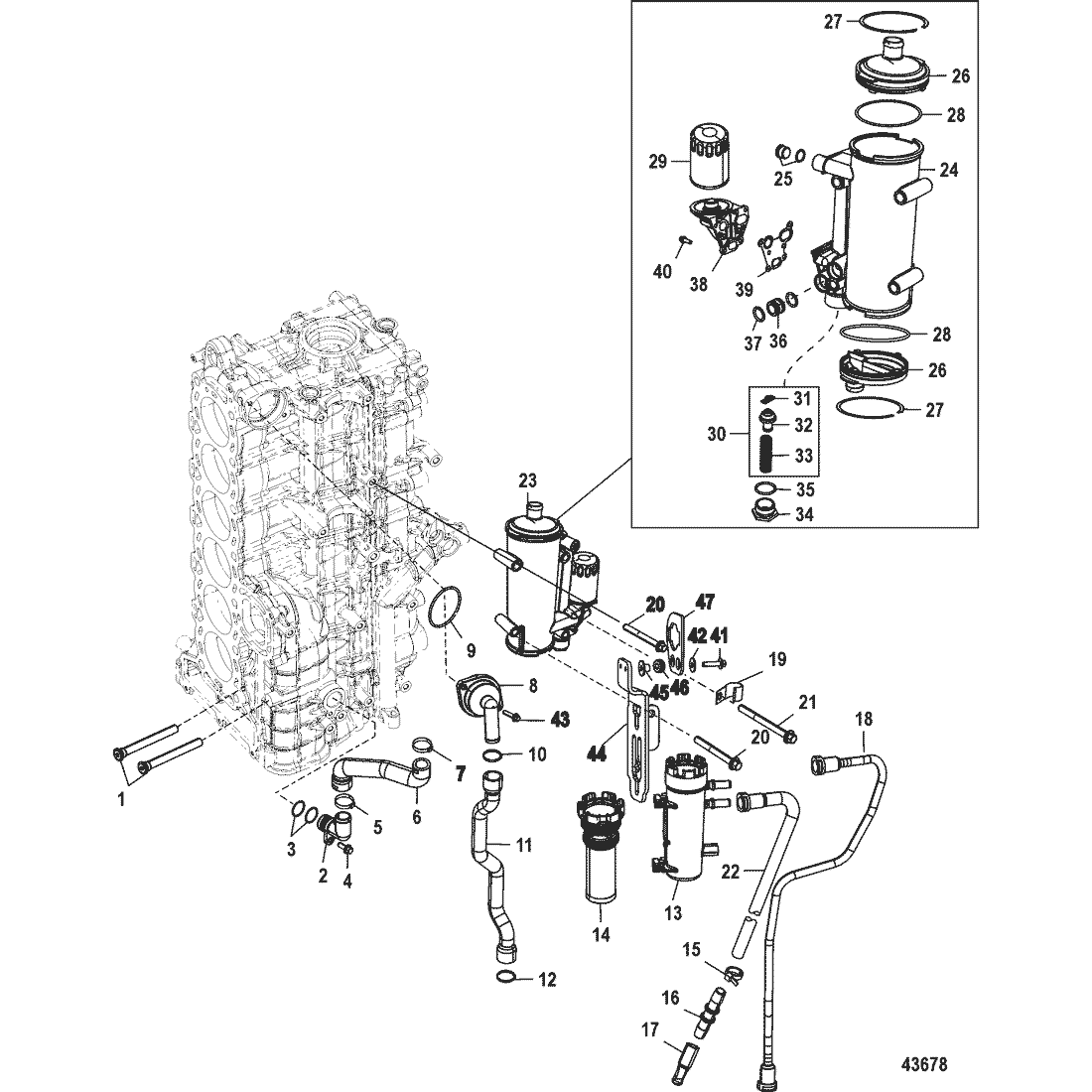

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 892404A05 | DEFLECTOR ASSEMBLY, Water | 2 | ||||||
| 2 | 22-885518A02 | FITTING ASSEMBLY | 1 | ||||||
| 3 | 25-62701 | O-RING | 2 | ||||||
| 4 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel | 1 | ||||||
| 5 | 54-888988011 | CLAMP, (38.1 mm) | 1 | ||||||
| 6 | 32-888930003 | HOSE | 1 | ||||||
| 7 | 54-888988008 | CLAMP, (34.6 mm) | 1 | ||||||
| 8 | 892864T04 | 676-18-3631 | THERMOSTAT ASSEMBLY | 1 | |||||
| 9 | 25-8M0005958 | O-RING | 1 | ||||||
| 10 | 54-888988001 | CLAMP, (36.1 mm) | 1 | ||||||
| 11 | 32-892865 | HOSE, Thermostat | 1 | ||||||
| 12 | 54-888988007 | CLAMP, (42.5 mm) | 1 | ||||||
| 13 | 35-8M0062950 | FILTER, Fuel | 1 | 892242T | |||||
| 14 | 35-8M0060041 | FILTER, Fuel | 1 | 8M0020349 | |||||
| 15 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 | ||||||
| 16 | 22-892356 | CONNECTOR | 1 | ||||||
| 17 | 19-863156 | GRAB TAB | 1 | ||||||
| 18 | 32-8M0087107 | HOSE, Fuel to Lift Pump | 1 | 8M0042628 | |||||
| 19 | 54-78945 | J CLAMP | 1 | ||||||
| 20 | 10-88552785 | SCREW, (M10 x 85) | 3 | ||||||
| 21 | 10-885527105 | SCREW, (M10 x 105) | 1 | ||||||
| 22 | 32-8M0046557 | HOSE ASSMEBLY, Fuel Inlet, 8.2 Inch | 1 | ||||||
| 23 | 8M0092405 | MODULE, Integrated Oil, Complete | 1 | 8M0046690 | |||||
| 24 | NSS | OIL COOLER HOUSING | 1 | Not Sold Separate | |||||
| 25 | 19-891953 | PLUG, (18 mm) | 2 | ||||||
| 26 | 8M0046698 | END CAP ASSEMBLY | 2 | ||||||
| 27 | 53-8M0039464 | RING, Retaining | 1 | ||||||
| 28 | 25-8M0039516 | O-RING | 1 | ||||||
| 29 | 35-877769K01 | FILTER, Oil (Mercury Branded) | 1 | ||||||
| 30 | 8M0046693 | THERMOSTAT ASSEMBLY | 1 | ||||||
| 31 | NSS | Thermostat Stop | 1 | Not Sold Separate | |||||
| 32 | 8M0046693 | THERMOSTAT | 1 | No Longer Available | |||||
| 33 | NSS | SPRING | 1 | Not Sold Separate | |||||
| 34 | 19-8M0046697 | PLUG | 1 | ||||||
| 35 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 36 | 8M0046696 | ADAPTOR ASSEMBLY | 1 | ||||||
| 37 | NSS | O-RING | 4 | Not Sold Separate | |||||
| 38 | 8M0046694 | HOUSING ASSEMBLY | 1 | ||||||
| 39 | 27-8M0034568 | GASKET | 1 | ||||||
| 40 | 10-88552516 | SCREW, (M6 x 18) | 2 | No Longer Available | |||||
| 41 | 10-82129125 | SCREW, (M6 x 25 MM) | 2 | ||||||
| 42 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 2 | ||||||
| 43 | 10-88552525 | SCREW, (M6 x 25 MM) Stainless Steel | 2 | ||||||
| 44 | 8M0007906 | BRACKET | 1 | ||||||
| 45 | 23-822003 | BUSHING | 2 | ||||||
| 46 | 25-834985 | GROMMET | 2 | ||||||
| 47 | 8M0007908 | BRACKET | 1 | ||||||
| - | 27-880552A07 | GASKET SET, Powerhead | 1 | ||||||
| - | 61-895247A07 | POWERHEAD ASSEMBLY | 1 |
