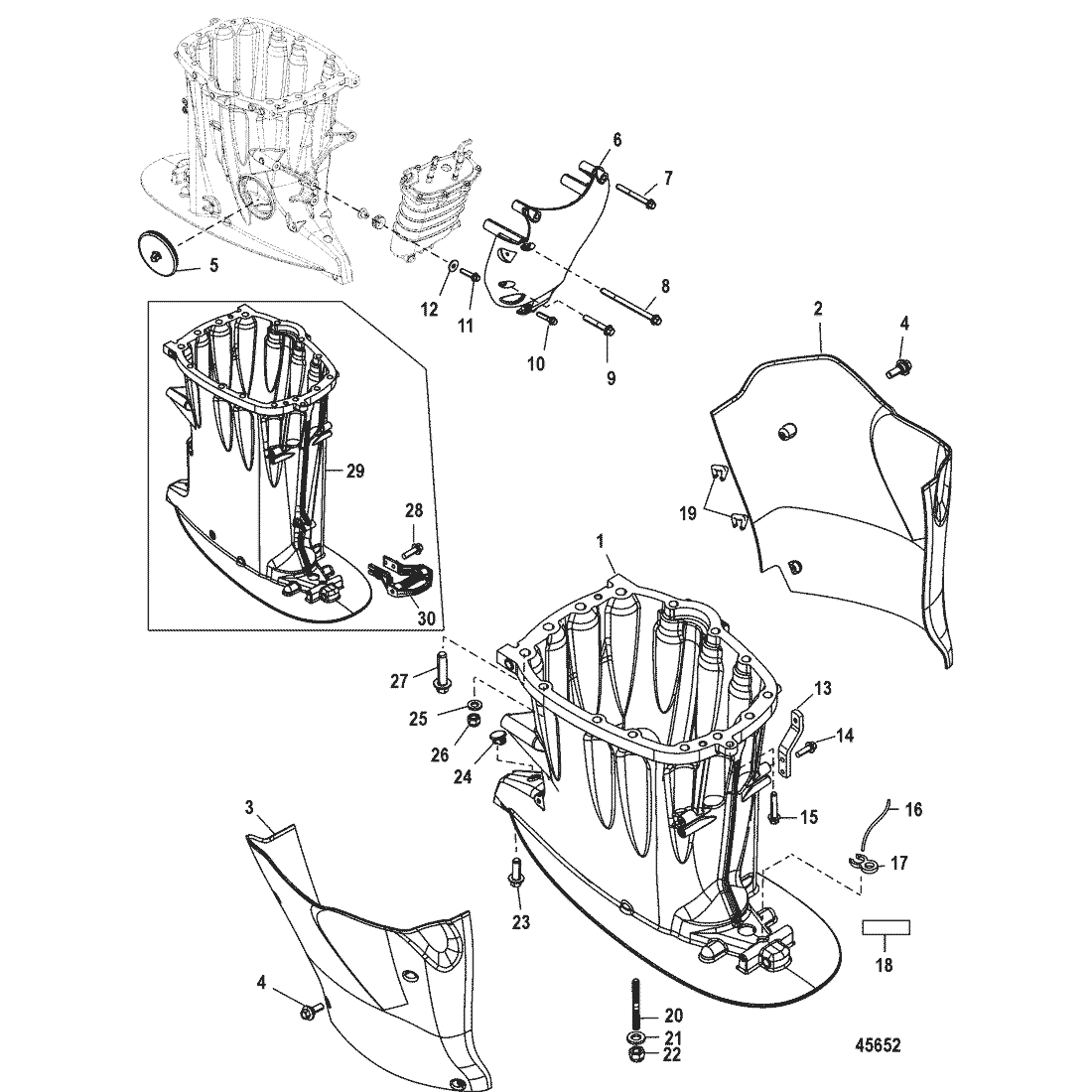

200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Driveshaft Housing
Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1500-8M0113286 | HOUSING, Driveshaft, Black | 1 | 880646T01 | |||||
| - | 885365T03 | CHAP ASSEMBLY, Long - Port and Starboard, Black | 1 | ||||||
| - | 885363T04 | CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard | 1 | ||||||
| 2 | NSS | CHAP ASSEMBLY, Lower-Port | 1 | Not Sold Separate | |||||
| 2 | NSS | CHAP ASSEMBLY, Lower-Port | 1 | Not Sold Separate | |||||
| 3 | NSS | CHAP ASSEMBLY, Lower-Starboard | 1 | Not Sold Separate | |||||
| 3 | NSS | CHAP ASSEMBLY, Lower-Starboard | 1 | Not Sold Separate | |||||
| 4 | 10-892073002 | SHOULDER SCREW, (M6) | 8 or 12 | ||||||
| 5 | 25-889568001 | GROMMET | 1 | ||||||
| 6 | 889656T01 | SHROUD | 1 | ||||||
| 7 | 10-88552675 | SCREW, (M8 x 75) | 2 | ||||||
| 8 | 10-885526120 | SCREW, (M8 x 120) | 2 | ||||||
| 9 | 10-88552650 | SCREW, (M8 x 50) | 2 | ||||||
| 10 | 10-88552640 | SCREW, (M8 x 40) | 1 | ||||||
| 11 | 10-88552635 | SCREW, (M8 x 35 MM) | 3 | ||||||
| 12 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 3 | ||||||
| 13 | 897784A01 | BRACKET KIT, Upper Chap | 2 | ||||||
| 14 | 10-88552520 | SCREW, (M6 x 20 MM) Stainless Steel | 2 | ||||||
| 15 | 10-88552630 | SCREW, (M8 x 30) | 1 | ||||||
| 16 | 32-85944975 | TUBING, (72.00 Inches Bulk), Cut to 44 Inches) | 1 | ||||||
| 17 | 889831001 | RETAINER | 1 | ||||||
| 18 | NSS | Decal-Oil Drain | 1 | Not Sold Separate | |||||
| 19 | 54-898033 | CLIP (Replaces O-Rings) | 2 | ||||||
| 20 | 16-8M0008031 | STUD, (M12 x 1.75 x 52) | 4 | ||||||
| 21 | 12-856982 | WASHER, (.500 x .810 x .090) Stainless Steel | 4 or 5 | ||||||
| 22 | 11-896895 | NUT, (M12) | 4 | ||||||
| 23 | 10-8M0102995 | SCREW, (M12 x 35 MM) | 1 | 88552835 | |||||
| 24 | 19-824928001 | PLUG, Rubber | 1 | ||||||
| 25 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 10 | ||||||
| 26 | 11-884412 | NUT | 10 | ||||||
| 27 | 10-88552845 | SCREW, (M12 x 45) | 4 | ||||||
| 28 | 10-88552520 | SCREW, (M6 x 20 MM) Stainless Steel | 2 | ||||||
| 29 | 1500-8M0103298 | HOUSING, Driveshaft, Black | 1 | 880648T01 | |||||
| 30 | 891966006 | BRACKET, Cowl | 1 | ||||||
| - | 61-895247A07 | POWERHEAD ASSEMBLY | 1 |
