200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced

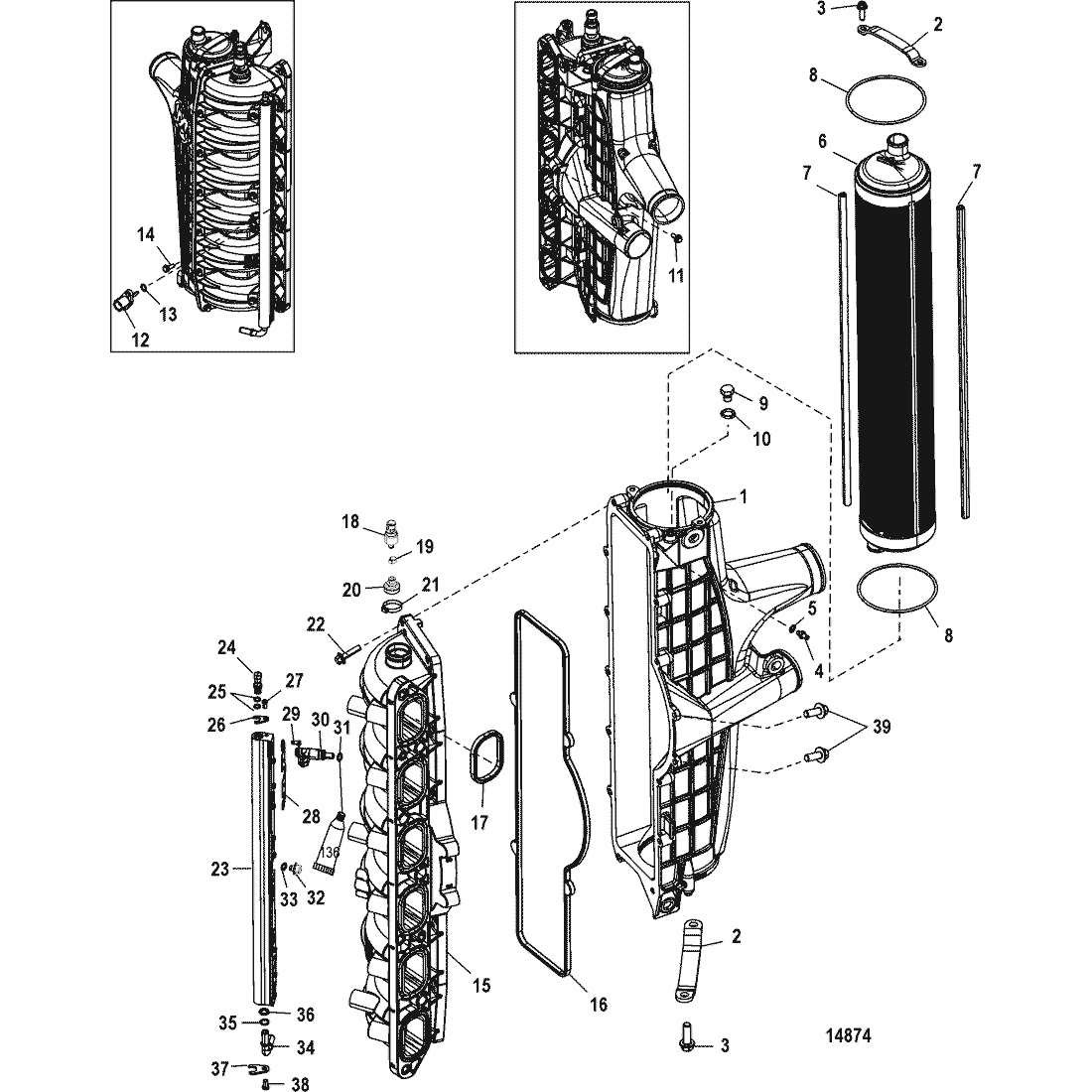

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M0092408 | MODULE ASSEMBLY, Intergrated Air Fuel | 1 | 880608T07 | |||||
| 1 | 8M0092462 | CAC ASSEMBLY | 1 | 880587A03 | |||||
| 2 | 895032 | STRAP | 2 | ||||||
| 3 | 10-88552516 | SCREW, (M6 x 18) | 4 | 895336 | |||||
| 4 | 22-895033 | FITTING | 1 | ||||||
| 5 | NSS | O-Ring (Part of 895031 Kit) | 1 | Not Sold Separate | |||||
| 6 | NSS | Stack Assembly | 1 | Not Sold Separate | |||||
| 7 | NSS | Seal | 1 | Not Sold Separate | |||||
| 8 | NSS | O-Ring (Part of 895031 Kit) | 2 | Not Sold Separate | |||||
| 9 | 22-8M0048079 | FITTING | 1 | 895034 | |||||
| 10 | NSS | O-Ring (Part of 895031 Kit) | 1 | Not Sold Separate | |||||
| 11 | NSS | Plate | 1 | Not Sold Separate | |||||
| 12 | 891663001 | SENSOR ASSEMBLY, Temperature | 1 | ||||||
| 13 | 25-892317001 | O-RING | 1 | ||||||
| 14 | 10-895054 | SCREW, (M4 x 16 MM) | 2 | ||||||
| 15 | 8M0041479 | MANIFOLD ASSEMBLY, Intake | 1 | No Longer Available | |||||
| 16 | 895019 | SEAL | 1 | ||||||
| 17 | 26-895020 | SEAL | 6 | ||||||
| 18 | 8M6000639 | SENSOR | 1 | 885548002 | |||||
| 19 | 54-13791 | 676-9-35604 | CLAMP, (15.7 mm), Map Sensor to Boot | 1 | 888988015 | ||||
| 20 | 892952500 | BOOT | 1 | ||||||
| 21 | 54-888988001 | CLAMP, (36.1 mm) | 1 | ||||||
| 22 | 10-88552525 | SCREW, (M6 x 25 MM) | 13 | 895052 | |||||
| 23 | 8M0041080 | FUEL RAIL KIT | 1 | No Longer Available | |||||
| 24 | 895028A01 | VALVE, Schrader | 1 | ||||||
| 25 | 25-895056 | O-RING | 2 | ||||||
| 26 | 895026 | BRACKET | 1 | No Longer Available | |||||
| 27 | 10-895051 | SCREW, (M5 x 10) | 1 | No Longer Available | |||||
| 28 | 895024 | BRACKET | 3 | ||||||
| 29 | 10-895051 | SCREW, (M5 x 10) | 12 | No Longer Available | |||||
| 30 | 8M0041571 | INJECTOR, Fuel | 6 | 8M0006027 | |||||
| 31 | 25-851889 | O-RING | 12 | ||||||
| 32 | 895025 | DAMPER | 1 | ||||||
| 33 | 25-851889 | O-RING | 1 | ||||||
| 34 | 32-895029A01 | TUBE KIT, Fuel Inlet | 1 | ||||||
| 35 | 12-895055 | WASHER | 1 | No Longer Available | |||||
| 36 | 25-895057 | O-RING | 1 | ||||||
| 37 | 895027 | BRACKET | 1 | ||||||
| 38 | 10-895051 | SCREW, (M5 x 10) | 1 | No Longer Available | |||||
| 39 | 10-895053 | SCREW, (M6 x 15) | 2 |
