Your shopping cart is currently empty.
200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Cowl Latching

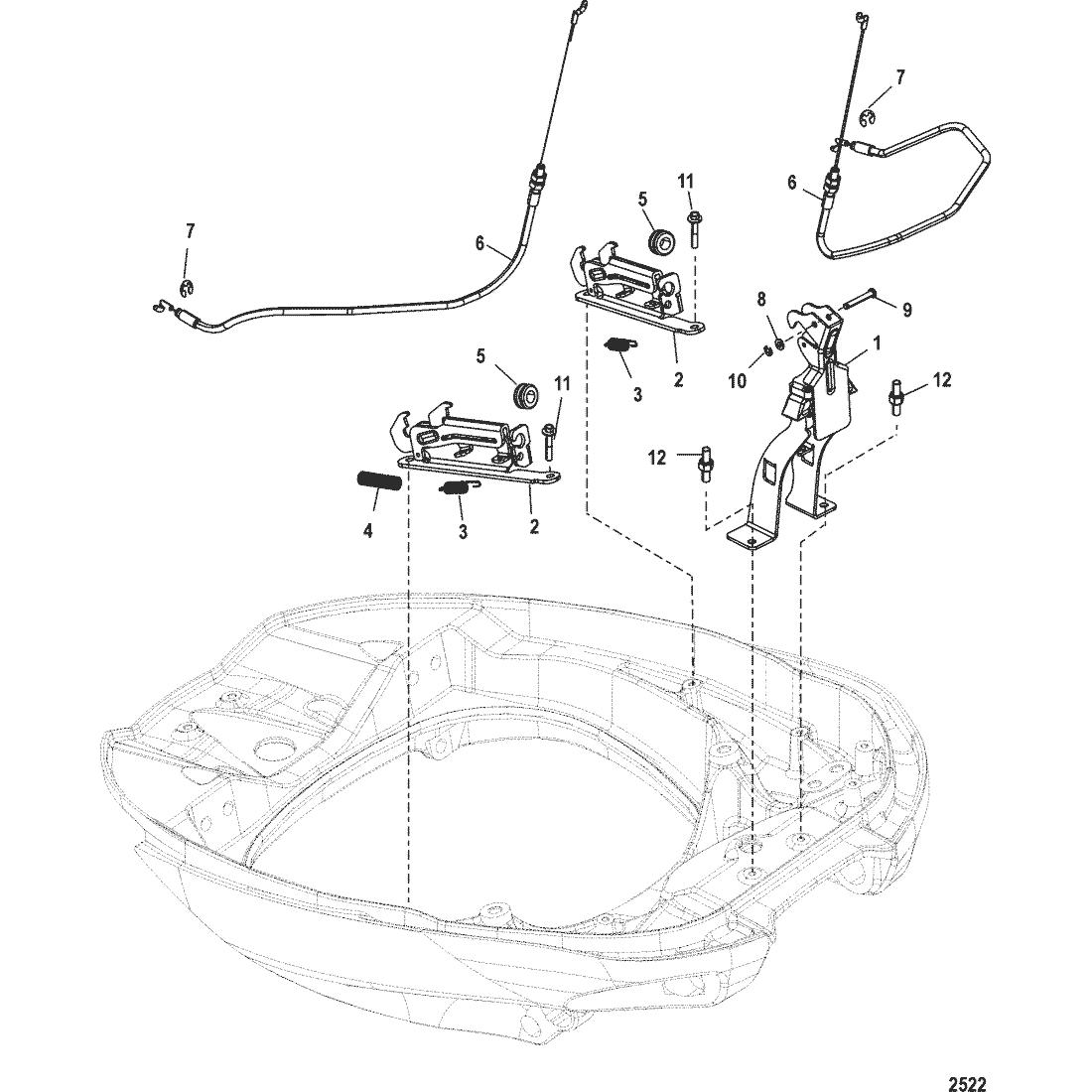

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 892062T02 | LATCH ASSEMBLY, Front and Side | 1 | No Longer Available | |||||
| 1 | 888976T01 | BRACKET | 1 | ||||||
| 2 | 888974A02 | SIDE LATCH ASSEMBLY | 2 | ||||||
| 3 | 24-888996 | SPRING | 4 | ||||||
| 4 | 23-896124 | SLEEVE | 4 | ||||||
| 5 | 25-828249 | GROMMET | 2 | ||||||
| 6 | 8M0080491 | CABLE | 2 | No Longer Available | |||||
| 7 | 53-27290 | RING, Retaining | 2 | ||||||
| 8 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 1 | ||||||
| 9 | 17-893380 | PIN, Clevis | 1 | ||||||
| 10 | 53-61319 | E RING | 1 | ||||||
| 11 | 10-4006731 | SCREW, (M6 x 16) | 4 | ||||||
| 12 | 16-889627 | STUD | 2 |
