200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Electrical Box Components

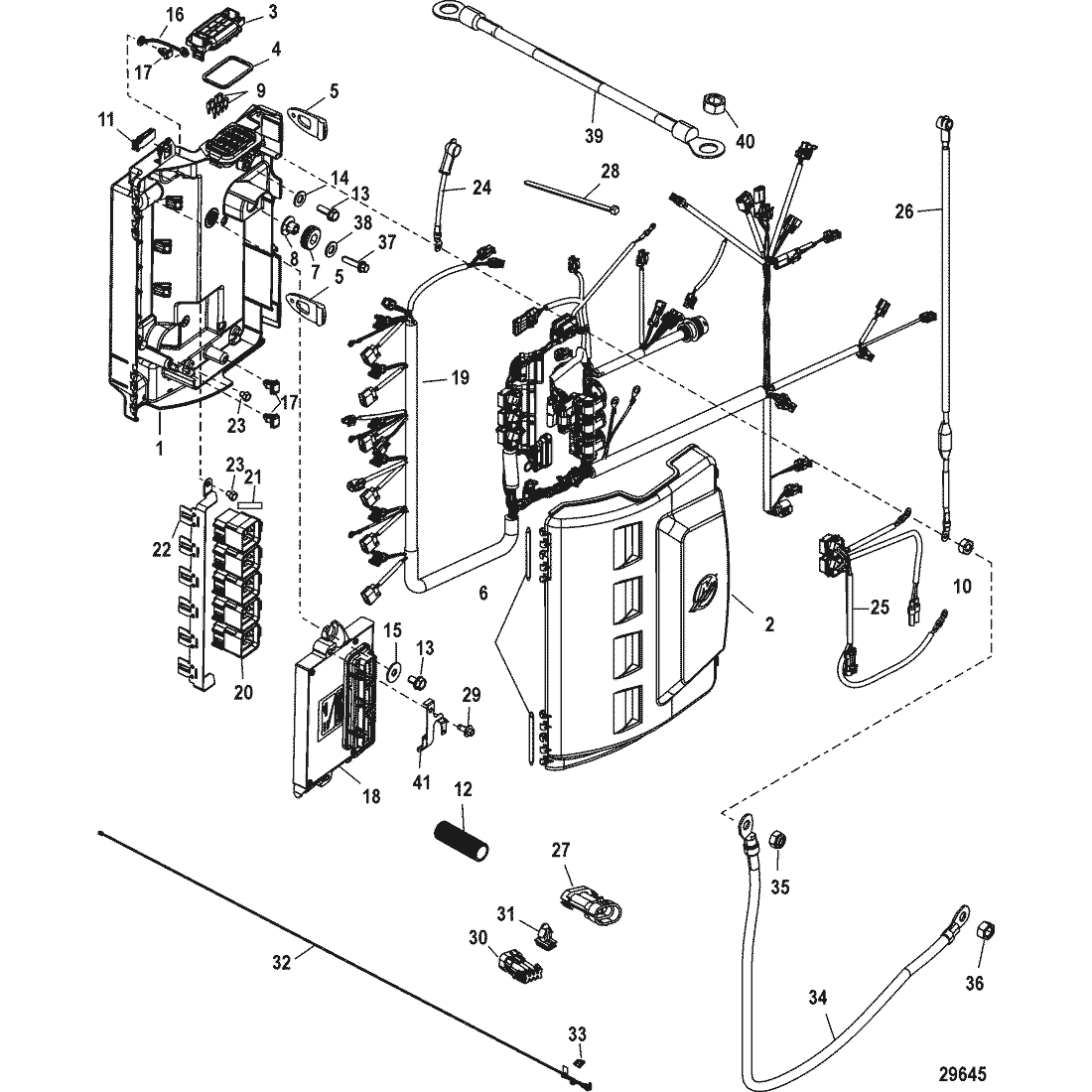

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | NSS | Electrical Box-Complete | 1 | Not Sold Separate | |||||
| - | NSS | Electrical Box | 1 | Not Sold Separate | |||||
| 1 | 885560T03 | BASE, Electrical Box | 1 | ||||||
| 2 | 885561T | COVER, Fuse Box | 1 | ||||||
| 3 | 888491 | COVER, Fuse | 1 | ||||||
| 4 | 25-885583 | SEAL | 1 | ||||||
| 5 | 889531 | STRAP | 2 | ||||||
| 6 | 885584 | PIN, Hinge | 2 | ||||||
| 7 | 25-833155 | GROMMET | 1 | ||||||
| 8 | 23-8502341 | BUSHING | 1 | ||||||
| 9 | 88-832969T20 | FUSE, Mini - Yellow - 20 Ampere | 7 | 83296920 | |||||
| 10 | 11-400213 | NUT, (M8) Stainless Steel | 1 | ||||||
| 11 | 895099 | EXTRACTOR, Fuse | 1 | ||||||
| 12 | 32-828547753 | CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk) | 1 | ||||||
| 13 | 10-40011146 | SCREW, (M8 x 13) Stainless Steel | 2 | ||||||
| 14 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 1 | ||||||
| 15 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 1 | ||||||
| 16 | 892244 | STRAP, Cover | 1 | ||||||
| 17 | 54-879962 | CLIP | 4 | ||||||
| 18 | 8M0093706 | PCM, Propulsion Control Module | 1 | ||||||
| 18 | 8M0052109 | PCM, Propulsion Control Module | 1 | ||||||
| 18 | 8M0082865 | PCM, Propulsion Control Module | 1 | ||||||
| 18 | 89790746T | PCM, Propulsion Control Module | 1 | ||||||
| 18 | 8M0082868 | PCM, Propulsion Control Module | 1 | ||||||
| 19 | 84-8M0082643 | HARNESS ASSEMBLY, Engine | 1 | 880616T07 | |||||
| 19 | 84-8M0082643 | HARNESS ASSEMBLY, Engine | 1 | ||||||
| - | NSS | Relay Bracket Assembly | 1 | Not Sold Separate | |||||
| 20 | 882751A04 | 676-9-15213 | RELAY ASSEMBLY | 4 | |||||
| 21 | NSS | Decal-Trim Relay | 4 | Not Sold Separate | |||||
| 22 | 889532 | BRACKET | 1 | ||||||
| 23 | 10-40007103 | SCREW, (M5 x 6) | 2 | ||||||
| 24 | 84-93388A17 | CABLE ASSEMBLY, (8.50 Inches) | 1 | ||||||
| 25 | 84-879345T34 | HARNESS ASSEMBLY, Trim | 1 | ||||||
| 26 | 84-8M0088927 | HARNESS ASSEMBLY, Fuse | 1 | ||||||
| 27 | 830796A03 | CONNECTOR ASSEMBLY, Weather Cap - 2 Pin Male | 1 | ||||||
| 28 | 54-850181 | TIE STRAP, (11.750 Inches) | 6 | ||||||
| 28 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 29 | 10-82129114 | SCREW, (M6 x 14) | 1 | ||||||
| 30 | 877613A02 | CONNECTOR ASSEMBLY, Weather Cap 6 Pin | 1 | ||||||
| 31 | 54-879962 | CLIP | 1 | ||||||
| 32 | 84-888416T04 | HARNESS ASSEMBLY | 1 | ||||||
| 33 | 862646 | FUSE, Tan - 5 Ampere | 1 | ||||||
| 34 | 84-88439A25 | CABLE ASSEMBLY, Battery - Positive | 1 | ||||||
| 35 | 11-401388 | NUT, (M8) Stainless Steel | 5 | ||||||
| 36 | 11-86226 | NUT, (.375-16), Battery Cable-Positive | 1 | ||||||
| 37 | 10-88552635 | SCREW, (M8 x 35 MM) | 1 | ||||||
| 38 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 1 | ||||||
| 39 | 84-88439A26 | CABLE ASSEMBLY, Battery - Negative | 1 | ||||||
| 40 | 11-68292 | NUT, (.312-18), Battery Cable-Negative | 1 | ||||||
| 41 | 54-891520001 | CLIP | 1 |
