200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - SuperCharger

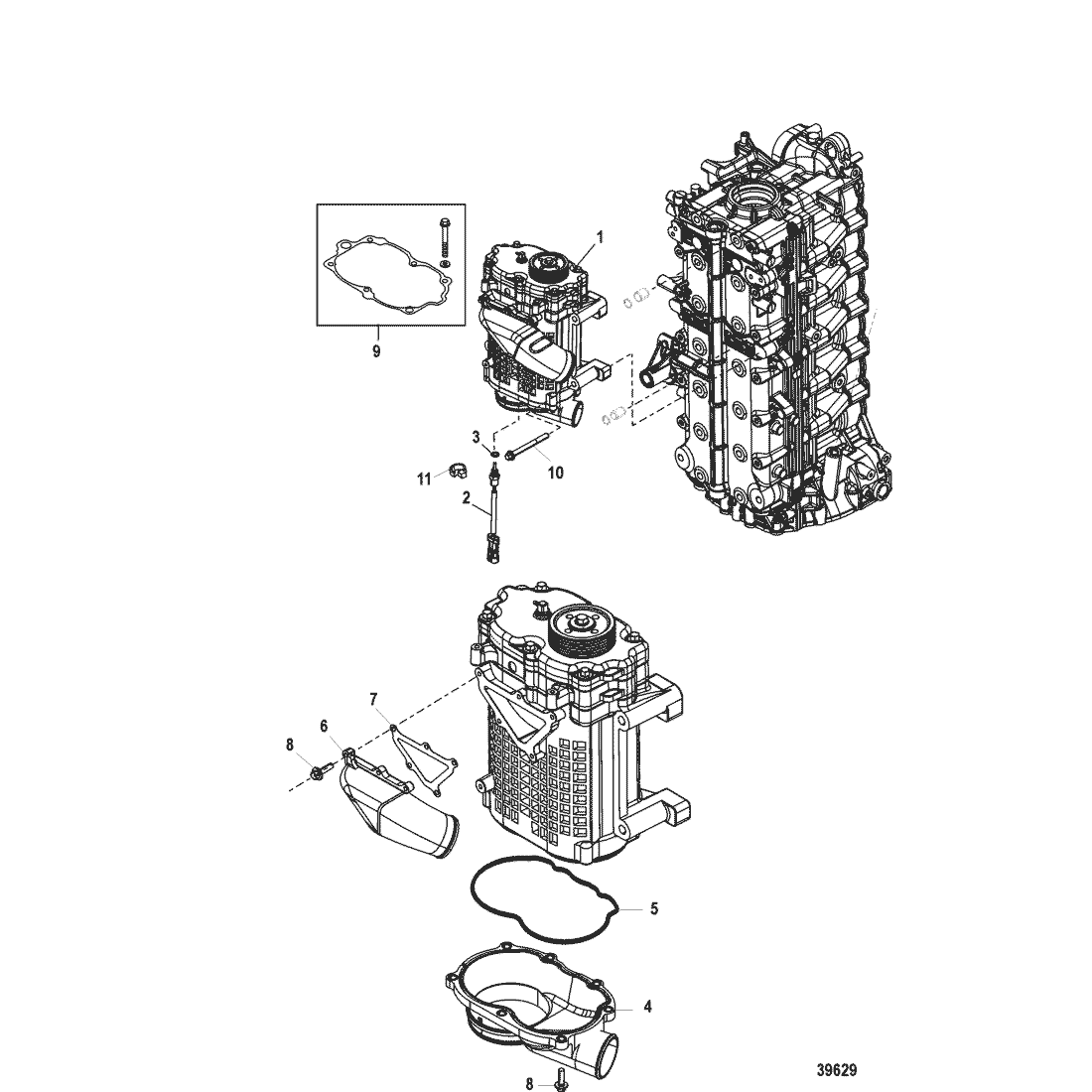

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0060303 | SUPERCHARGER KIT | 1 | 898096A03 | |||||
| 2 | 885342002 | SENSOR ASSEMBLY | 1 | ||||||
| 3 | 25-896699 | O-RING, (1.78 mm x .08 mm) | 1 | ||||||
| 4 | 888947A05 | DUCT KIT, Inlet | 1 | ||||||
| 5 | 27-888947501 | GASKET | 1 | ||||||
| 6 | 8M0033976 | DUCT KIT, Outlet | 1 | ||||||
| 7 | 27-888947504 | GASKET | 1 | ||||||
| 8 | 10-888947502 | BOLT | 9 | ||||||
| 9 | 23-847803A02 | BUSHING/GASKET KIT | 1 | ||||||
| 10 | 10-885527105 | SCREW, (M10 x 105) | 4 | ||||||
| 11 | 56762 | TIE STRAP, (4.00 Inches) | 1 |
