200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Oil Pump/Adaptor Plate-Upper

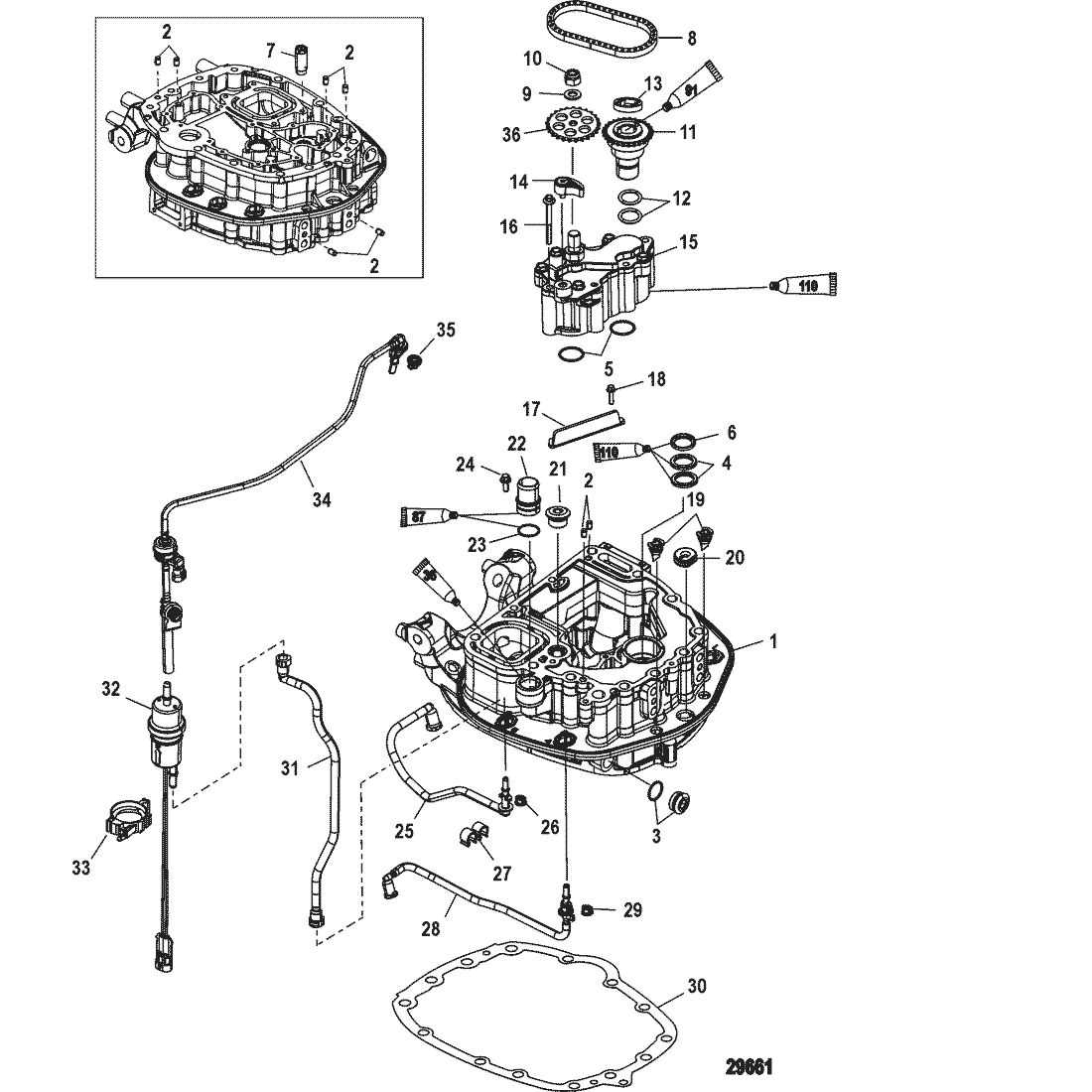

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)
- Gear Housing, Propeller Shaft 2B026816 and below
- Gear Housing, Propeller Shaft 2B026817 and up
- Ground Cable Kit(899712A01)
- Induction Components
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler(1B830815 and Below)
- Starboard Cylinder Block/Oil Cooler(1B830816 and Above)
- Starter Motor
- Steering Helm Kit-Standard(892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
- Water Separator Filter Kit, 886638A01
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 892126A03 | ADAPTOR PLATE KIT | 1 | ||||||
| 2 | 17-892228 | PIN, Dowel | 8 | ||||||
| 3 | 19-896951 | PLUG, (24 mm) | 1 | ||||||
| 4 | 26-884462 | SEAL, Water | 2 | ||||||
| 5 | 25-887930 | O-RING | 2 | ||||||
| 6 | 26-8M0033928 | SEAL, Oil | 1 | ||||||
| 7 | 21-8M0034048 | VALVE ASSEMBLY, Oil Pump | 1 | ||||||
| 8 | 8M6002692 | CHAIN, Oil Pump Drive | 1 | 884457 | |||||
| 9 | 12-892491 | WASHER | 1 | ||||||
| 10 | 11-892165 | NUT | 1 | ||||||
| 11 | 884458T07 | DRIVESHAFT, Oil Pump | 1 | ||||||
| 12 | 25-8M0034912 | O-RING, 3.78 X 21.32 | 2 | ||||||
| 13 | 895063001 | INSERT, Plastic | 1 | ||||||
| 14 | 884418A1 | TENSIONER ASSEMBLY, Oil Pump Drive | 1 | ||||||
| 15 | 884446T04 | PUMP ASSEMBLY, Oil | 1 | ||||||
| 16 | 10-892455065 | SCREW | 5 | ||||||
| 17 | 892335001 | DEFLECTOR, Oil | 1 | ||||||
| 18 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel | 2 | ||||||
| 19 | 888819002 | DRAIN, Cowl | 2 | ||||||
| 20 | 25-888163 | GROMMET | 1 | ||||||
| 21 | 19-8M0027347 | PLUG, (M18 x 1.5) | 1 | ||||||
| 22 | 22-8M0092321 | FITTING, Dump | 1 | 896213 | |||||
| 23 | 25-8M0092943 | O-RING, (1.239 x .070) | 1 | 846594 | |||||
| 24 | 10-88552512 | SCREW, (M6 x 12 MM) Stainless Steel | 1 | ||||||
| 25 | 32-8M0087108 | HOSE, Vent-Lower | 1 | 8M0012200 | |||||
| 26 | 25-884546 | GROMMET | 1 | ||||||
| 27 | 888523001 | CLIP | 1 | ||||||
| 28 | 32-8M0087118 | HOSE, Fuel into Fuel Supply Module | 1 | 8M0043793 | |||||
| 29 | 25-884546 | GROMMET | 1 | ||||||
| 30 | 27-889617001 | GASKET | 1 | ||||||
| 31 | 32-8M0087121 | HOSE, Fuel-Vent | 1 | 8M0012201 | |||||
| 32 | 884545T01 | VENT CANISTER ASSEMBLY | 1 | ||||||
| 33 | 54-853947 | CLIP | 1 | ||||||
| 34 | 8M0081796 | VALVE ASSEMBLY, Fuel Line Purge | 1 | 895775A01 | |||||
| 35 | 25-884546 | GROMMET | 1 | ||||||
| 36 | 884456 | SPROCKET, Driven | 1 | ||||||
| - | 27-880552A07 | GASKET SET, Powerhead | 1 | ||||||
| - | 61-895247A07 | POWERHEAD ASSEMBLY | 1 |
