200 PRO VERADO 4-STROKE 6 CYL - Serial 2B034840 Thru 2B144122 - Water Separator Filter Kit, 886638A01

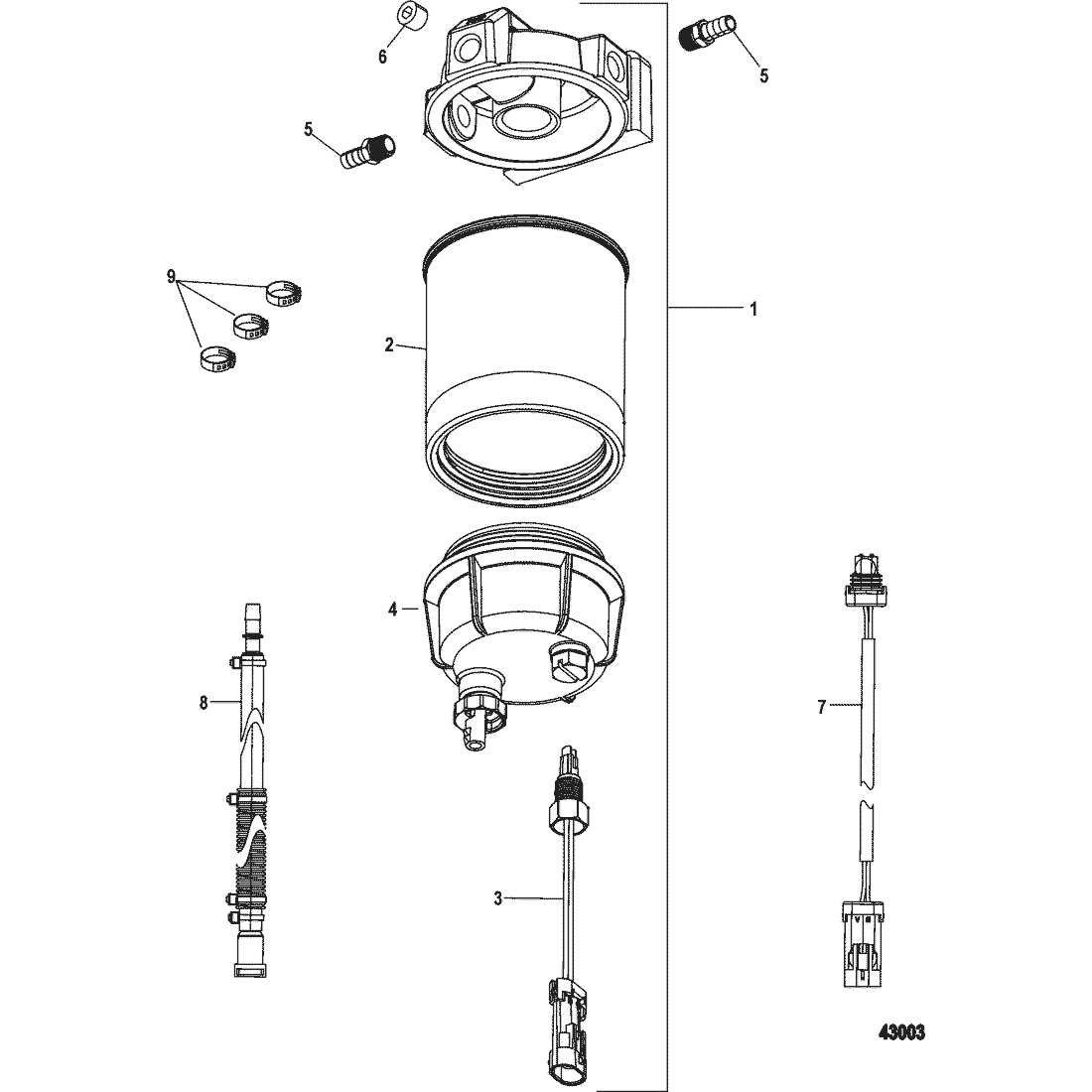

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 35-8M0114618         WATER SEPERATOR KIT 1 886638A01
1 8M0022130         SEPERATOR KIT, Fuel and Water 1
2 35-886638         ELEMENT, Fuel Filter 1
3 8M0021043         SENSOR ASSEMBLY, Fuel and Water 1
4 8M0021044         BOWL 1
5 22-34982         CONNECTOR 2
6 22-73379         PLUG, (.250-18) 1
7 84-8M0042697         HARNESS, Water Sensor 1
8 32-8M0044043         HOSE ASSEMBLY 1
9 54-855697         CLAMP 3
