200XS DFI 2.5L - Serial 1E000797 Thru 1E002110 - Air Handler Components

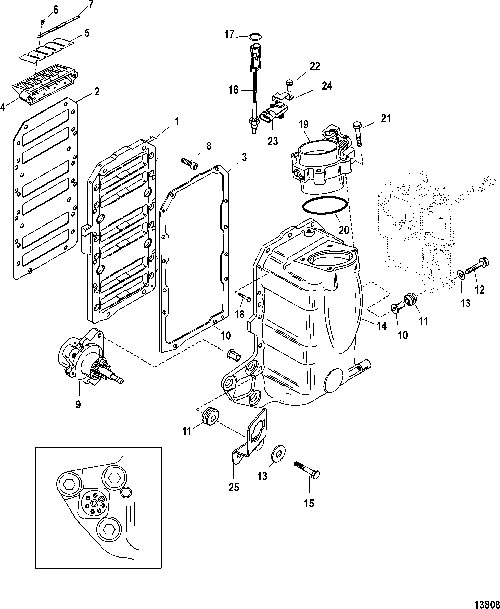

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses(S/N 1E050628 & Below)
- Air Hoses(SN 1E050629 & Above)
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 855633T32 | AIR HANDLER ASSEMBLY | 1 | ||||||
| 1 | 840396A04 | ADAPTOR PLATE KIT | 1 | ||||||
| 2 | 27-840484 | GASKET | 1 | ||||||
| 3 | 27-840485 | GASKET | 1 | ||||||
| 4 | 840805T2 | REED BLOCK | 6 | ||||||
| 5 | 34-840402A1 | REED PETAL KIT | 1 | ||||||
| 6 | 10-849038 | SCREW, (M3 x 5) | 60 | ||||||
| 7 | NSS | Reed Plate | 2 | Not Sold Separate | |||||
| 8 | 10-55715 | SCREW, (.250-20 x .880) | 12 | ||||||
| 9 | 8M0101629 | PUMP ASSEMBLY, Oil | 1 | 857149T2 | |||||
| 10 | 23-855364 | BUSHING | 6 | ||||||
| 11 | 25-855362001 | GROMMET | 6 | ||||||
| 12 | 10-81893435 | SCREW, (M8 x 35) | 3 | ||||||
| 13 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 6 | ||||||
| 14 | 850248T03 | PLENUM KIT, Air | 1 | ||||||
| 15 | 10-81893430 | SCREW, (M8 x 30) | 3 | ||||||
| 16 | 885342002 | SENSOR ASSEMBLY | 1 | 885342001 | |||||
| 17 | 25-896699 | O-RING, (.351 x .072) | 1 | 888814 | |||||
| 18 | 10-883942 | SCREW, (M4 x 16) | 2 | ||||||
| 19 | 855422A1 | THROTTLE BODY KIT | 1 | ||||||
| 20 | 25-855423 | O-RING | 1 | ||||||
| 21 | 10-82130040 | SCREW, (M6 x 40) | 4 | ||||||
| 22 | 10-1993716 | SCREW, (M6 x 16) | 1 | ||||||
| 23 | 854445 | SENSOR, MAP | 1 | ||||||
| 24 | 884522 | BRACKET, MAP Sensor | 1 | ||||||
| 25 | 892296 | BRACKET | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
