200XS DFI 2.5L - Serial 1E000797 Thru 1E002110 - Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster

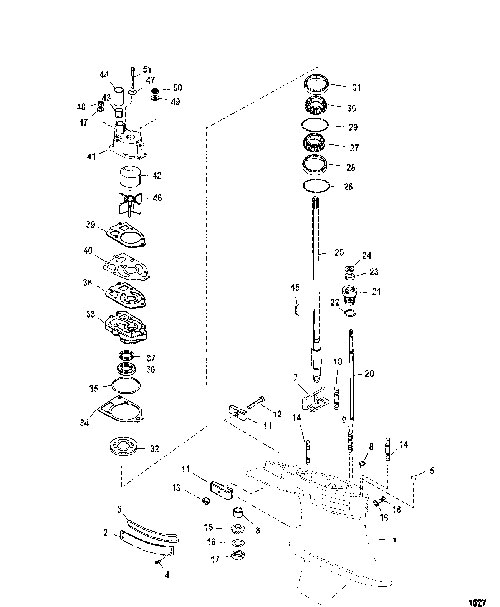

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses(S/N 1E050628 & Below)
- Air Hoses(SN 1E050629 & Above)
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 0 | 1687-840560T33 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| 0 | 1687-840560T34 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| 0 | 1687-840561T69 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| 0 | 1687-840561T70 | GEAR HOUSING ASSEMBLY, Complete | 1 | ||||||
| 1 | 1687-8M0083306 | GEAR HOUSING ASSEMBLY, Basic | 1 | 849780A2 | |||||
| 1 | 1687-8M0084203 | GEAR HOUSING ASSEMBLY, Basic | 1 | 849781A2 | |||||
| 2 | 8479504 | COVER | 2 | ||||||
| 3 | 25-34776 | O-RING | 2 | ||||||
| 4 | 10-815904 | SCREW, (#10-32 x .500) | 12 | ||||||
| 5 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 2 | ||||||
| 6 | 31-42647A1 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 7 | 8M0039169 | FILLER BLOCK | 1 | 67891 | |||||
| 8 | 22-847949 | PLUG, Pipe | 1 | ||||||
| 9 | 16-8M0034463 | STUD, (.312-18/.324-24 x 3.380) | 1 | 562972 | |||||
| 10 | 16-30667 | STUD, (.250-20/.250-28 x 3.125) | 2 | ||||||
| 11 | 97-826134Q | ANODE | 2 | ||||||
| 12 | 10-4000333 | SCREW, (M6 x 40) | 1 | ||||||
| 13 | 11-401386 | NUT, (M6) Stainless Steel | 1 | ||||||
| 14 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) | 3 | ||||||
| 14 | 16-786382 | STUD, (.437-14/.437-20 x 3.120) | 1 | ||||||
| 14 | 16-579203 | STUD, (.437-14/.437-20 x 2.060) | 2 | ||||||
| 15 | NSS | Pinion Gear | 1 | Not Sold Separate | |||||
| 16 | 12-92721 | WASHER | 1 | ||||||
| 17 | 11-35921 | NUT, (.625-18) | 1 | ||||||
| 18 | 10-79953Q04 | SCREW KIT, (.375-16 x .250) Drain | 1 | 79953Q2 | |||||
| 19 | 12-191833 | SEAL | 1 | ||||||
| 20 | 789022 | SHIFT SHAFT (LOWER) | 1 | ||||||
| 21 | 23-77631A2 | BUSHING ASSEMBLY | 1 | ||||||
| 22 | 25-25439 | O-RING, (.862 x .103) | 1 | ||||||
| 23 | 26-8164641 | SEAL, Oil | 1 | ||||||
| 24 | 12-77674 | WASHER | 1 | ||||||
| 25 | 45-848449A4 | DRIVESHAFT ASSEMBLY | 1 | ||||||
| 25 | 45-848449A5 | DRIVESHAFT ASSEMBLY | 1 | ||||||
| 26 | 15-8M0063268 | SHIM ASSEMBLY | 1 | No Longer Available | |||||
| 27 | 31-48939A2 | BEARING, Tapered Roller | 1 | ||||||
| 28 | NSS | Cup-Roller Bearing | 1 | Not Sold Separate | |||||
| 29 | 15-8M0063267 | SHIM SET | AR | No Longer Available | |||||
| 30 | 31-36387A1 | BEARING ASSEMBLY, Roller/Cup | 1 | ||||||
| 31 | NSS | Cup-Bearing | 1 | Not Sold Separate | |||||
| 32 | 8245191 | RETAINER | 1 | ||||||
| 33 | 46-44292A3 | BASE ASSEMBLY, Water Pump | 1 | ||||||
| 34 | 27-426311 | GASKET | 1 | ||||||
| 35 | 25-896523 | O-RING, (2.175 x .175) | 1 | 90011 | |||||
| 36 | 26-89238 | SEAL, Oil | 1 | ||||||
| 37 | 26-16977 | SEAL, Oil | 1 | ||||||
| 38 | 27-18051 | GASKET (LOWER) | 1 | ||||||
| 39 | 27-858524 | GASKET (UPPER) | 1 | ||||||
| 40 | 324351 | FACE PLATE | 1 | ||||||
| 41 | 46-96148A8 | BODY ASSEMBLY, Water Pump | 1 | ||||||
| 42 | 48752T | INSERT | 1 | ||||||
| 43 | 26-38970 | SEAL | 1 | ||||||
| 44 | 23-29804T | SLEEVE | 1 | ||||||
| 45 | 28-8M0032834 | KEY | 1 | 56654 | |||||
| 46 | 47-89984T4 | IMPELLER | 1 | ||||||
| 47 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 48 | 11-8267119 | NUT, (.250-28) | 2 | ||||||
| 49 | 12-36001 | WASHER | 1 | ||||||
| 50 | 11-13436 | NUT | 1 | ||||||
| 51 | 10-96411 | SCREW, (#14-8 x 2.25) | 1 | ||||||
| - | 26-89238A3 | SEAL KIT, Gear Housing | 1 | ||||||
| - | 27-881805A01 | GASKET SET, Engine | 1 | ||||||
| - | 56-59579 | STUD KIT | 1 | No Longer Available |
