200XS DFI 2.5L - Serial 1E000797 Thru 1E002110 - Crankshaft, Pistons and Connecting Rods

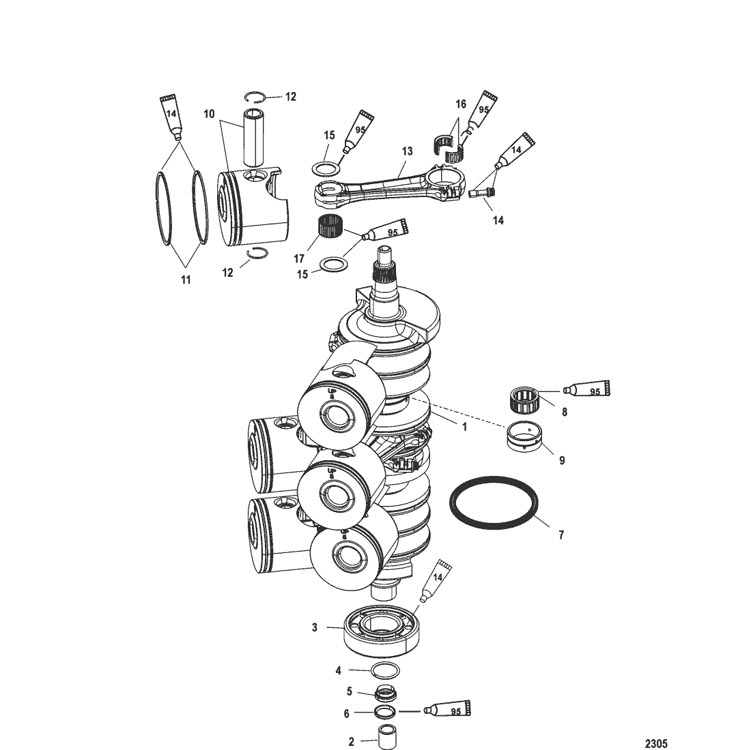

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses(S/N 1E050628 & Below)
- Air Hoses(SN 1E050629 & Above)
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 455-850690T2 | CRANKSHAFT ASSEMBLY | 1 | ||||||
| 2 | 78662 | WEAR SLEEVE | 1 | ||||||
| 3 | 30-67923T | BEARING, Ball (LOWER) | 1 | ||||||
| 4 | 53-67446 | RING | 1 | ||||||
| 5 | 54196A6 | CARRIER ASSEMBLY | 1 | ||||||
| 6 | 65800 | PACKING | 1 | ||||||
| 7 | 39-67377T | RING, Sealing | 7 | 67377 | |||||
| 8 | 31-16756A6 | BEARING KIT | 2 | ||||||
| 9 | NSS | Bearing Race | 2 | Not Sold Separate | |||||
| 10 | 785-854687T5 | PISTON | 3 | ||||||
| 10 | 785-854686T5 | PISTON | 3 | ||||||
| 11 | 39-840684A12 | RING SET, Piston (12 Rings per Set) | 1 | ||||||
| 12 | 53-857196 | LOCK RING | 12 | ||||||
| 13 | 644-8M0081411 | CONNECTING ROD ASSEMBLY | 6 | ||||||
| 14 | 10-763491 | SCREW, (.312-24 x .875) | 12 | ||||||
| 15 | 12-8M0012298 | WASHER | 12 | 812876 | |||||
| 16 | 31-8M0082405 | BEARING KIT | 6 | ||||||
| 17 | 29-822553 | BEARING, Needle | 174 | ||||||
| - | 27-881805A01 | GASKET SET, Engine | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
