200XS DFI 2.5L - Serial 1E000797 Thru 1E002110 - Oil Injection Components

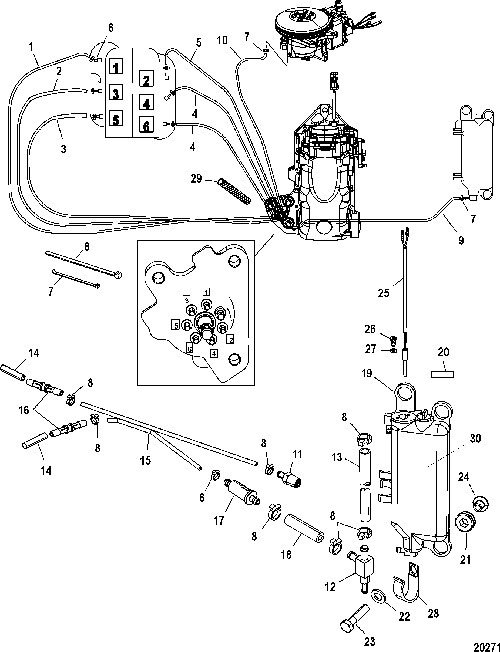

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses(S/N 1E050628 & Below)
- Air Hoses(SN 1E050629 & Above)
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 24 Inches) | 1 | 85606065 | |||||
| 2 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 18.5 Inches) | 1 | 85606065 | |||||
| 3 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 15.5 Inches) | 1 | 85606065 | |||||
| 4 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 24.5 Inches) | 2 | 85606065 | |||||
| 5 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 27 Inches) | 1 | 85606065 | |||||
| 6 | 21-858805 | CHECK VALVE | 6 | ||||||
| 7 | 69355 | TIE STRAP, (5.50 Inches) | AR | ||||||
| 8 | 54-816311T | TIE STRAP, (8.00 Inches) | AR | ||||||
| 8 | 56762 | TIE STRAP, (4.00 Inches) | AR | ||||||
| 9 | 32-892830053 | HOSE, (24.00 Inches Braided) | 1 | ||||||
| 10 | 32-8M0054213 | HOSE, (40.00 Inches Bulk) (Cut to 32 Inches) | 1 | 85583466 | |||||
| 11 | 21-8781051 | CHECK VALVE | 1 | ||||||
| 12 | 22-424254 | FITTING | 1 | ||||||
| 13 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 6 Inches) | 1 | 830756109 | |||||
| 14 | NSS | Cap | 2 | Not Sold Separate | |||||
| 15 | 32-875289 | HOSE | 1 | ||||||
| 16 | 22-858955 | CONNECTOR | 2 | ||||||
| 17 | 35-875284T01 | FILTER, Oil - In Line | 1 | 875284001 | |||||
| 18 | 32-875283 | HOSE, (2.00 Inches) | 1 | ||||||
| 19 | 8M0063190 | RESERVOIR ASSEMBLY | 1 | 833069T9 | |||||
| 20 | NSS | Decal-Warning-Oil Overflow | 1 | Not Sold Separate | |||||
| 21 | 25-855362001 | GROMMET | 3 | ||||||
| 22 | 12-49436 | WASHER | 3 | ||||||
| 23 | 10-60411 | SCREW, (.312-18 x 1.250) | 3 | ||||||
| 24 | 23-855364 | BUSHING | 3 | ||||||
| 25 | 87-856156T02 | SWITCH ASSEMBLY | 1 | 856156A2 | |||||
| 26 | 10-58376 | SCREW, (.164-18 x .375) | 1 | ||||||
| 27 | 12-72761 | WASHER, (.203 x .562 x .060) Stainless Steel | 1 | ||||||
| 28 | 54-814634 | CLAMP | 1 | ||||||
| 29 | 32-883357 | CONDUIT | 1 | No Longer Available | |||||
| 30 | NSS | Decal-Oil Recommendation | 1 | Not Sold Separate | |||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
