200XS DFI 2.5L - Serial 1E000797 Thru 1E002110 - Bottom Cowl

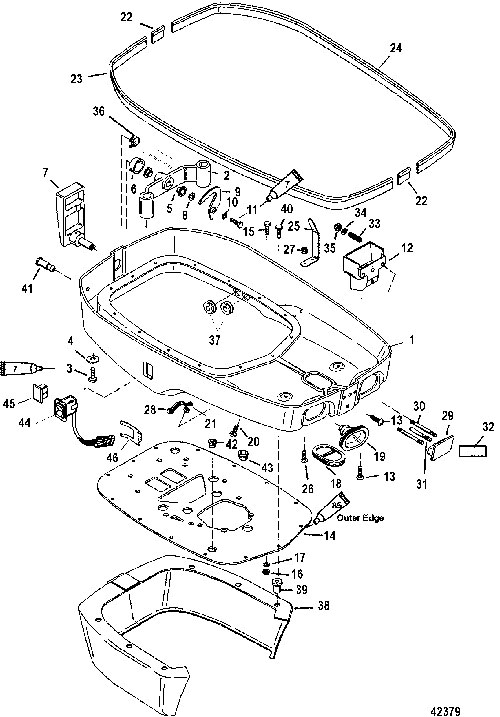

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses(S/N 1E050628 & Below)
- Air Hoses(SN 1E050629 & Above)
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 107-849479T7 | BOTTOM PAN | 1 | ||||||
| 1 | 107-849479T08 | BOTTOM PAN | 1 | ||||||
| 2 | 848810 | BRACKET, Latch | 1 | ||||||
| 3 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 2 | ||||||
| 4 | 12-814806 | 700-21662 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | |||||
| 5 | 23-812707 | BUSHING | 2 | ||||||
| 6 | 848985 | SEAL | 1 | ||||||
| 7 | 848815T1 | HANDLE | 1 | ||||||
| 8 | 13-F2047 | WASHER, Wave | 1 | ||||||
| 9 | 8M0001081 | CAM | 1 | 889566 | |||||
| 10 | 12-4002316 | WASHER | 1 | ||||||
| 11 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 12 | 849830T1 | LATCH | 1 | ||||||
| 13 | 10-849011 | SCREW, (.250-20 x .750) | 2 | ||||||
| 14 | 8M0042805 | PLATE | 1 | 8404031 | |||||
| 14 | 8M0042805 | PLATE | 1 | ||||||
| 15 | 10-38601 | SCREW, (.250-28 x 1.250) | 14 | ||||||
| 16 | 11-826709109 | NUT, (.250-28) Stainless Steel | 14 | ||||||
| 17 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 14 | ||||||
| 18 | 25-849750 | GROMMET | 1 | ||||||
| 19 | 25-8177133 | GROMMET | 2 | ||||||
| 20 | 10-690201 | SCREW, (#10-32 x .875) | 2 | ||||||
| 21 | 11-826709106 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 22 | 8M0043399 | SEAL | 2 | 849767 | |||||
| 23 | 8M0043398 | SEAL | 1 | 849766 | |||||
| 24 | 8M0043397 | SEAL | 1 | 849765 | |||||
| 25 | 8496191 | BRACE | 2 | ||||||
| 26 | 10-849011 | SCREW, (.250-20 x .750) | 4 | ||||||
| 27 | 11-8267098 | NUT, (.250-20) Stainless Steel | 4 | ||||||
| 28 | 88621 | RETAINER | 1 | No Longer Available | |||||
| 29 | 849831A1 | LATCH HANDLE ASSEMBLY | 1 | ||||||
| 30 | 16-843118 | STUD, (.250-20 x 3.45) | 2 | ||||||
| 31 | 849832 | PIN | 1 | ||||||
| 32 | NSS | Decal | 1 | Not Sold Separate | |||||
| 33 | 24-842776 | SPRING, (.420 Outside Diameter) | 2 | ||||||
| 34 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 35 | 11-8267098 | NUT, (.250-20) Stainless Steel | 2 | ||||||
| 36 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 | ||||||
| 37 | 25-8M0058484 | GROMMET | 2 | 840404 | |||||
| 38 | 108-840228A1 | SKIRT | 1 | No Longer Available | |||||
| 39 | 11-849000 | NUT | 6 | ||||||
| 40 | 10-F2030 | SCREW, (.250-20 x 1.250) Stainless Steel | 6 | ||||||
| 41 | 22-76256 | NOZZLE | 1 | ||||||
| 42 | 25-12602002 | GROMMET | 1 | ||||||
| 43 | 25-57009001 | GROMMET | 1 | ||||||
| 44 | 87-8M0042300 | SWITCH, Trim | 1 | 896620001 | |||||
| 45 | 812830T01 | PLUG, Trim Switch | 1 | ||||||
| 46 | 8M0032848 | RETAINER | 1 |
