200XS DFI 2.5L - Serial 1E000797 Thru 1E002110 - Air Handler/Flywheel Cover

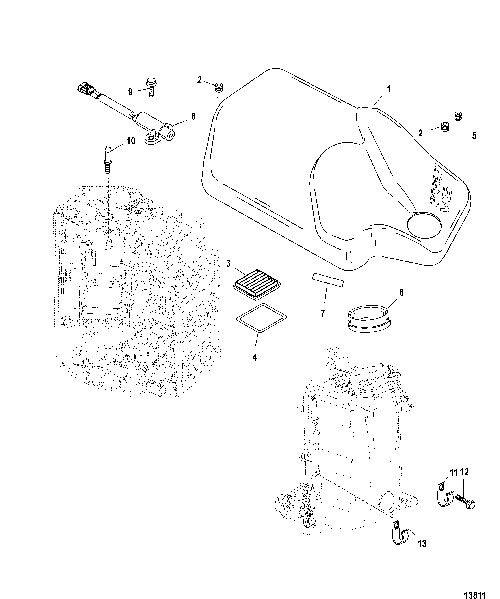

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 827325A10         COVER ASSEMBLY, Flywheel 1
- 8M0059111         COVER ASSEMBLY, Flywheel 1 8M0042625
1 NSS         FLYWHEEL COVER 1   Not Sold Separate
2 25-821555001         GROMMET 2
3 35-853333T         FILTER 1
4 853352         COVER 1
5 25-857101         GROMMET 1
6 25-855613         GROMMET 1
7 37-881865         DECAL, Caution-Start in Gear 1
8 8M0082988         SENSOR 1 8283582
9 10-40011107         SCREW, (M5 x 16) Stainless Steel 2
10 8215832         PIN, Special (1.5 Inches) 1
11 54-883080         J CLIP 2
12 10-817504         SCREW, (.250-20 x 1.500) Stainless Steel 12
13 54-55098         J CLIP 1
- 61-883201A01         POWERHEAD ASSEMBLY 1   No Longer Available
