200XS DFI 2.5L - Serial 1E000797 Thru 1E002110 - Driveshaft Housing

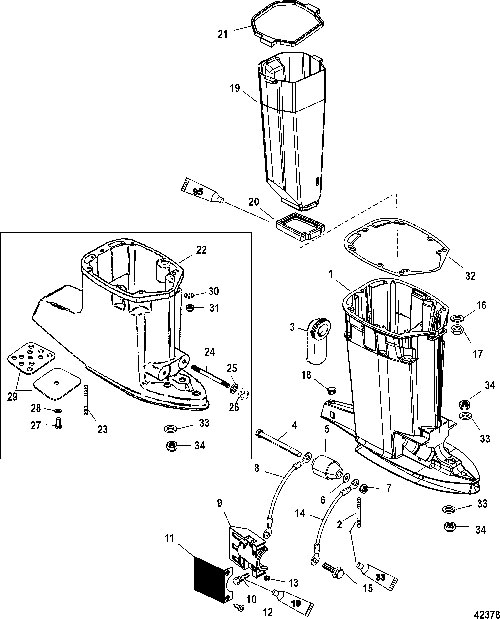

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses(S/N 1E050628 & Below)
- Air Hoses(SN 1E050629 & Above)
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1590-8343T10 | HOUSING ASSEMBLY, Driveshaft - Black - Long | 1 | ||||||
| 2 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) (Long) | 2 | ||||||
| 3 | 849330 | BOOT, Idle Exhaust (Long) | 1 | ||||||
| 4 | 10-898831 | SCREW, (.500-20 x 6.00) (Long) | 2 | 63474 | |||||
| 5 | 816054T1 | MOUNT, Lower (Long) | 2 | ||||||
| 6 | 12-816056 | WASHER (Long) | 4 | ||||||
| 7 | 11-898832 | NUT, (.500-20) (Long) | 2 | 82670817 | |||||
| 8 | 88238A10 | CABLE ASSEMBLY, Ground (Long) | 1 | ||||||
| 9 | 54-8M0036782 | CLAMP (Long) | 2 | 67076 | |||||
| 10 | 10-66727 | SCREW, (.312-18 x 1.250) (Long) | 4 | ||||||
| 11 | 8M4500752 | COVER, Black (Long) | 2 | 67077T | |||||
| 12 | 10-88417 | SCREW, (#12-24 x .620) (Long) | 4 | ||||||
| 13 | 11-35521 | NUT (Long) | 4 | ||||||
| 14 | 88238A10 | CABLE ASSEMBLY, Ground (Long) | 1 | ||||||
| 15 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel (Long) | 1 | ||||||
| 16 | 12-822838 | WASHER, (.401 x .745 x .097) (Long) | 10 | ||||||
| 17 | 11-46335 | NUT, (.375-24) (Long) | 10 | ||||||
| 18 | 19-64649 | PLUG (Long) | 1 | ||||||
| 19 | 18276T | TUBE, Exhaust (Long) | 1 | 18276 | |||||
| 20 | 66350001 | SEAL (Lower)(Long) | 1 | ||||||
| 21 | 8M0039076 | SEAL (Upper)(Long) | 1 | 177261 | |||||
| 22 | 1581-818900T24 | HOUSING, Driveshaft (Short) | 1 | ||||||
| 23 | 16-59579 | STUD, (.437-14/.437-20 x 2.812) (Short) | 2 | ||||||
| 24 | 16-818908 | STUD, (.500-13/.500-20 x 4.120) (Short) | 2 | ||||||
| 25 | 12-816056 | WASHER (Short) | 2 | ||||||
| 26 | 11-898832 | NUT, (.500-20) (Short) | 2 | 82670817 | |||||
| 27 | 10-39349 | SCREW, (.312-18 x .750) Stainless Steel (Short) | 1 | ||||||
| 28 | 12-847539 | WASHER (Short) | 1 | ||||||
| 29 | 8189091 | PLATE, Exhaust Blockoff (Short) | 1 | ||||||
| 29 | 818909 | PLATE, Exhaust Blockoff | 1 | ||||||
| 30 | 12-822838 | WASHER, (.401 x .745 x .097) (Short) | 10 | ||||||
| 31 | 11-826709113 | NUT, (.375-24) Stainless Steel (Short) | 2 | ||||||
| 31 | 11-82671013 | NUT, (.375-24) Stainless Steel (Short) | 8 | ||||||
| 32 | 27-991734 | GASKET (Long) | 1 | ||||||
| 33 | 12-822836 | WASHER, (.445 x .805 x .108) | 3 | ||||||
| 34 | 11-859116 | NUT, (.437-20) | 3 | ||||||
| - | 27-881805A01 | GASKET SET, Engine | 1 |
