200XS DFI 2.5L - Serial 1E000797 Thru 1E002110 - Vapor Separator Components

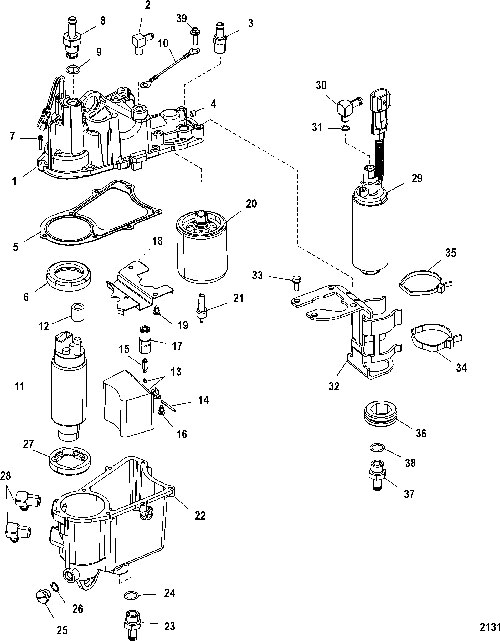

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses(S/N 1E050628 & Below)
- Air Hoses(SN 1E050629 & Above)
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 855432A06 | COVER KIT | 1 | 855432T05 | |||||
| 2 | 22-8554246 | FITTING | 1 | No Longer Available | |||||
| 3 | 22-881740 | FITTING, Straight | 1 | ||||||
| 4 | 19-883208 | PLUG | 1 | ||||||
| 5 | 27-883252 | GASKET | 1 | ||||||
| 6 | 26-803878 | SEAL, Pump | 1 | ||||||
| 7 | 1395-808612 | SCREW AND WASHER, (#8-32 x .750) | 7 | ||||||
| 8 | 22-885186A1 | FITTING KIT | 1 | ||||||
| 9 | 25-831985 | O-RING, (.468 x .078) | 1 | ||||||
| 10 | 84-881831 | WIRE ASSEMBLY | 1 | ||||||
| 11 | 855427A1 | PUMP KIT | 1 | ||||||
| 12 | 23-8M6000589 | SLEEVE | 1 | 855428 | |||||
| 13 | 855430A1 | FLOAT KIT | 1 | ||||||
| 14 | F10064 | SHAFT | 1 | ||||||
| 15 | 855431 | VALVE, Needle | 1 | ||||||
| 16 | 10-883223 | SCREW, (M6 x 16) | 1 | ||||||
| 17 | 883247A02 | SEAT/VALVE | 1 | ||||||
| 18 | 889318002 | BAFFLE | 1 | 883260 | |||||
| 19 | 10-883223 | SCREW, (M6 x 16) | 3 | ||||||
| 20 | 35-18458T4 | FILTER KIT | 1 | ||||||
| 21 | 8285861 | PROBE | 1 | ||||||
| 22 | 855434T04 | BOWL KIT | 1 | ||||||
| 23 | 22-880862A1 | FITTING KIT | 1 | ||||||
| 24 | 25-880863 | O-RING | 1 | ||||||
| 25 | 19-855435A1 | PLUG KIT | 1 | ||||||
| 26 | 25-8M0062785 | O-RING | 1 | 883209 | |||||
| 27 | 26-8554331 | SEAL, Pump | 1 | ||||||
| 28 | 22-8554245 | ELBOW | 2 | No Longer Available | |||||
| 29 | 8M0047624 | PUMP ASSEMBLY | 1 | 8558432 | |||||
| 30 | 22-855802A1 | ELBOW | 1 | ||||||
| 31 | 25-883551 | O-RING | 1 | ||||||
| 32 | 855756A1 | BRACKET KIT | 1 | No Longer Available | |||||
| 33 | 10-1993716 | SCREW, (M6 x 16) | 4 | ||||||
| 34 | 54-850181 | TIE STRAP, (11.750 Inches) | 1 | ||||||
| 35 | 54-816311T | TIE STRAP, (8.00 Inches) | 10 | ||||||
| 36 | 25-856928 | GROMMET | 1 | No Longer Available | |||||
| 37 | 22-880862A1 | FITTING KIT | 1 | ||||||
| 38 | 25-880863 | O-RING | 1 | ||||||
| 39 | 10-82130010 | SCREW, (M6 x 10) | 1 |
