200XS DFI 2.5L - Serial 1E000797 Thru 1E002110 - Oil Lines

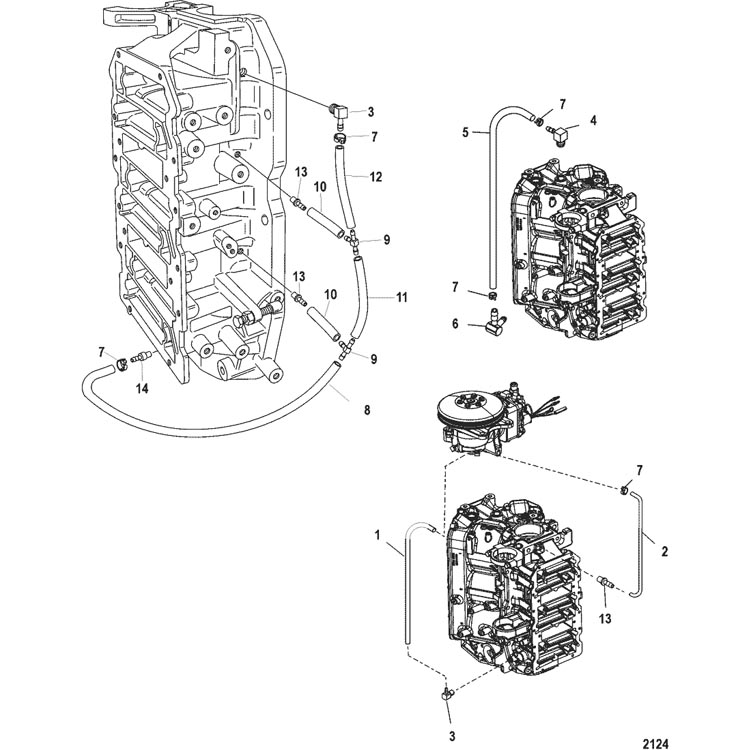

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler Components
- Air Handler/Flywheel Cover
- Air Hoses(S/N 1E050628 & Below)
- Air Hoses(SN 1E050629 & Above)
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Cylinder Head
- Driveshaft Housing
- Dual Cable Attaching Kit
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gasket Set Components, Complete Powerhead and Lower Unit
- Gear Housing(Drive) Standard/Counter Rotatation-Sportmaster
- Gear Housing(Driveshaft-Torque Master)
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Power Trim Components
- Starter Motor
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Trim Pump and Mounting Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 30 IN.) | 1 | 85606065 | |||||
| 2 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 22-1/2 IN.) | 1 | 85606065 | |||||
| 3 | 22-887801 | FITTING, Elbow 90 Degree (.0625-27) | 2 | ||||||
| 4 | 21-8592352 | CHECK VALVE, 90 Degree (.0625-27) | 2 | ||||||
| 5 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 16-1/2 IN.) | 2 | 85606065 | |||||
| 6 | 22-151333 | FITTING | 2 | ||||||
| 7 | 69355 | TIE STRAP, (5.50 Inches) | AR | ||||||
| 8 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 22 IN.) | 1 | 85606065 | |||||
| 9 | 22-59169003 | FITTING, Tee | 2 | 591692 | |||||
| 10 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 1-1/2 IN.) | 2 | 85606065 | |||||
| 11 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 4 -3/4 IN.) | 1 | 85606065 | |||||
| 12 | 32-8M0054152 | TUBING, (38.00 Inches Bulk) (Cut to 3-1/2 IN.) | 1 | 85606065 | |||||
| 13 | 21-426233 | CHECK VALVE | 3 | ||||||
| 14 | 21-426982 | CHECK VALVE | 1 | ||||||
| - | 61-883201A01 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
